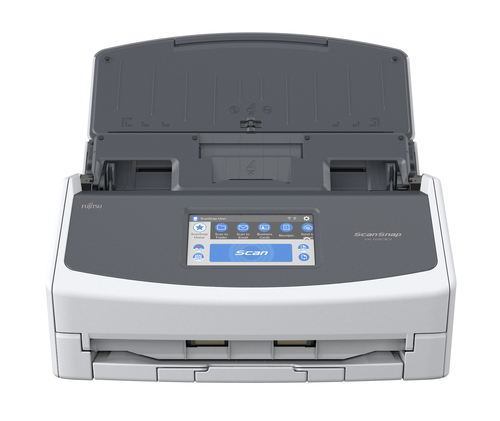

ScanSnap iX1600
Model ScanSnap iX1600Part no. PA03770-B615EAN 097564309717
43 specifications
- Display10.9 cm (4.3")
- Weight3.4 kg
- ColourGrey, White
- Maximum scan size216 x 360 mm
- Scanner typeADF + Manual feed scanner
- Sensor typeColour CIS
Overview
- Display
- 10.9 cm (4.3")
- Weight
- 3.4 kg
- Colour
- Grey, White
- Maximum scan size
- 216 x 360 mm
- Scanner type
- ADF + Manual feed scanner
- Sensor type
- Colour CIS
- Brand
- Fujitsu
- Category
- Scanner
- Model
- ScanSnap iX1600
- Part numbers
- PA03770-B615, PA03770-B635
- EAN / UPC
- 097564309717, 097564309731
- Also known as
- Fujitsu ScanSnap iX1600 ADF + Manual feed scanner 600 x 600 DPI A4 Grey, White
Specifications
43 specifications in 13 groups
Scanning
| Specification | Value |
|---|---|
| Maximum scan size | 216 x 360 mm |
| Optical scanning resolution | 600 x 600 DPI |
| Colour scanning | Yes |
| Duplex scanning | Yes |
| ADF scan speed (b/w, A4) | 600 ppm |
Design
| Specification | Value |
|---|---|
| Scanner type | ADF + Manual feed scanner |
| Built-in display | Yes |
| Product colour | Grey, White |
| Display | TFT |
| Display diagonal | 10.9 cm (4.3") |
| Touchscreen | Yes |
Performance
| Specification | Value |
|---|---|
| Sensor type | Colour CIS |
| Light source | RGB LED |
| Scan file formats | JPG, PDF |
| Scan drivers | ISIS, ScanSnap, TWAIN |
Input capacity
| Specification | Value |
|---|---|
| Standard input capacity | 50 sheets |
Paper handling
| Specification | Value |
|---|---|
| Maximum ISO A-series paper size | A4 |
| Scanning media types supported | Business Card, Post Card(JPN) |
| ISO A-series sizes (A0...A9) | A3, A4, A5 |
| ISO B-series sizes (B0...B9) | B4, B5, B6 |
| Legal | Yes |
| Letter | Yes |
| Card thickness (max) | 0.76 mm |
| Auto Document Feeder (ADF) media weight | 0 - 80 g/m² |
Ports & interfaces
| Specification | Value |
|---|---|
| USB port | Yes |
| USB version | 2.0/3.2 Gen 1 (3.1 Gen 1) |
| USB connector type | USB Type-B |
Network
| Specification | Value |
|---|---|
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
Power
| Specification | Value |
|---|---|
| Power supply type | AC |
| AC input frequency | 50 - 60 Hz |
| Input voltage | 100 - 240 V |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 292 mm |
| Depth | 161 mm |
| Height | 152 mm |
| Weight | 3.4 kg |
Packaging data
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
Sustainability
| Specification | Value |
|---|---|
| Sustainability certificates | ENERGY STAR |
| Sustainability compliance | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 5 - 35 °C |
| Operating relative humidity (H-H) | 20 - 80% |
Other features
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
| Certification | CE, RoHS |
