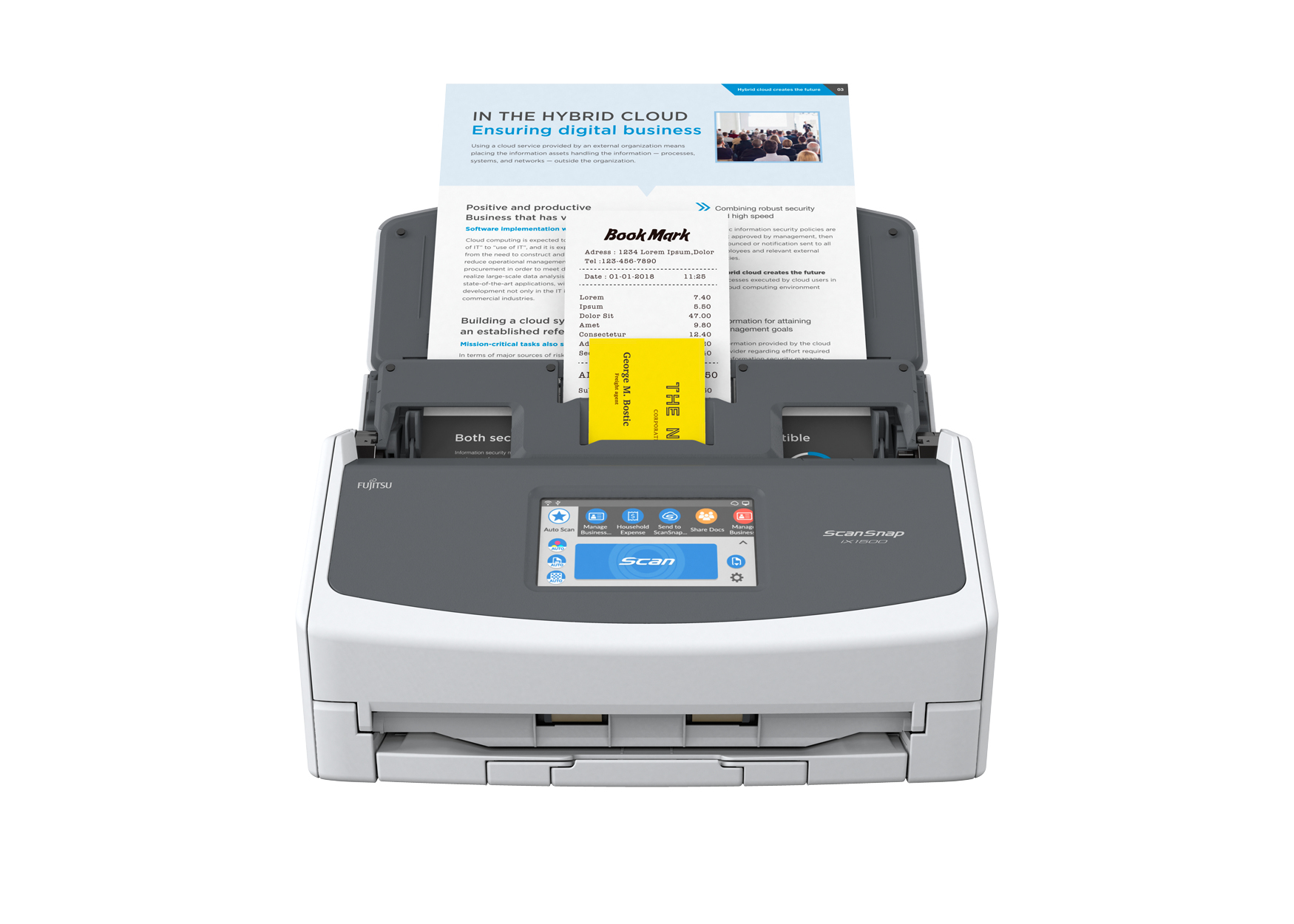

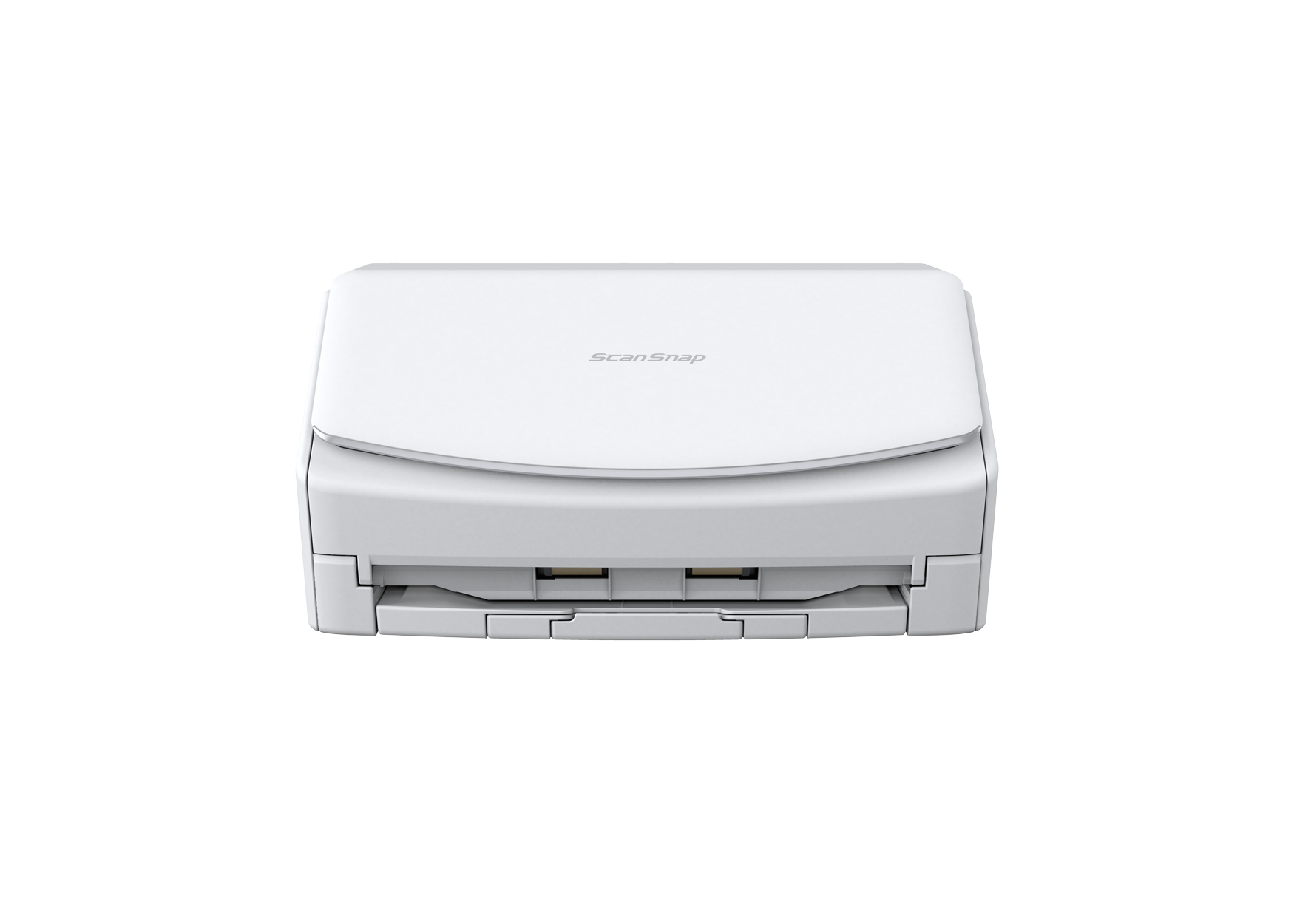

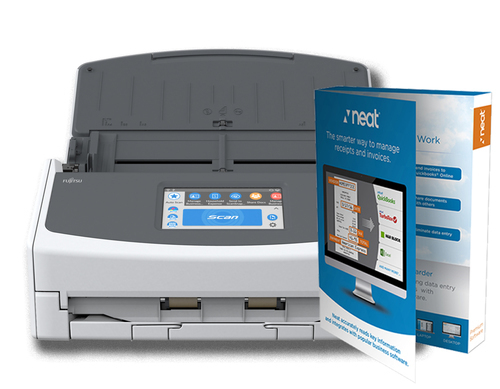

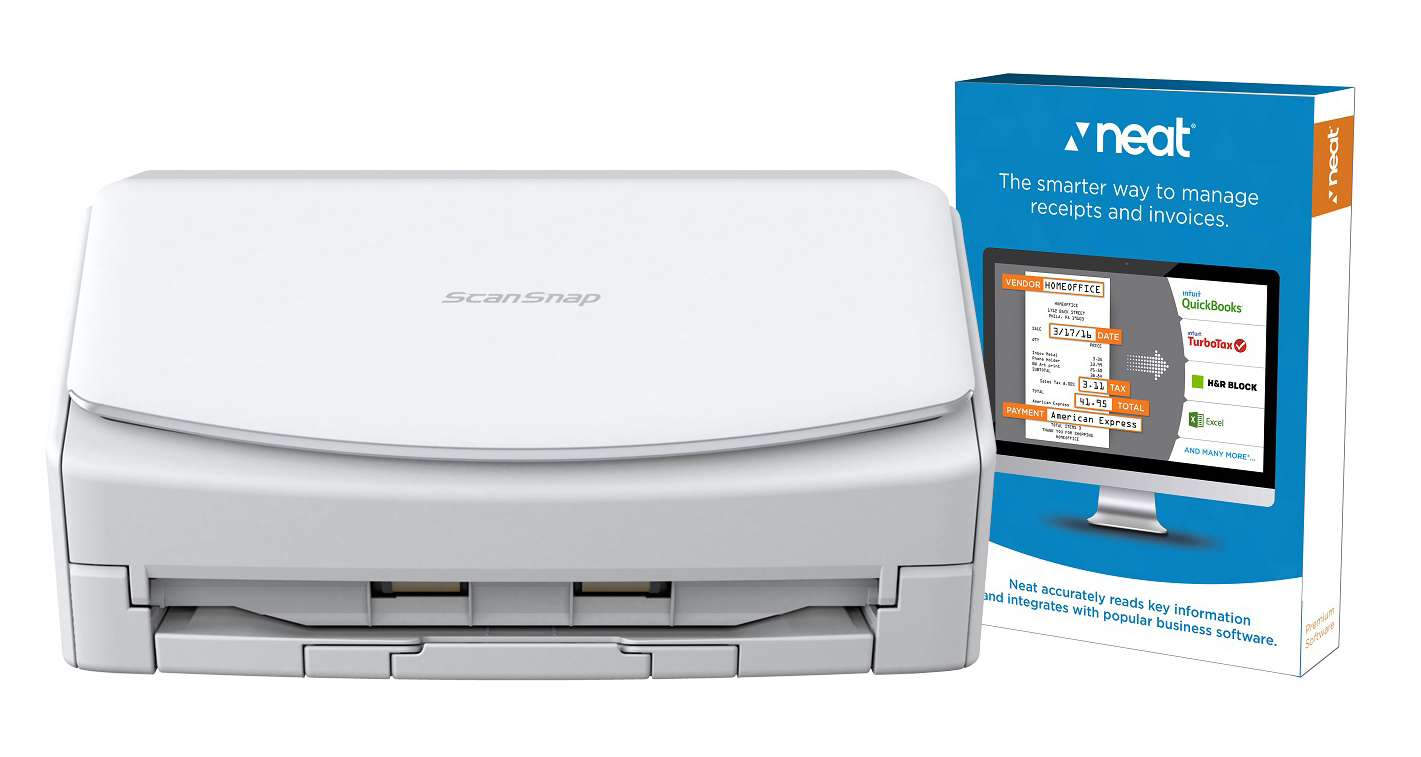

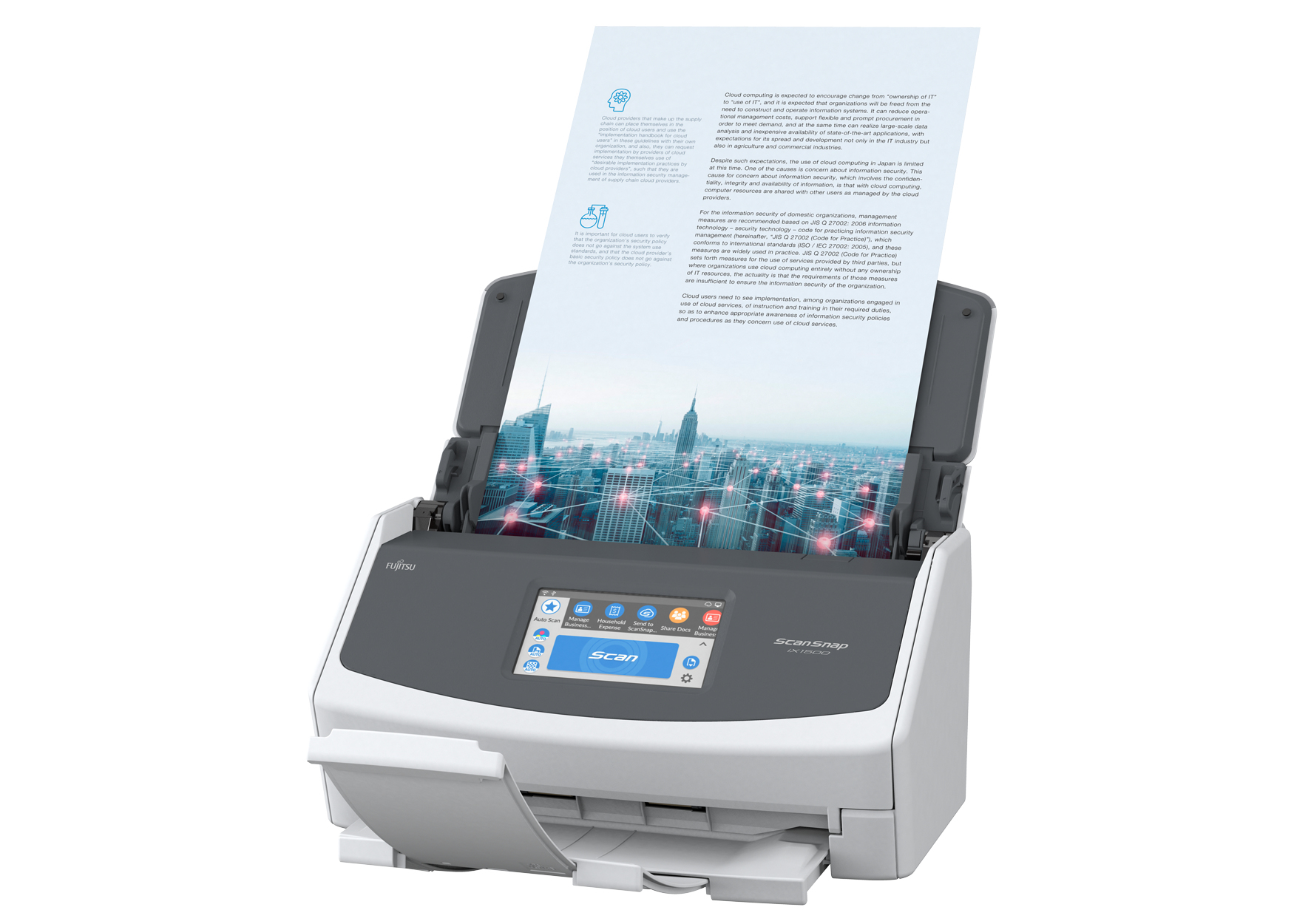

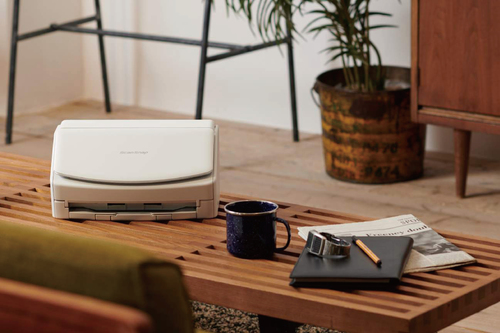

ScanSnap iX1500 + NEAT
Model ScanSnap iX1500 + NEATPart no. PA03770-B005-NEAT
55 specifications
- Display10.9 cm (4.3")
- Weight3.4 kg
- ColourWhite
- Maximum scan size216 x 3000 mm
- Scanner typeADF + Manual feed scanner
- Sensor typeColour CIS
Overview
- Display
- 10.9 cm (4.3")
- Weight
- 3.4 kg
- Colour
- White
- Maximum scan size
- 216 x 3000 mm
- Scanner type
- ADF + Manual feed scanner
- Sensor type
- Colour CIS
- Brand
- Fujitsu
- Category
- Scanner
- Model
- ScanSnap iX1500 + NEAT
- Part number
- PA03770-B005-NEAT
- Also known as
- Fujitsu ScanSnap iX1500 + NEAT ADF + Manual feed scanner 600 x 600 DPI A4 White
Specifications
55 specifications in 15 groups
Scanning
| Specification | Value |
|---|---|
| Maximum scan size | 216 x 3000 mm |
| Optical scanning resolution | 600 x 600 DPI |
| Colour scanning | Yes |
| Duplex scanning | Yes |
| ADF scan speed (b/w, A4) | 30 ppm |
| Duplex ADF scan speed (b/w, A4) | 60 ipm |
| Black/white scanning colour modes | Grayscale, Monochrome |
Design
| Specification | Value |
|---|---|
| Scanner type | ADF + Manual feed scanner |

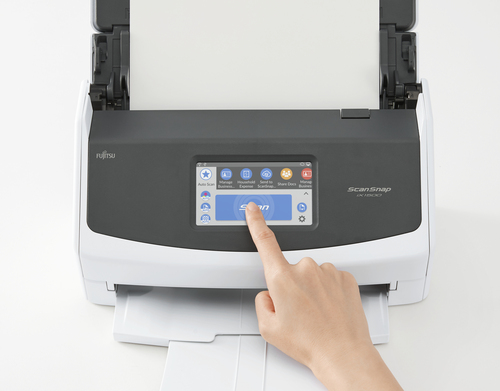

| Built-in display | Yes |
| Product colour | White |
| Display | TFT |
| Display diagonal | 10.9 cm (4.3") |
| Touchscreen | Yes |
| Colour display | Yes |
Performance
| Specification | Value |
|---|---|
| Sensor type | Colour CIS |
| Light source | RGB LED |
| Scan to | Cloud |
| Scan drivers | ScanSnap |
| Ultrasonic double sheet detection | Yes |
Input capacity
| Specification | Value |
|---|---|
| Auto document feeder (ADF) input capacity | 50 sheets |
Paper handling
| Specification | Value |
|---|---|
| Maximum ISO A-series paper size | A4 |
| Scanning media types supported | Plain paper, Plastic Card |
| Long-paper mode | Yes |
| Multi feed detection | Yes |
| ISO A-series sizes (A0...A9) | A4 |
| ISO B-series sizes (B0...B9) | B4 |
| ID-card slot | Yes |
| Legal | Yes |
| Card thickness (max) | 0.76 mm |
| Maximum scan length | 3 m |
Ports & interfaces
| Specification | Value |
|---|---|
| USB port | Yes |
| USB version | 3.2 Gen 2 (3.1 Gen 2) |
| USB connector type | USB Type-B |
Network
| Specification | Value |
|---|---|
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| Security algorithms | 64-bit WEP, 128-bit WEP, WPA, WPA-AES, WPA-TKIP, WPA2, WPA2-AES, WPA2-PSK, WPA2-TKIP |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 17 W |
| Power supply type | AC |
| AC input frequency | 50 - 60 Hz |
| Sleep mode | Yes |
| Input voltage | 100 - 240 V |
| Power consumption (sleep) | 1.6 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 292 mm |
| Depth | 161 mm |
| Height | 152 mm |
| Weight | 3.4 kg |
Packaging data
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
Packaging content
| Specification | Value |
|---|---|
| Cables included | AC, USB |
Sustainability
| Specification | Value |
|---|---|
| Sustainability certificates | ENERGY STAR |
System requirements
| Specification | Value |
|---|---|
| Mac operating systems supported | Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra |
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 5 - 35 °C |
| Operating relative humidity (H-H) | 20 - 80% |
Other features
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
| Certification | CE, RoHS |
