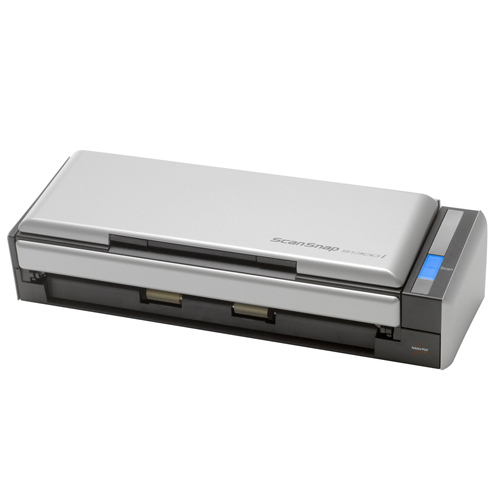

PA03643-B005-RF scanner ADF scanner
600 x 600 DPI A4 Black, Grey
Model PA03643-B005-RF
40 specifications
- Weight1.4 kg
- ColourBlack, Grey
- Optical scanning resolution600 x 600 DPI
- Scanner typeADF scanner
- Sensor typeCIS
- Standard input capacity12 sheets
Overview
- Weight
- 1.4 kg
- Colour
- Black, Grey
- Optical scanning resolution
- 600 x 600 DPI
- Scanner type
- ADF scanner
- Sensor type
- CIS
- Standard input capacity
- 12 sheets
- Brand
- Fujitsu
- Category
- Scanner
- Model
- PA03643-B005-RF
- Part number
- PA03643-B005-RF
- Also known as
- Fujitsu PA03643-B005-RF scanner ADF scanner 600 x 600 DPI A4 Black, Grey
Specifications
40 specifications in 14 groups
Scanning
| Specification | Value |
|---|---|
| Optical scanning resolution | 600 x 600 DPI |
| Colour scanning | Yes |
| Duplex scanning | Yes |
| Film scanning | No |
| ADF scan speed (b/w, A4) | 12 ppm |
| Black/white scanning colour modes | Grayscale, Monochrome |
Design
| Specification | Value |
|---|---|
| Scanner type | ADF scanner |
| Built-in display | Yes |
| Product colour | Black, Grey |
Performance
| Specification | Value |
|---|---|
| Sensor type | CIS |
| Light source | White LED (3x) |
| Scan file formats | DOCS, JPG, PDF, XLSX |
| Scan to | E-mail, Image |
Input capacity
| Specification | Value |
|---|---|
| Standard input capacity | 12 sheets |
Paper handling
| Specification | Value |
|---|---|
| Maximum ISO A-series paper size | A4 |
| Scanning media types supported | Photo paper, Plastic Card |
| Multi feed detection | Yes |
| ISO A-series sizes (A0...A9) | A4 |
Ports & interfaces
| Specification | Value |
|---|---|
| USB port | Yes |
| USB version | 2.0 |
| Standard interfaces | USB 2.0 |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 5 W |
| Power supply type | USB |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 279 mm |
| Depth | 77 mm |
| Height | 99 mm |
| Weight | 1.4 kg |
Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
| Cables included | USB |
| Quick start guide | Yes |
| Drivers included | Yes |
Sustainability
| Specification | Value |
|---|---|
| Sustainability certificates | ENERGY STAR |
System requirements
| Specification | Value |
|---|---|
| Mac operating systems supported | Mac OS X 10.5 Leopard, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion |
| Minimum RAM | 2000 MB |
| Mobile operating systems supported | Android, iOS |
| Windows operating systems supported | Windows 7 Home Basic, Windows 8, Windows Vista Home Basic, Windows XP Home |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 5 - 35 °C |
| Operating relative humidity (H-H) | 20 - 80% |
Other features
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
Technical details
| Specification | Value |
|---|---|
| PC connection | USB 2.0 |
