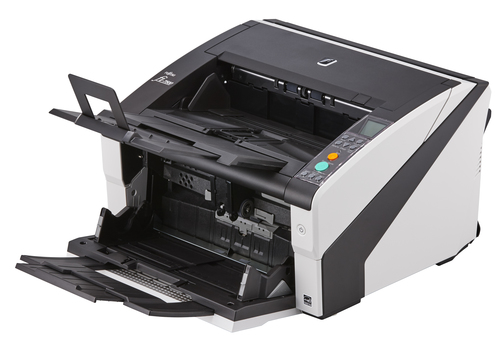

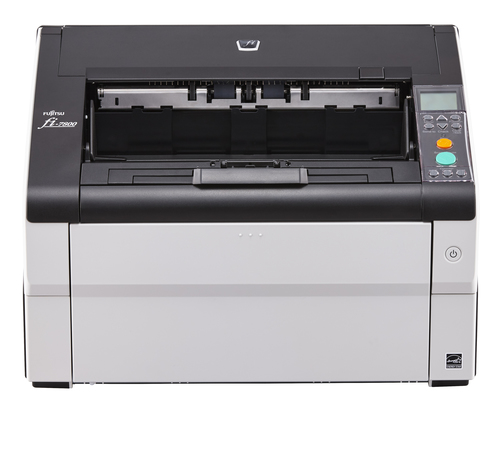

fi-7800 ADF + Manual feed scanner
600 x 600 DPI A3 Black, Grey
Model fi-7800Part no. PA03800-B405EAN 097564309250
44 specifications
- Weight32 kg
- ColourBlack, Grey
- Maximum scan size304.8 x 431.8 mm
- Scanner typeADF + Manual feed scanner
- Sensor typeDual CCD
- Auto document feeder (ADF) input capacity500 sheets
Overview
- Weight
- 32 kg
- Colour
- Black, Grey
- Maximum scan size
- 304.8 x 431.8 mm
- Scanner type
- ADF + Manual feed scanner
- Sensor type
- Dual CCD
- Auto document feeder (ADF) input capacity
- 500 sheets
- Brand
- Fujitsu
- Category
- Scanner
- Model
- fi-7800
- Part number
- PA03800-B405
- EAN / UPC
- 097564309250
- Also known as
- Fujitsu fi-7800 ADF + Manual feed scanner 600 x 600 DPI A3 Black, Grey
Specifications
44 specifications in 12 groups
Scanning
| Specification | Value |
|---|---|
| Maximum scan size | 304.8 x 431.8 mm |
| Optical scanning resolution | 600 x 600 DPI |
| Colour scanning | Yes |
| Duplex scanning | Yes |
| Output colour depth | 24 bit |
| Output greyscale depth | 8 bit |
| Output monochrome depth | 1 bit |
| Black/white scanning colour modes | Grayscale, Monochrome |
Design
| Specification | Value |
|---|---|
| Scanner type | ADF + Manual feed scanner |
| Built-in display | Yes |
| Product colour | Black, Grey |
Performance
| Specification | Value |
|---|---|
| Sensor type | Dual CCD |
| Light source | White LED (4x) |
| Daily duty cycle (max) | 100000 pages |
| Scan drivers | ISIS, TWAIN, WIA |
| Scanner error detection | Yes |
| Ultrasonic double sheet detection | Yes |
Input capacity
| Specification | Value |
|---|---|
| Auto document feeder (ADF) input capacity | 500 sheets |
Paper handling
| Specification | Value |
|---|---|
| Maximum ISO A-series paper size | A3 |
| Long-paper mode | Yes |
| Multi feed detection | Yes |
| ISO A-series sizes (A0...A9) | A3, A4, A5, A6 |
| ISO B-series sizes (B0...B9) | B5, B6 |
| Legal | Yes |
| Letter | Yes |
| Auto Document Feeder (ADF) media weight | 20 - 209 g/m² |
| Maximum scan length | 5.59 m |
| Minimum scan area (ADF) | 52 x 74 mm |
Ports & interfaces
| Specification | Value |
|---|---|
| USB port | Yes |
| USB version | 2.0 |
| USB connector type | USB Type-B |
| Standard interfaces | USB 2.0 |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 200 W |
| Power supply type | AC |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 460 mm |
| Depth | 460 mm |
| Height | 310 mm |
| Weight | 32 kg |
Packaging content
| Specification | Value |
|---|---|
| Drivers included | Yes |
System requirements
| Specification | Value |
|---|---|
| Windows operating systems supported | Windows 10, Windows 10 x64, Windows 7 |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 5 - 35 °C |
| Operating relative humidity (H-H) | 20 - 80% |
Other features
| Specification | Value |
|---|---|
| Selectable background colour | Yes |
| Background colours | Black, White |
