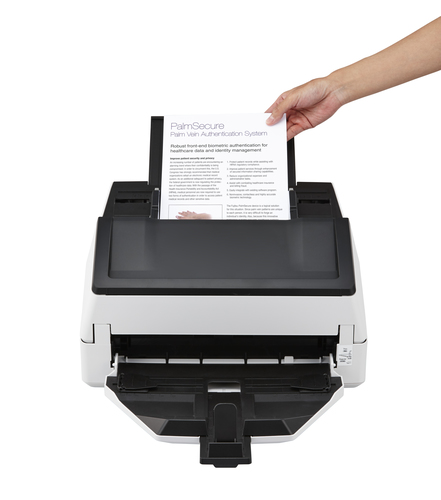

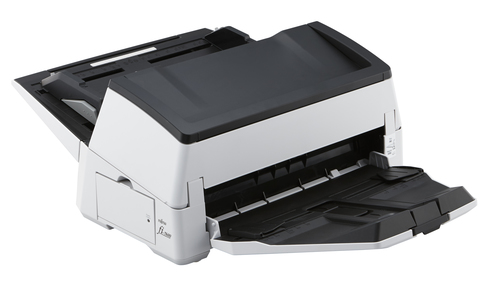

Fujitsu FI-7600 ADF scanner
600 x 600 DPI A3 Black, White
Model FI-7600Part no. PA03740-B505EAN 097564308888
51 specifications
- Weight11 kg
- ColourBlack, White
- Maximum scan size304.8 x 431.8 mm
- Scanner typeADF scanner
- Sensor typeDual CCD
- Auto document feeder (ADF) input capacity300 sheets
Overview
- Weight
- 11 kg
- Colour
- Black, White
- Maximum scan size
- 304.8 x 431.8 mm
- Scanner type
- ADF scanner
- Sensor type
- Dual CCD
- Auto document feeder (ADF) input capacity
- 300 sheets
- Brand
- Fujitsu
- Category
- Scanner
- Model
- FI-7600
- Part numbers
- PA03740-B505, CG01000-293401
- EAN / UPC
- 097564308888
- Also known as
- Fujitsu FI-7600 ADF scanner 600 x 600 DPI A3 Black, White
Specifications
51 specifications in 13 groups
Scanning
| Specification | Value |
|---|---|
| Maximum scan size | 304.8 x 431.8 mm |
| Optical scanning resolution | 600 x 600 DPI |
| Colour scanning | Yes |
| Duplex scanning | Yes |
| Output colour depth | 24 bit |
| Output greyscale depth | 8 bit |
| Output monochrome depth | 1 bit |
| ADF scan speed (b/w, A4) | 100 ppm |
| Duplex ADF scan speed (b/w, A4) | 200 ipm |
| Duplex ADF scan speed (colour, A4) | 200 ipm |
| Black/white scanning colour modes | Grayscale, Monochrome |
Design
| Specification | Value |
|---|---|
| Scanner type | ADF scanner |

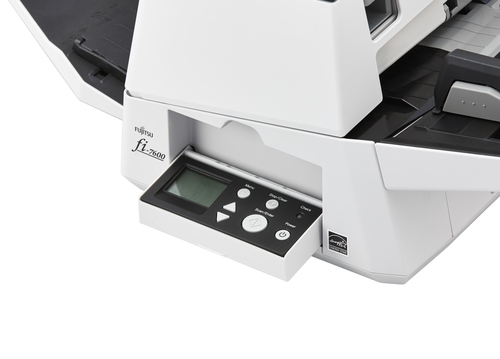

| Built-in display | Yes |
| Product colour | Black, White |
| Display | LCD |
Performance
| Specification | Value |
|---|---|
| Sensor type | Dual CCD |
| Light source | White LED (4x) |
| Daily duty cycle (max) | 30000 pages |
| Scan drivers | ISIS, TWAIN |
Input capacity
| Specification | Value |
|---|---|
| Auto document feeder (ADF) input capacity | 300 sheets |
Paper handling
| Specification | Value |
|---|---|
| Maximum ISO A-series paper size | A3 |
| Scanning media types supported | Envelopes, Plain paper, Plastic Card, Thin paper |
| Multi feed detection | Yes |
| ISO A-series sizes (A0...A9) | A3, A3+, A4, A5, A6, A7, A8 |
| Auto Document Feeder (ADF) media weight | 20 - 413 g/m² |
| Minimum scan area (Flatbed) | 50.8 x 69 mm |
Ports & interfaces
| Specification | Value |
|---|---|
| USB port | Yes |
| USB version | 3.2 Gen 2 (3.1 Gen 2) |
| Standard interfaces | USB 3.2 Gen 1 (3.1 Gen 1) |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 64 W |
| Power supply type | AC |
| Power consumption (standby) | 0.35 W |
| Input voltage | 100 - 240 V |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 236 mm |
| Depth | 432 mm |
| Height | 214 mm |
| Weight | 11 kg |
Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
| ADF paper chute | Yes |
| Cables included | AC, USB |
| Quick start guide | Yes |
| Stacker | Yes |
| Drivers included | Yes |
Sustainability
| Specification | Value |
|---|---|
| Sustainability certificates | ENERGY STAR |
System requirements
| Specification | Value |
|---|---|
| Server operating systems supported | Windows Server 2008, Windows Server 2008 R2 x64, Windows Server 2008 x64, Windows Server 2012 R2 x64, Windows Server 2012 x64, Windows Server 2016 x64 |
| Windows operating systems supported | Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 5 - 35 °C |
| Operating relative humidity (H-H) | 20 - 80% |
Other features
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
| Selectable background colour | Yes |
| Background colours | Black, White |
