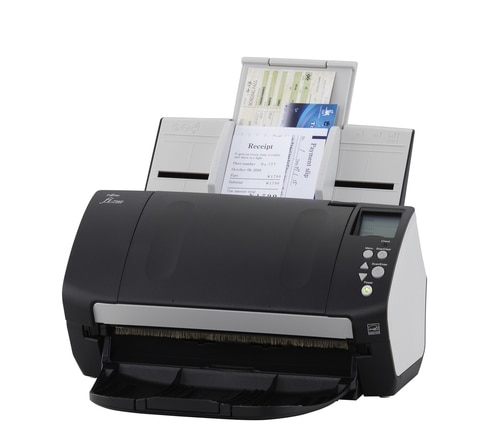

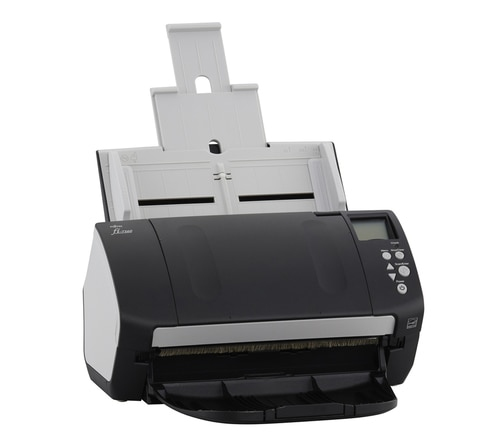

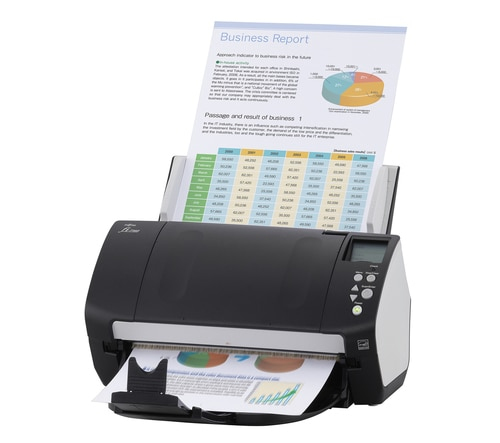

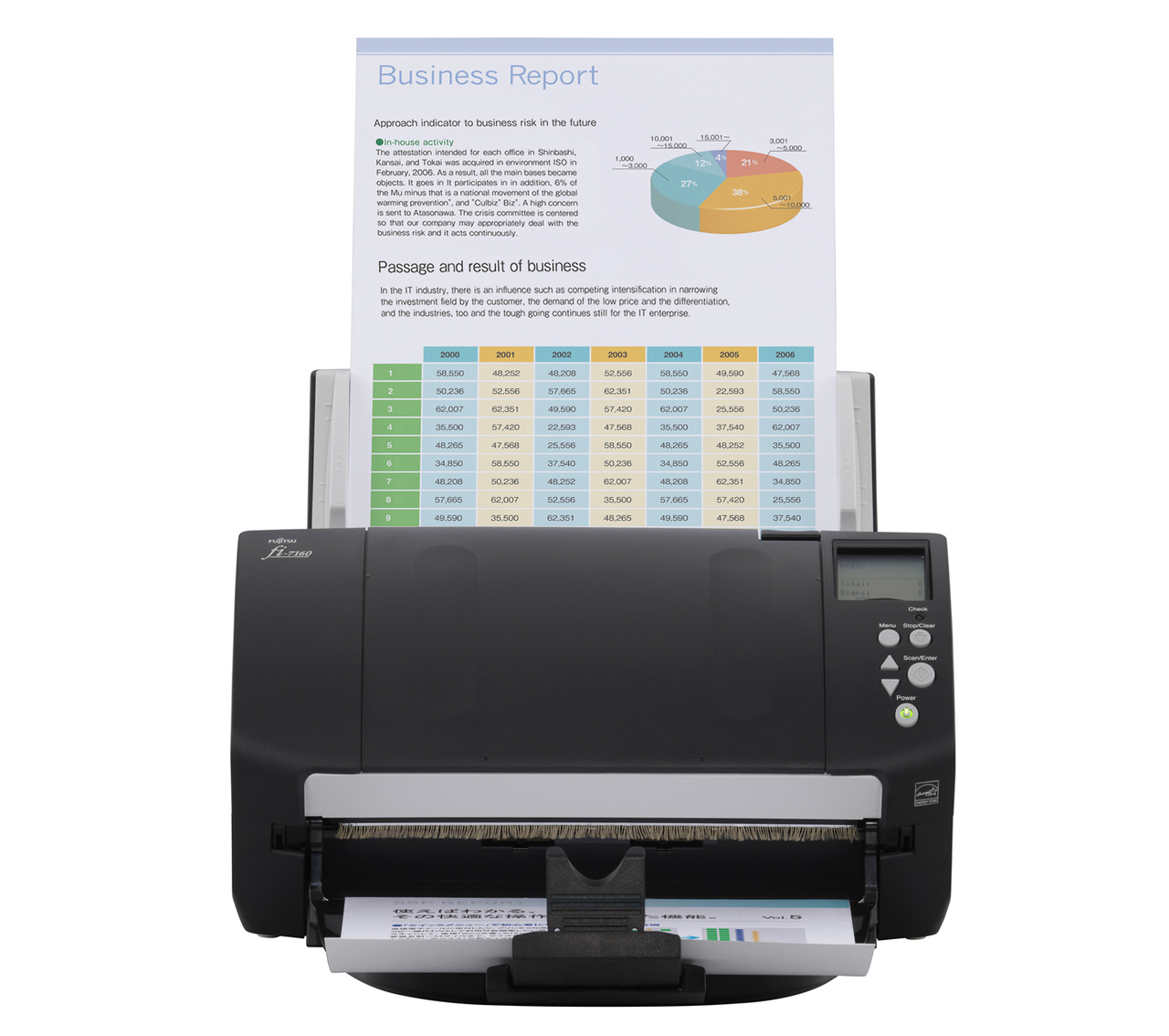

Fujitsu fi-7160 Deluxe Bundle
Model fi-7160 Deluxe BundlePart no. CG01000-286401EAN 097564308741
58 specifications
- Weight4.2 kg
- ColourBlack, Grey
- Maximum scan size210 x 5588 mm
- Scanner typeADF scanner
- Sensor typeCCD
- Auto document feeder (ADF) input capacity80 sheets
Overview
- Weight
- 4.2 kg
- Colour
- Black, Grey
- Maximum scan size
- 210 x 5588 mm
- Scanner type
- ADF scanner
- Sensor type
- CCD
- Auto document feeder (ADF) input capacity
- 80 sheets
- Brand
- Fujitsu
- Category
- Scanner
- Model
- fi-7160 Deluxe Bundle
- Part number
- CG01000-286401
- EAN / UPC
- 097564308741
- Also known as
- Fujitsu fi-7160 Deluxe Bundle ADF scanner 600 x 600 DPI A4 Black, Grey
Specifications
58 specifications in 13 groups
Scanning
| Specification | Value |
|---|---|
| Maximum scan size | 210 x 5588 mm |
| Optical scanning resolution | 600 x 600 DPI |
| Colour scanning | Yes |
| Duplex scanning | Yes |
| Output colour depth | 24 bit |
| Output greyscale depth | 8 bit |
| Output monochrome depth | 1 bit |
| ADF scan speed (b/w, A4) | 60 ppm |
| ADF scan speed (colour, A4) | 60 ppm |
| Duplex ADF scan speed (b/w, A4) | 120 ipm |
| Duplex ADF scan speed (colour, A4) | 120 ipm |
| Black/white scanning colour modes | Grayscale, Monochrome |
Design
| Specification | Value |
|---|---|
| Scanner type | ADF scanner |
| Built-in display | Yes |
| Product colour | Black, Grey |
| Display | LCD |
Performance
| Specification | Value |
|---|---|
| Sensor type | CCD |
| Light source | White LED |
| Daily duty cycle (max) | 4000 pages |
| Scan drivers | ISIS, TWAIN |
| Built-in processor | Yes |
| Processor frequency | 2.5 MHz |
Input capacity
| Specification | Value |
|---|---|
| Auto document feeder (ADF) input capacity | 80 sheets |
Paper handling
| Specification | Value |
|---|---|
| Maximum ISO A-series paper size | A4 |
| Scanning media types supported | Labels, Plain paper, Plastic Card |
| Long-paper mode | Yes |
| ISO A-series sizes (A0...A9) | A4, A8 |
| Letter | Yes |
| Card thickness (max) | 1.4 mm |
| Auto Document Feeder (ADF) media weight | 27 - 413 g/m² |
| Maximum scan width | 21.6 cm |
| Maximum scan length | 5.59 m |
| Maximum scan area (ADF) | 216 x 356.6 mm |
| Minimum scan area (ADF) | 50.8 x 54 mm |
Ports & interfaces
| Specification | Value |
|---|---|
| USB port | Yes |
| USB version | 3.2 Gen 1 (3.1 Gen 1) |
| Standard interfaces | USB 3.2 Gen 1 (3.1 Gen 1) |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 38 W |
| Power supply type | AC |
| Power consumption (standby) | 0.35 W |
| Sleep mode | Yes |
| Input voltage | 100 - 240 V |
| Power consumption (sleep) | 1.8 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 300 mm |
| Depth | 170 mm |
| Height | 163 mm |
| Weight | 4.2 kg |
Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
| ADF paper chute | Yes |
| Cables included | AC, USB |
| Quick start guide | Yes |
| Bundled software | PaperStream IP (TWAIN/ISIS) Driver, Software Operation Panel, Error Recovery Guide, PaperStream Capture, ScanSnap Manager for fi Series, ABBYY FineReader for ScanSnap, Scanner Central Admin Agent |
Sustainability
| Specification | Value |
|---|---|
| Sustainability certificates | ENERGY STAR |
System requirements
| Specification | Value |
|---|---|
| Server operating systems supported | Windows Server 2008, Windows Server 2008 R2 x64, Windows Server 2008 x64, Windows Server 2012 R2 x64, Windows Server 2012 x64 |
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 5 - 35 °C |
| Operating relative humidity (H-H) | 20 - 80% |
Other features
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
