Fujitsu fi-7160 ADF scanner
600 x 600 DPI A4 Black, White
Model fi-7160Part no. PA03670-B085-DEAN 097564309229
46 specifications
- Weight4.2 kg
- ColourBlack, White
- Maximum scan size216 x 5588 mm
- Scanner typeADF scanner
- Sensor typeCCD
- Auto document feeder (ADF) input capacity80 sheets
Overview
- Weight
- 4.2 kg
- Colour
- Black, White
- Maximum scan size
- 216 x 5588 mm
- Scanner type
- ADF scanner
- Sensor type
- CCD
- Auto document feeder (ADF) input capacity
- 80 sheets
- Brand
- Fujitsu
- Category
- Scanner
- Model
- fi-7160
- Part numbers
- PA03670-B085-D, PA03670-B051, PA03670-B055, PFU:FPA03670-B051, PA03670-B085-RF, PA03670-B085 +1 more
- EAN / UPC
- 097564309229, 042111663972, 617079301749, 799198133590 +13 more
- Also known as
- Fujitsu fi-7160 ADF scanner 600 x 600 DPI A4 Black, White
Specifications
46 specifications in 14 groups
Scanning
| Specification | Value |
|---|---|
| Maximum scan size | 216 x 5588 mm |
| Optical scanning resolution | 600 x 600 DPI |
| Colour scanning | Yes |
| Duplex scanning | Yes |
| Output colour depth | 24 bit |
| Film scanning | No |
| ADF scan speed (b/w, A4) | 60 ppm |
| ADF scan speed (colour, A4) | 60 ppm |
| Duplex ADF scan speed (b/w, A4) | 120 ipm |
| Duplex ADF scan speed (colour, A4) | 120 ipm |
| Black/white scanning colour modes | Grayscale, Monochrome |
Design
| Specification | Value |
|---|---|
| Scanner type | ADF scanner |
| Built-in display | Yes |
| Product colour | Black, White |

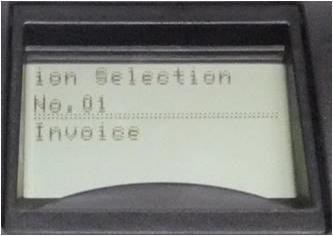

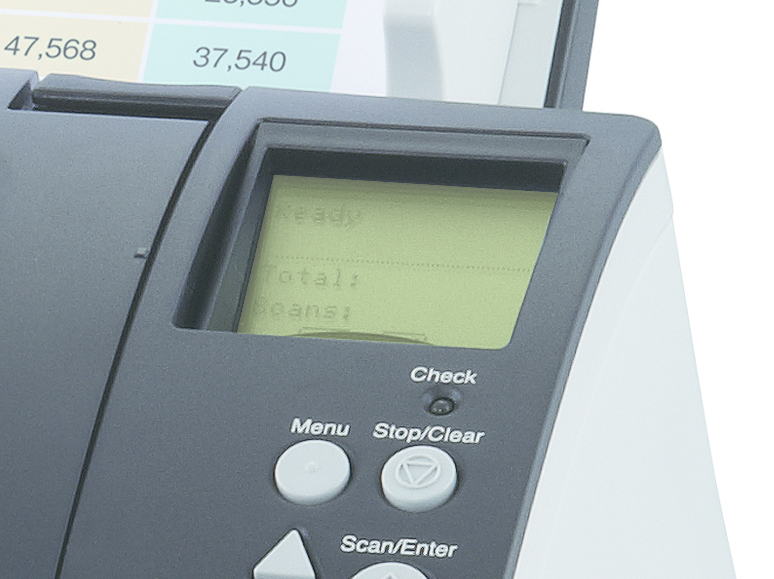

| Display | LCD |
Performance
| Specification | Value |
|---|---|
| Sensor type | CCD |
| Light source | White LED (2x) |
| Daily duty cycle (max) | 4000 pages |
| Scan drivers | ISIS, TWAIN |
Input capacity
| Specification | Value |
|---|---|
| Auto document feeder (ADF) input capacity | 80 sheets |
Paper handling
| Specification | Value |
|---|---|
| Maximum ISO A-series paper size | A4 |
| Multi feed detection | Yes |
| ISO A-series sizes (A0...A9) | A4 |
| Auto Document Feeder (ADF) media weight | 27 - 413 g/m² |
| Minimum scan area (ADF) | 50.8 x 54 mm |
Ports & interfaces
| Specification | Value |
|---|---|

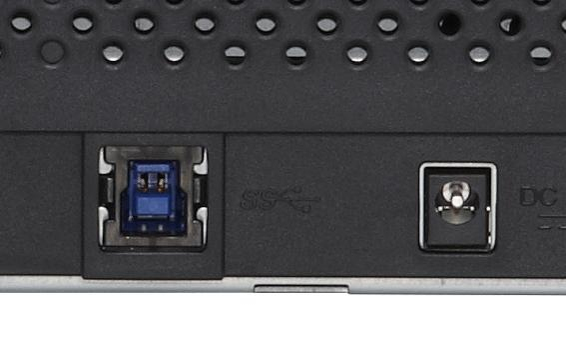

| USB port | Yes |
| USB version | 3.2 Gen 1 (3.1 Gen 1) |
| Standard interfaces | USB 2.0, USB 3.2 Gen 1 (3.1 Gen 1) |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 38 W |
| Power supply type | AC |
| Power consumption (standby) | 1.8 W |
| Power consumption (off) | 0.35 W |
| Input voltage | 100-240 V |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 300 mm |
| Depth | 170 mm |
| Height | 163 mm |
| Weight | 4.2 kg |
Packaging content
| Specification | Value |
|---|---|
| Bundled software | PaperStream IP PaperStream Capture Software Operation Panel Error Recovery Guide ScanSnap Manager Scan to Microsoft SharePoint ABBYY FineReader Scanner Central Admin tools |
Sustainability
| Specification | Value |
|---|---|
| Sustainability certificates | ENERGY STAR |
System requirements
| Specification | Value |
|---|---|
| Linux operating systems supported | Ubuntu 14.04, Ubuntu 16.04 |
| Server operating systems supported | Windows Server 2008, Windows Server 2008 R2 x64, Windows Server 2008 x64, Windows Server 2012 R2 x64, Windows Server 2012 x64, Windows Server 2016 x64 |
| Windows operating systems supported | Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Wind |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 5 - 35 °C |
| Operating relative humidity (H-H) | 20 - 80% |
Other features
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 84716070 |
