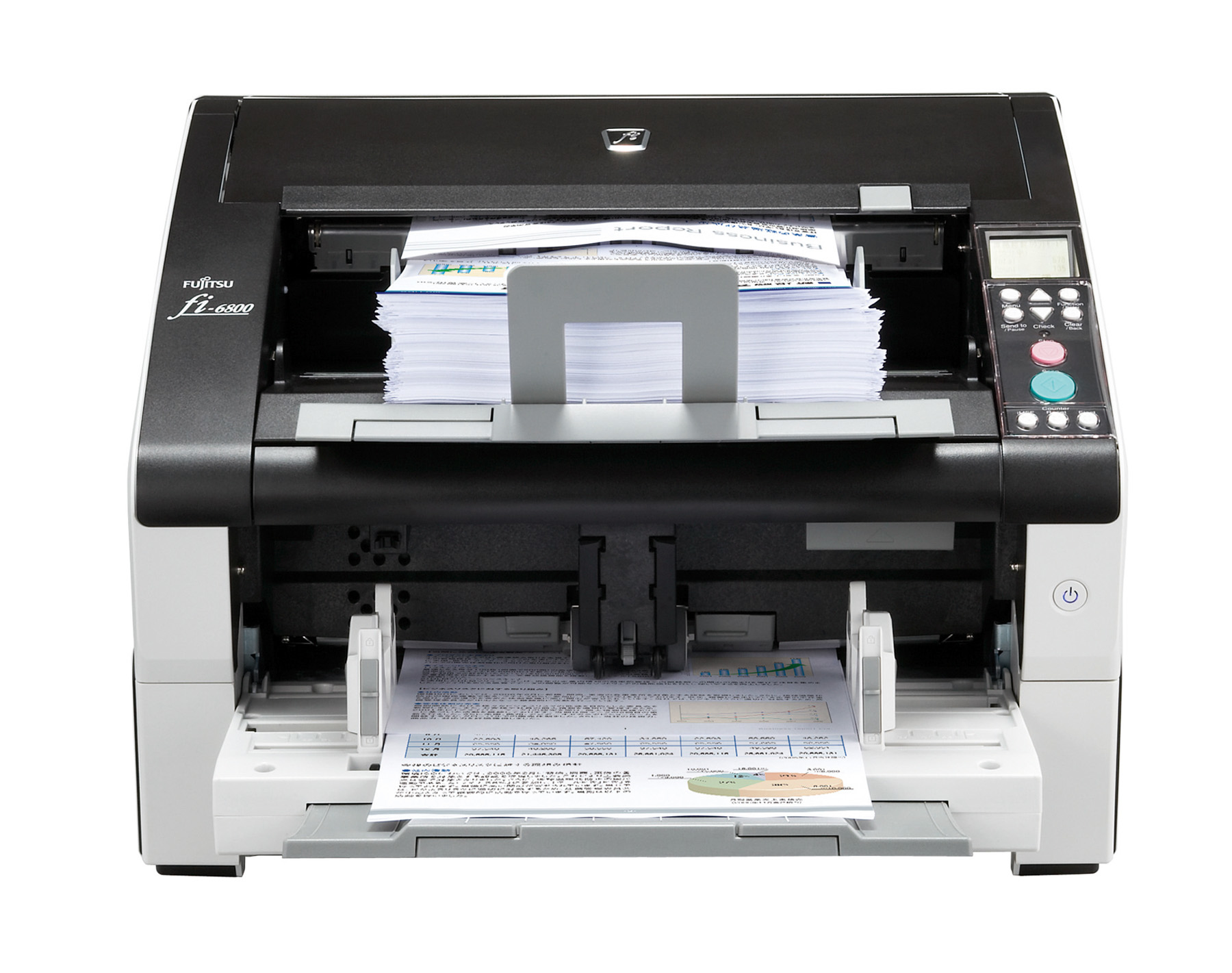

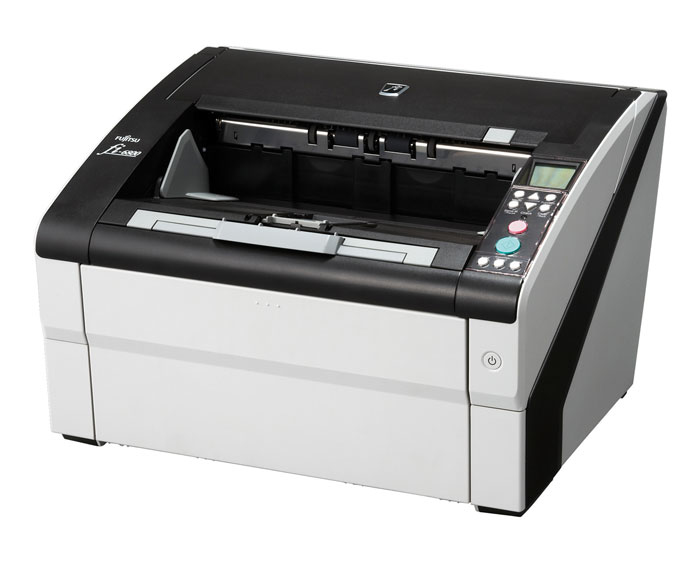

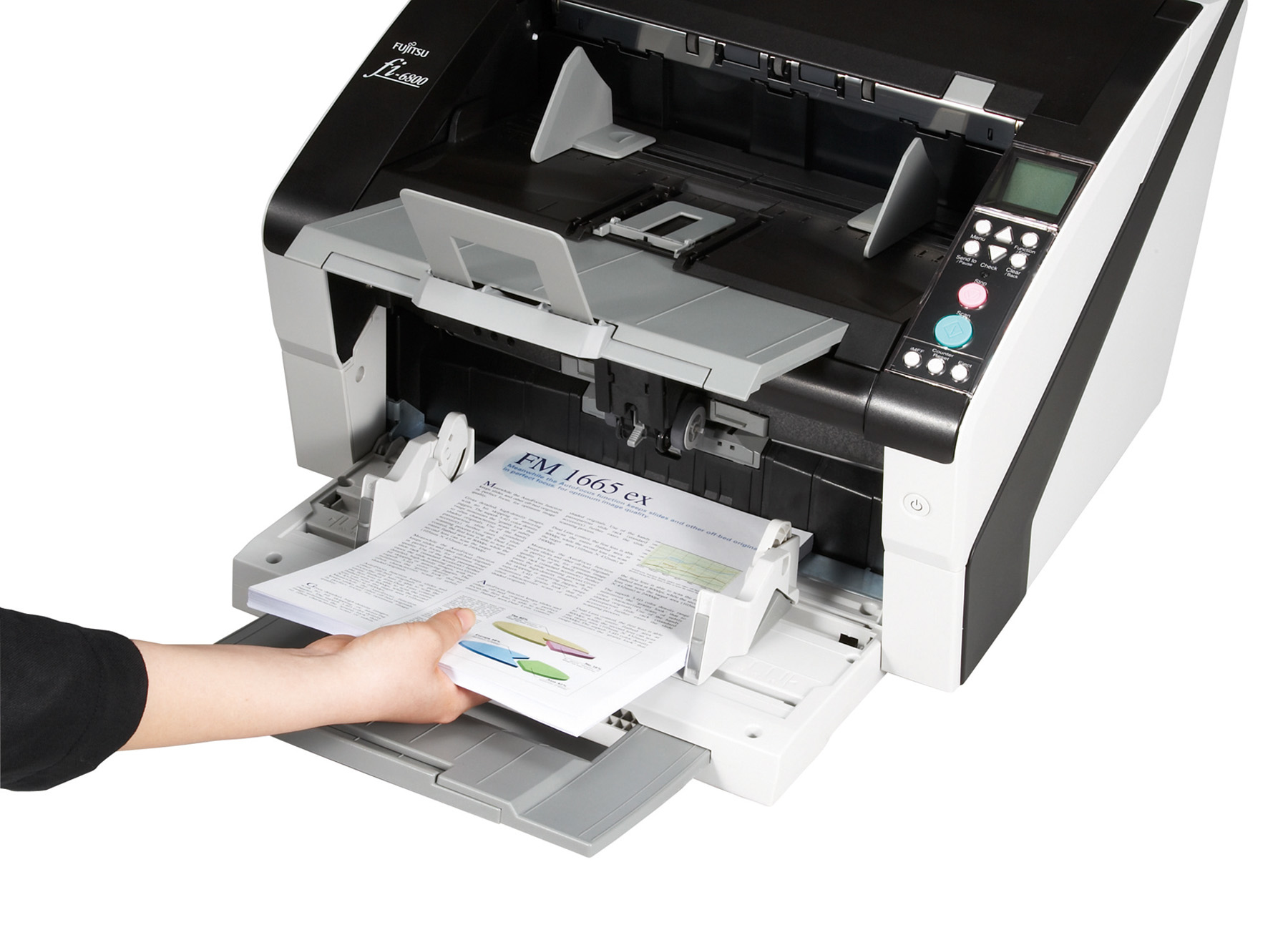

Fujitsu fi-6800 ADF + Manual feed scanner

Fujitsu fi-6800 ADF + Manual feed scanner

600 x 600 DPI A3 Black, White

Model fi-6800Part no. PA03575-B061EAN 790341036416

45 specifications

Weight32 kg
ColourBlack, White
Maximum scan size297 x 420 mm
Scanner typeADF + Manual feed scanner
Sensor typeCCD
Standard input capacity500 sheets

See all specifications

Overview

Weight: 32 kg
Colour: Black, White
Maximum scan size: 297 x 420 mm
Scanner type: ADF + Manual feed scanner
Sensor type: CCD
Standard input capacity: 500 sheets

Brand: Fujitsu
Category: Scanner
Model: fi-6800
Part numbers: PA03575-B061, PA03575-B065, PA03575-B065-R, PA03575-B001, AP-6800, PA03575-B005 +2 more
EAN / UPC: 790341036416, 4053162397002, 4939761303401, 4939761306853 +2 more
Also known as: Fujitsu fi-6800 ADF + Manual feed scanner 600 x 600 DPI A3 Black, White

Specifications

45 specifications in 13 groups

Scanning

Specification	Value
Maximum scan size	297 x 420 mm
Optical scanning resolution	600 x 600 DPI
Colour scanning	Yes
Duplex scanning	Yes
Input colour depth	24 bit
Output colour depth	24 bit
Film scanning	No
Greyscale levels	1024
ADF scan speed (b/w, A4)	130 ppm
Flatbed scan speed (b/w, A4)	0.230 sec/page
Duplex ADF scan speed (b/w, A4)	260 ipm
Duplex ADF scan speed (colour, A4)	260 ipm

Design

Specification	Value
Scanner type	ADF + Manual feed scanner
Product colour	Black, White

Performance

Specification	Value
Sensor type	CCD
Light source	White LED
Daily duty cycle (max)	60000 pages
Scan drivers	ISIS, TWAIN

Input capacity

Specification	Value
Standard input capacity	500 sheets

Paper handling

Specification	Value
Maximum ISO A-series paper size	A3
ISO A-series sizes (A0...A9)	A3, A4, A5, A6, A7, A8
ISO B-series sizes (B0...B9)	B4, B5, B6

Ports & interfaces

Specification	Value
USB port	Yes
USB version	2.0
Standard interfaces	Ultra SCSI, USB 2.0

Power

Specification	Value
Power consumption (typical)	200 W
Power supply type	AC
Power consumption (standby)	4.2 W
AC input frequency	50 - 60 Hz
Input voltage	100-240 V

Weight & dimensions

Specification	Value
Width	460 mm
Depth	430 mm
Height	310 mm
Weight	32 kg

Packaging content

Specification	Value
Bundled software	ScandAll Adobe Acrobat VRS Professional SoftIPC QuickScan Software operation panel

Sustainability

Specification	Value
Sustainability certificates	ENERGY STAR

System requirements

Specification	Value
Server operating systems supported	Windows Server 2003, Windows Server 2008
Windows operating systems supported	Windows 2000 Professional, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Wi

Operational conditions

Specification	Value
Operating temperature (T-T)	15 - 35 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	20 - 80%

Other features

Specification	Value
Compliance certificates	RoHS
Scan media weight	20 - 209 g/m²
Non-operating relative humidity (non-condensing)	8 - 95%
Minimum scan area	304.8 x 431.8 mm (12 x 17")
