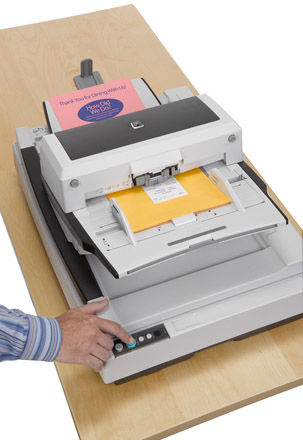

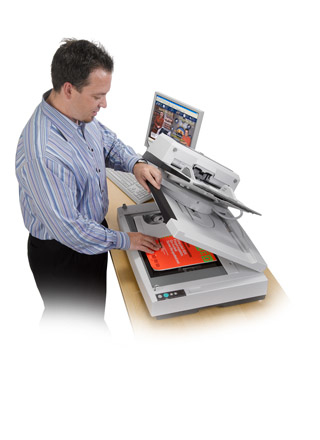

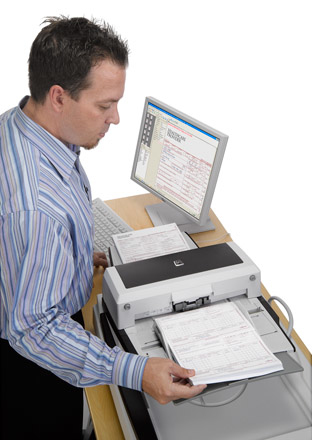

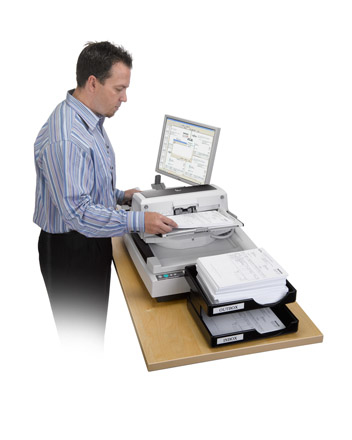

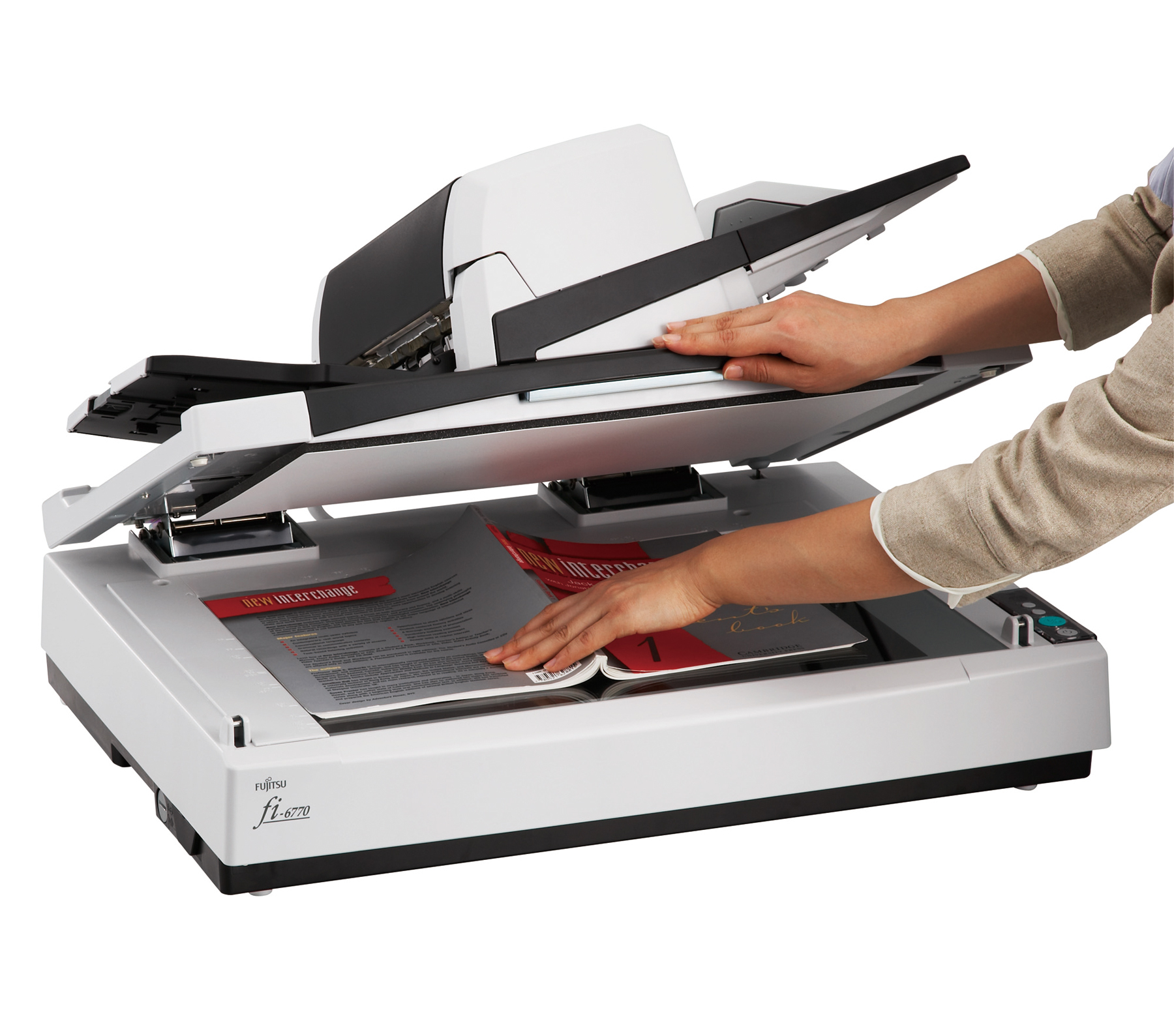

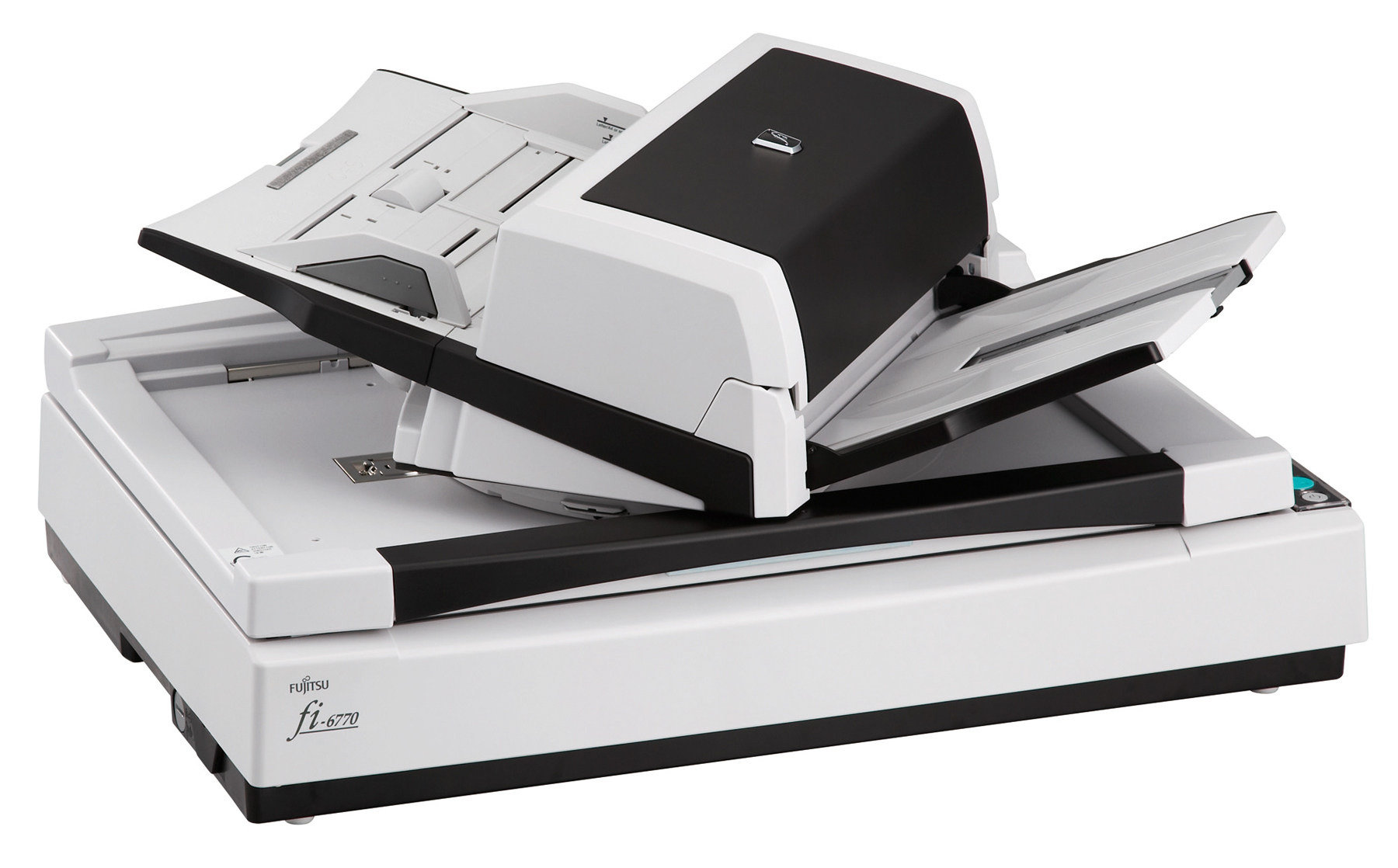

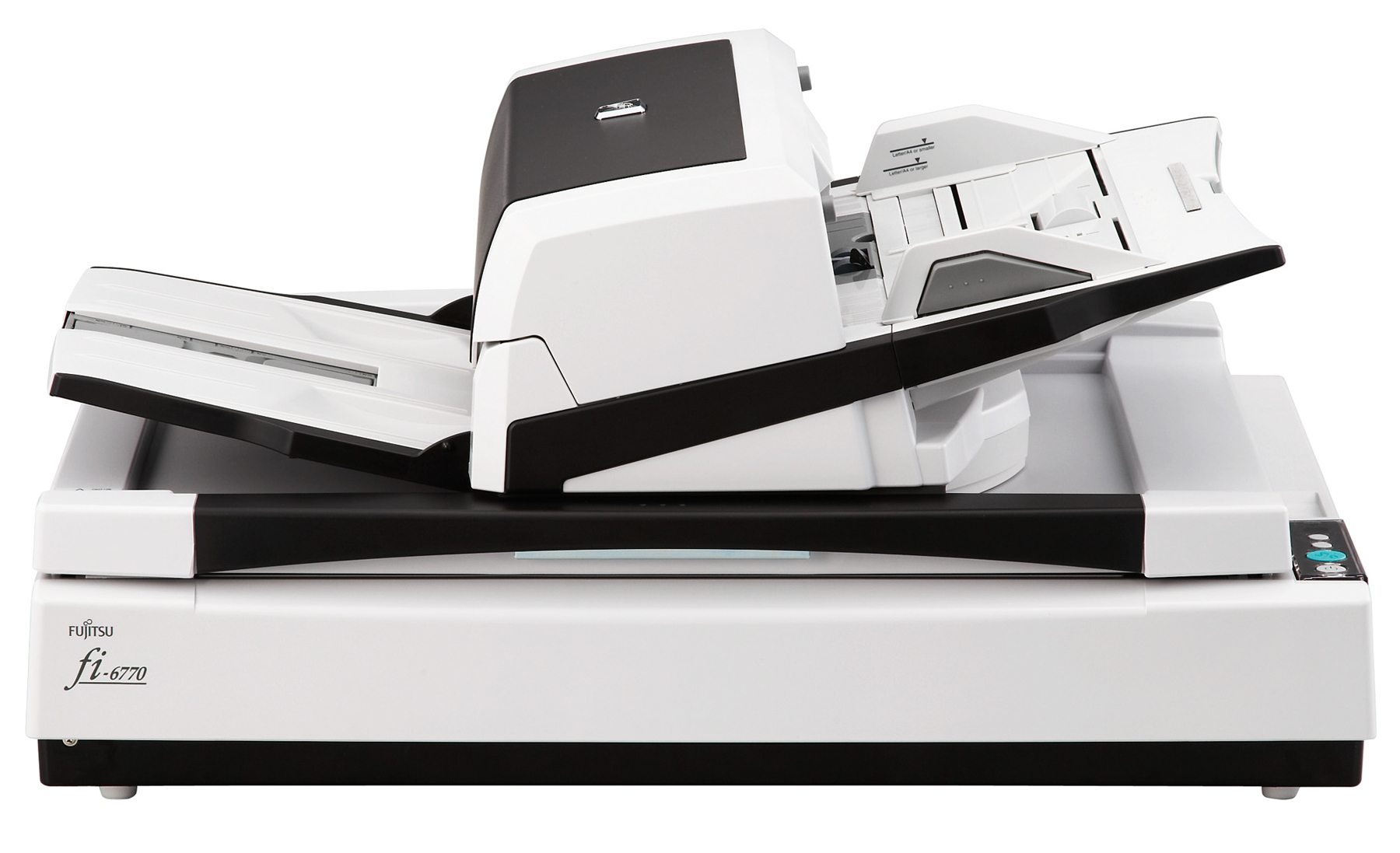

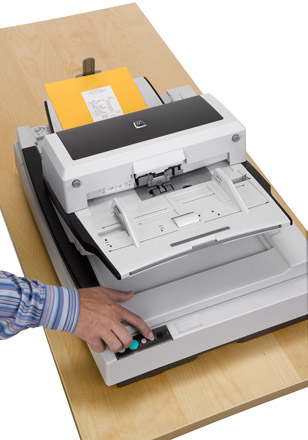

Fujitsu fi-6770 Flatbed & ADF scanner

Fujitsu fi-6770 Flatbed & ADF scanner

600 x 600 DPI A3 Black, White

Model fi-6770Part no. PA03576-B165EAN 4939761306570

38 specifications

Weight35 kg
ColourBlack, White
Maximum scan size297 x 420 mm
Scanner typeFlatbed & ADF scanner
Sensor typeCCD
Standard input capacity200 sheets

See all specifications

Overview

Weight: 35 kg
Colour: Black, White
Maximum scan size: 297 x 420 mm
Scanner type: Flatbed & ADF scanner
Sensor type: CCD
Standard input capacity: 200 sheets

Brand: Fujitsu
Category: Scanner
Model: fi-6770
Part numbers: PA03576-B165, PA03576-B165-R, PA03576-B001, FI-6770, PA03576-B005, MP-6770 +3 more
EAN / UPC: 4939761306570, 097564307478, 777786328870, 4939761302671 +4 more
Also known as: Fujitsu fi-6770 Flatbed & ADF scanner 600 x 600 DPI A3 Black, White

Specifications

38 specifications in 13 groups

Scanning

Specification	Value
Maximum scan size	297 x 420 mm
Optical scanning resolution	600 x 600 DPI
Colour scanning	Yes
Duplex scanning	Yes
Input colour depth	24 bit
Output colour depth	24 bit
Film scanning	No
Greyscale levels	1024
ADF scan speed (b/w, A4)	80 ppm
Duplex ADF scan speed (b/w, A4)	160 ipm

Design

Specification	Value
Scanner type	Flatbed & ADF scanner
Product colour	Black, White

Performance

Specification	Value
Sensor type	CCD
Light source	WCC DL
Daily duty cycle (max)	15000 pages
Scan drivers	ISIS, TWAIN

Input capacity

Specification	Value
Standard input capacity	200 sheets

Paper handling

Specification	Value
Maximum ISO A-series paper size	A3
ISO A-series sizes (A0...A9)	A3, A4, A5, A6
Auto Document Feeder (ADF) media weight	31 - 209 g/m²

Ports & interfaces

Specification	Value
USB port	Yes
USB version	2.0
Standard interfaces	Ultra SCSI, USB 2.0

Power

Specification	Value
Power consumption (typical)	130 W
Power supply type	AC
Power consumption (standby)	9.1 W
Input voltage	100-240 V

Weight & dimensions

Specification	Value
Width	690 mm
Depth	500 mm
Height	342 mm
Weight	35 kg

Packaging content

Specification	Value
Bundled software	VRS Professional ScandAll PRO V2 Premium Quickscan Pro (Trial) Image Processing Software Scanner Central Admin

Sustainability

Specification	Value
Sustainability certificates	ENERGY STAR

System requirements

Specification	Value
Server operating systems supported	Windows Server 2003, Windows Server 2008, Windows Server 2008 R2
Windows operating systems supported	Windows 2000, Windows 2000 Professional, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8

Operational conditions

Specification	Value
Operating temperature (T-T)	5 - 35 °C
Operating relative humidity (H-H)	20 - 80%

Other features

Specification	Value
Compliance certificates	RoHS
