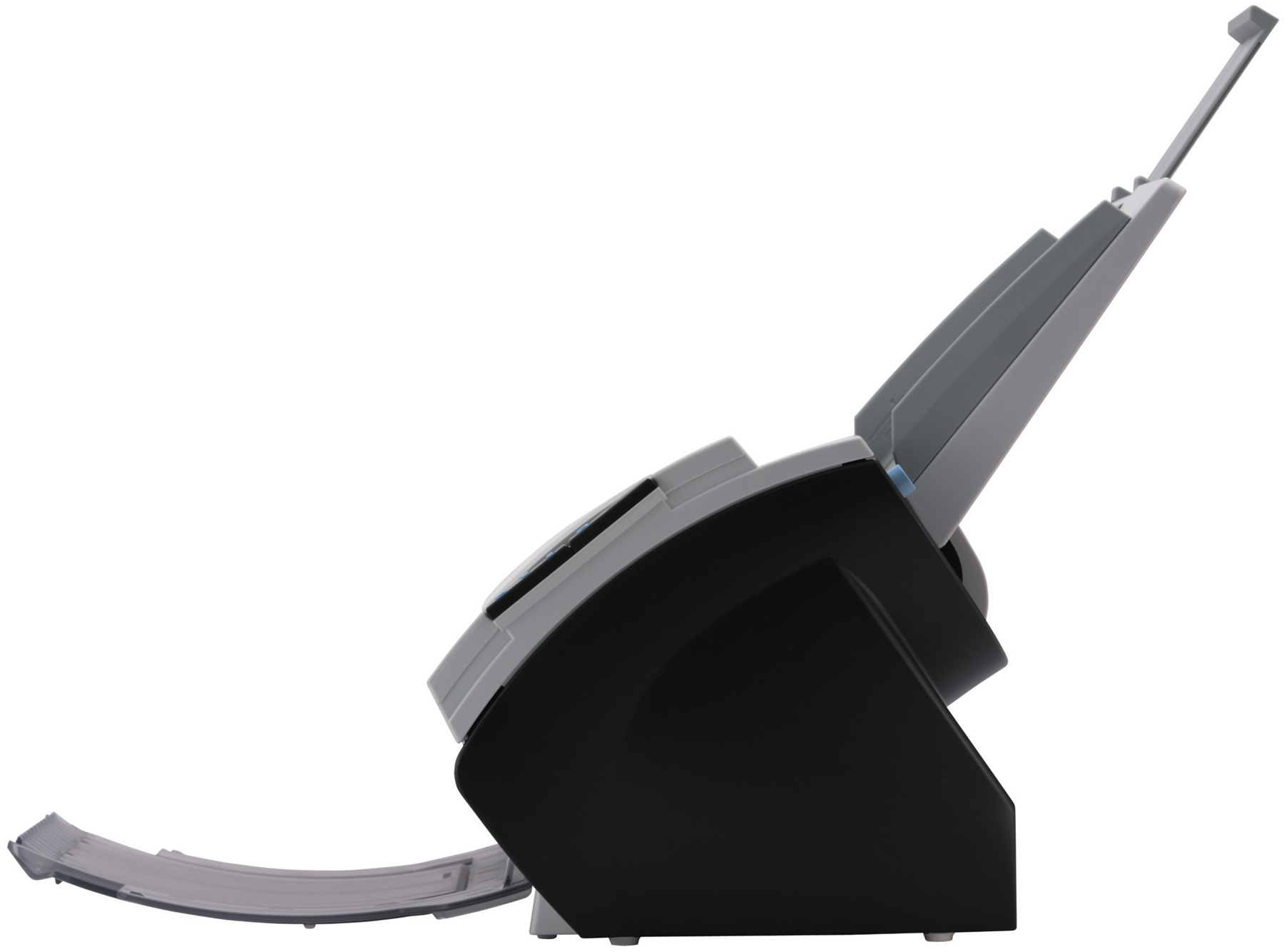

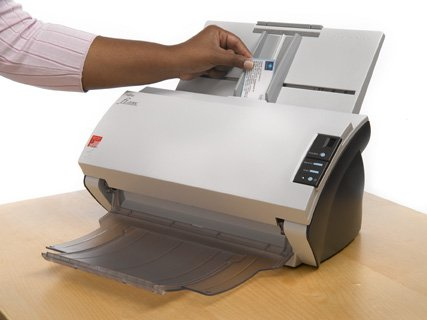

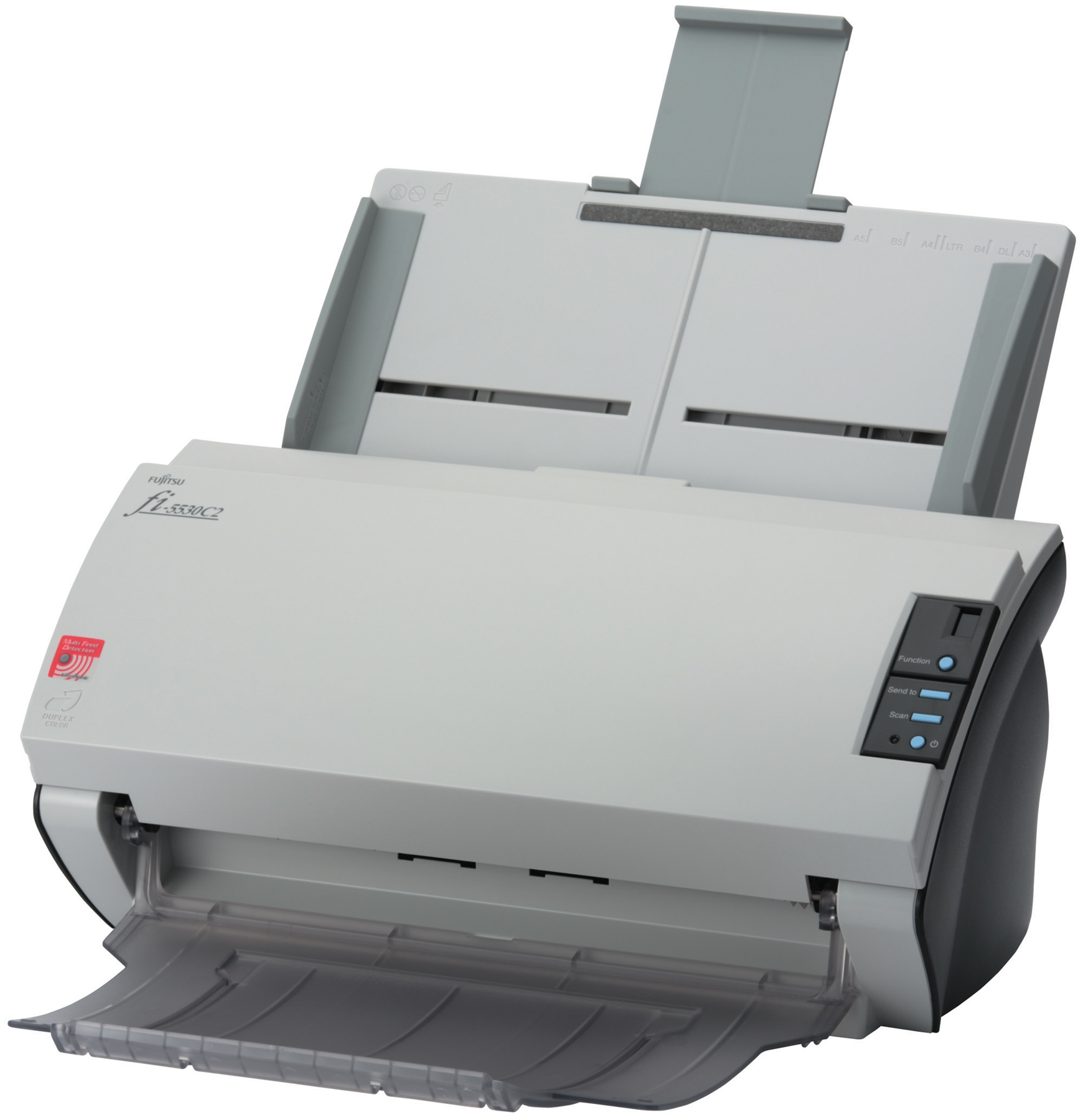

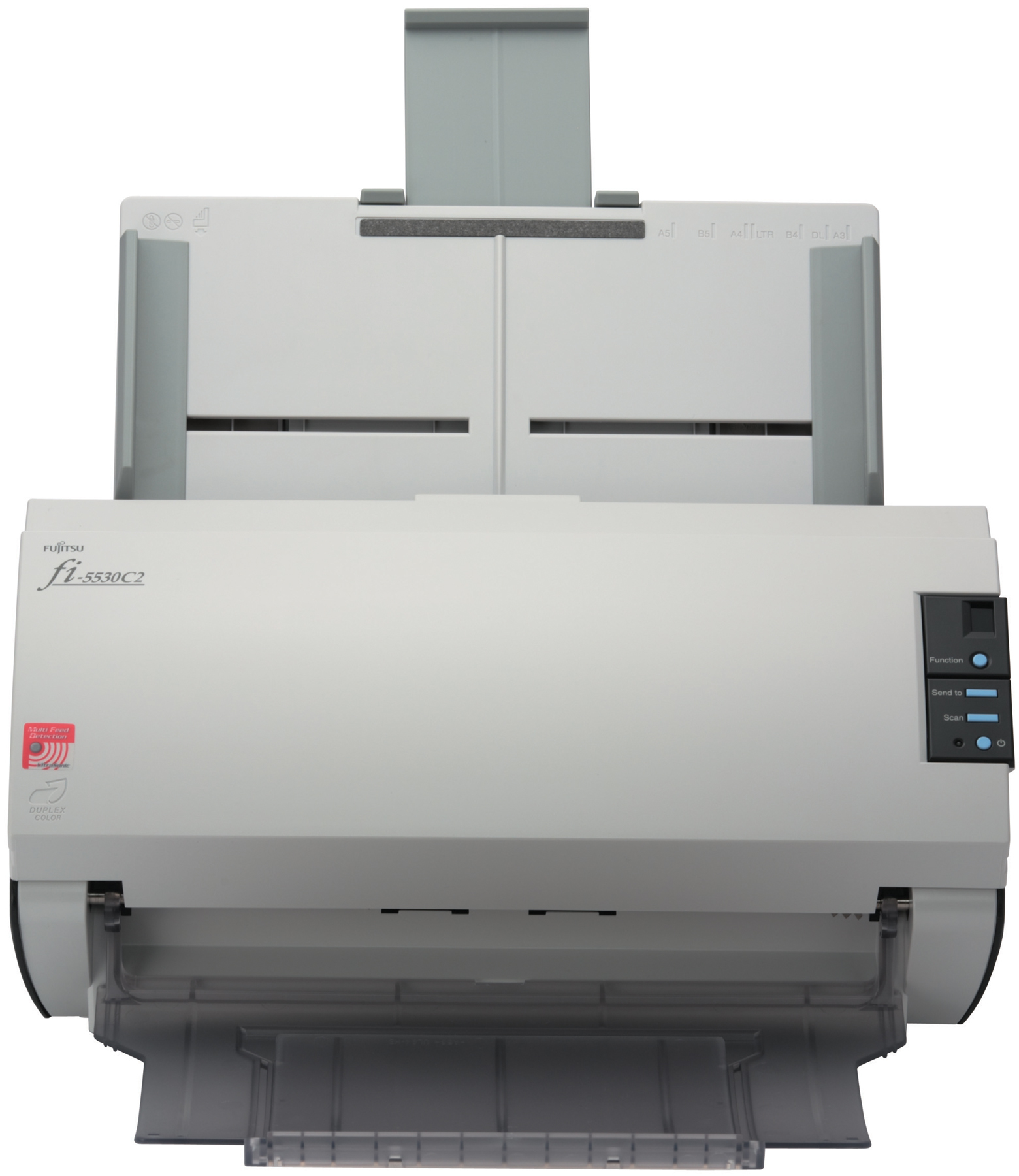

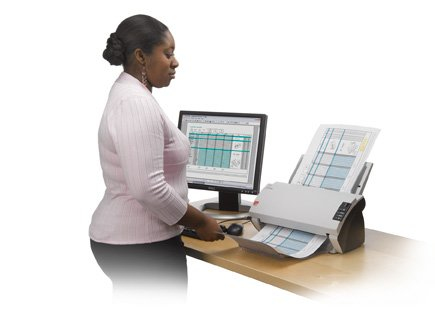

fi-5530C2 ADF scanner
600 x 600 DPI A3 Grey, White
Model fi-5530C2Part no. PA03334-B665-REAN 4053162425743
41 specifications
- Memory64 MB
- Weight8.5 kg
- ColourGrey, White
- Maximum scan size297 x 420 mm
- Scanner typeADF scanner
- Sensor typeCCD
Overview
- Memory
- 64 MB
- Weight
- 8.5 kg
- Colour
- Grey, White
- Maximum scan size
- 297 x 420 mm
- Scanner type
- ADF scanner
- Sensor type
- CCD
- Brand
- Fujitsu
- Category
- Scanner
- Model
- fi-5530C2
- Part numbers
- PA03334-B665-R, PA03334-B601, FI-5530C2, PA03334-B605, D-5530C2, PA03334-B661
- EAN / UPC
- 4053162425743, 4939761301322, 5051749445886, 001910057214 +3 more
- Also known as
- Fujitsu fi-5530C2 ADF scanner 600 x 600 DPI A3 Grey, White
Specifications
41 specifications in 13 groups
Scanning
| Specification | Value |
|---|---|
| Maximum scan size | 297 x 420 mm |
| Optical scanning resolution | 600 x 600 DPI |
| Colour scanning | Yes |
| Duplex scanning | Yes |
| Input colour depth | 24 bit |
| Film scanning | No |
| Greyscale levels | 1024 |
| ADF scan speed (colour, A4) | 50 ppm |
| Duplex ADF scan speed (colour, A4) | 100 ipm |
Design
| Specification | Value |
|---|---|
| Scanner type | ADF scanner |
| Product colour | Grey, White |
Performance
| Specification | Value |
|---|---|
| Sensor type | CCD |
| Light source | WCC DL |
| Maximum duty cycle | 4000 pages per month |
| Scan drivers | ISIS, TWAIN |
| Internal memory | 64 MB |
Input capacity
| Specification | Value |
|---|---|
| Auto document feeder (ADF) input capacity | 100 sheets |
Paper handling
| Specification | Value |
|---|---|
| Maximum ISO A-series paper size | A3 |
| ISO A-series sizes (A0...A9) | A3, A4, A5, A6, A7, A8 |
| Auto Document Feeder (ADF) media weight | 52 - 127 g/m² |
Ports & interfaces
| Specification | Value |
|---|---|
| USB port | Yes |
| USB version | 2.0 |
| Standard interfaces | SCSI, USB 2.0 |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 57 W |
| Power supply type | AC |
| AC input frequency | 50 - 60 Hz |
| Power consumption (PowerSave) | 7.5 W |
| Input voltage | 100-240 V |
| Power supply | 57 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 399 mm |
| Depth | 225 mm |
| Height | 193 mm |
| Weight | 8.5 kg |
Packaging content
| Specification | Value |
|---|---|
| Bundled software | Adobe Acrobat 9.0 Standard QuickScan Pro VRS Profession |
Sustainability
| Specification | Value |
|---|---|
| Sustainability certificates | ENERGY STAR |
System requirements
| Specification | Value |
|---|---|
| Server operating systems supported | Windows Server 2003 |
| Windows operating systems supported | Windows 2000 Professional, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x6 |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 5 - 35 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Operating temperature (T-T) | 42 - 95 °F |
Other features
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
