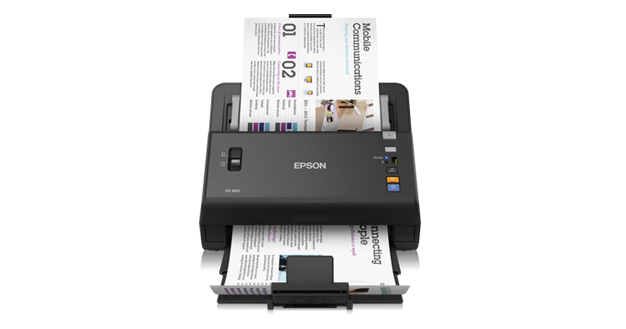

Epson WorkForce DS-860N

Epson WorkForce DS-860N

Model WorkForce DS-860NPart no. B11B222401BUEAN 5054629418505

69 specifications
  • Weight4.4 kg
  • ColourBlack
  • Maximum scan size216 x 3048 mm
  • Scanner typeSheet-fed scanner
  • Light sourceReadyScan LED
  • Standard input capacity80 sheets
See all specifications

Overview

Weight
4.4 kg
Colour
Black
Maximum scan size
216 x 3048 mm
Scanner type
Sheet-fed scanner
Light source
ReadyScan LED
Standard input capacity
80 sheets
Brand
Epson
Category
Scanner
Model
WorkForce DS-860N
Part number
B11B222401BU
EAN / UPC
5054629418505, 8715946541631
Also known as
Epson WorkForce DS-860N

Specifications

69 specifications in 15 groups

Scanning

Maximum scan size216 x 3048 mm
Optical scanning resolution600 x 600 DPI
Colour scanningYes
Duplex scanningYes
Input colour depth48 bit
Output colour depth24 bit
Film scanningNo

Design

Scanner typeSheet-fed scanner
Built-in displayYes
Product colourBlack
DisplayLCD

Performance

Light sourceReadyScan LED
Scan file formatsJPG, PDF, TIFF
Daily duty cycle (max)6000 pages
Scan driversTWAIN, WIA, ISIS
Ultrasonic sensorYes

Input capacity

Standard input capacity80 sheets
Auto document feeder (ADF) input capacity80 sheets

Paper handling

Maximum ISO A-series paper sizeA4
Scanning media types supportedPlastic Card, Post Card(JPN)
ISO A-series sizes (A0...A9)A3, A4, A6
ISO B-series sizes (B0...B9)B6, B5
LegalYes
LetterYes
Paper tray media weight40 - 210 g/m²
Auto Document Feeder (ADF) media weight40 - 220 g/m²
Maximum scan area (ADF)52 x 50.8 mm
Minimum scan area (ADF)50.8 x 50.8 mm

Ports & interfaces

USB portYes
USB version2.0
Standard interfacesEthernet, USB 2.0

Network

Ethernet LANYes
Supported network protocolsTCP/IP, DHCP, DNS, SNMP, SLP

Weight & dimensions

Width300 mm
Depth166 mm
Height158 mm
Weight4.4 kg

Packaging data

Quantity per pack1 pc(s)
Package width270 mm
Package depth393 mm
Package height465 mm
Package weight5 kg

Packaging content

Drivers includedYes
Bundled softwareEpson Document Capture Pro (Windows only), Epson Scan

System requirements

Compatible operating systemsWindows 7, Windows 8, Windows 8.1, Windows Server 2003 (32/64bit), Windows Server 2008 (32/64bit), Windows Server 2012 (64bit), Windows Vista, Windows XP, Windows XP x64
Server operating systems supportedWindows Server 2003, Windows Server 2003 x64, Windows Server 2008, Windows Server 2008 x64, Windows Server 2012
Windows operating systems supportedYes

Operational conditions

Operating temperature (T-T)5 - 35 °C
Storage temperature (T-T)-25 - 60 °C

Other features

Ethernet LAN data rates100,10,1000 Mbit/s
Image formats supportedBMP, JPEG, TIFF, MTIFF
InterfaceEthernet interface (100 Base-TX / 10 Base-T), Ethernet 1000
Box contentsDriver and utilities, Main unit, Power cable, Setup guide, USB cable, Warranty document
Linear scan speed (metric)Monochrome:65 pages/min - Color:65 pages/min , Resolution: 200 / 300 dpi, Monochrome:130 image/min - Color:130 image/min measured with Size: A4 , Resolution: 200 / 300 dpi
Output resolutions75, 100, 150, 200, 240, 300, 400 DPI
Printer featuresStandalone operation, RGB colour dropout, Skip blank page, A3 stitching (without carrier sheet), Punch holes removal, Pre-defined scanning settings, Automatic area segmentation, Automatic de-skew, Dual Image Output (Windows only), Auto-rotation, Text enhancement, Edge fill, Unsharp Mask (USM), Descr
Scanner featuresStandalone operation, RGB colour dropout, Skip blank page, A3 stitching (without carrier sheet), Punch holes removal, Pre-defined scanning settings, Automatic area segmentation, Automatic de-skew, Dual Image Output (Windows only), Auto-rotation, Text enhancement, Edge fill, Unsharp Mask (USM), Descr

Technical details

Data compressionHardware JPEG compression, PDF Compression

Logistics data

Products per pallet32 pc(s)
Country of originChina
Pallet gross height2.29 m
Pallet gross length120 cm
Pallet gross width80 cm
Pallet height (UK)2.29 m
Pallet length (UK)120 cm
Pallet width (UK)100 cm
Products per pallet (UK)40 pc(s)
Products per pallet layer8 pc(s)
Products per pallet layer (UK)10 pc(s)
