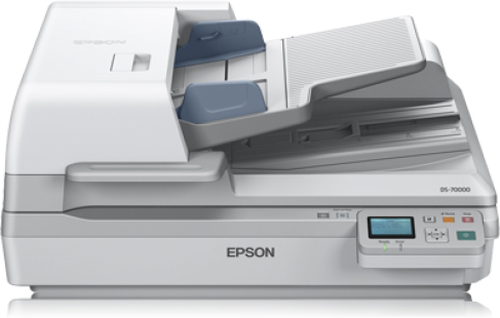

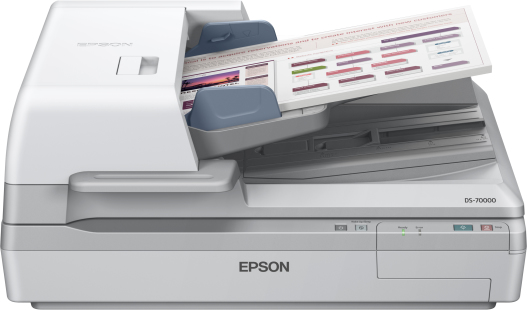

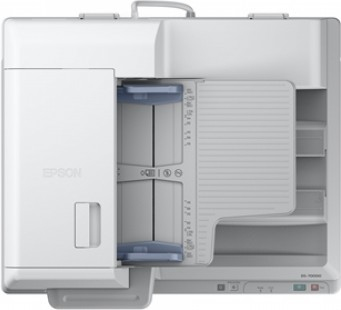

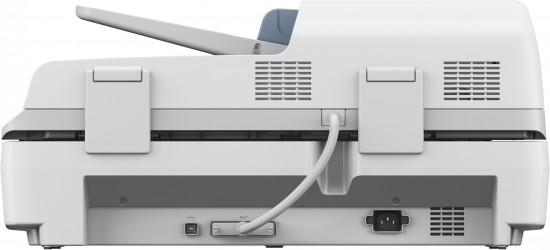

Epson WorkForce DS-70000

Epson WorkForce DS-70000

Model WorkForce DS-70000Part no. B11B204331BYEAN 5054629602997

82 specifications
  • Weight26.9 kg
  • ColourWhite
  • Maximum scan size297 x 2540 mm
  • Scanner typeFlatbed & ADF scanner
  • Light sourceReadyScan LED
  • Auto document feeder (ADF) input capacity200 sheets
See all specifications

Overview

Weight
26.9 kg
Colour
White
Maximum scan size
297 x 2540 mm
Scanner type
Flatbed & ADF scanner
Light source
ReadyScan LED
Auto document feeder (ADF) input capacity
200 sheets
Brand
Epson
Category
Scanner
Model
WorkForce DS-70000
Part number
B11B204331BY
EAN / UPC
5054629602997, 8715946510576
Also known as
Epson WorkForce DS-70000

Specifications

82 specifications in 17 groups

Scanning

Maximum scan size297 x 2540 mm
Optical scanning resolution600 x 600 DPI
Colour scanningYes
Duplex scanningYes
Input colour depth48 bit
Output colour depth24 bit
Film scanningNo
ADF scan speed (b/w, A4)70 ppm
ADF scan speed (colour, A4)70 ppm
Duplex ADF scan speed (b/w, A4)140 ipm
Duplex ADF scan speed (colour, A4)140 ipm

Design

Scanner typeFlatbed & ADF scanner
Built-in displayNo
Product colourWhite
DisplayLCD

Performance

Light sourceReadyScan LED
Scan file formatsJPG, PDF, TIFF
Daily duty cycle (max)8000 pages
Scan toE-mail, FTP, Network folder, Print
Scan driversTWAIN, SANE, WIA, ICA, ISIS
Ultrasonic sensorYes
Scanning noise level67.9 dB

Input capacity

Auto document feeder (ADF) input capacity200 sheets

Paper handling

Maximum ISO A-series paper sizeA3
Scanning media types supportedEnvelopes, Plain paper, Recycled paper, Thick paper, Thin paper, Transparencies
ISO A-series sizes (A0...A9)A3, A4, A5, A6
ISO B-series sizes (B0...B9)B6, B5, B4
LegalYes
LetterYes
Auto Document Feeder (ADF) media weight35 - 128 g/m²
Maximum scan area (ADF)68 x 120 mm

Ports & interfaces

USB portYes
USB version2.0
Optional connectivityEthernet
Standard interfacesUSB 2.0

Network

Ethernet LANNo

Power

Power consumption (typical)79 W
Power supply typeAC
Power consumption (standby)1.5 W
AC input frequency50 - 60 Hz
Power consumption (PowerSave)12.5 W
Input voltage100-240 V

Weight & dimensions

Width640 mm
Depth522 mm
Height289 mm
Weight26.9 kg

Packaging data

Quantity per pack1 pc(s)
Package width745 mm
Package depth875 mm
Package height534 mm
Package weight35 kg

Packaging content

Drivers includedNo
Bundled softwareEpson Document Capture Pro (Windows only), Epson Document Capture Pro Server (on free download), Epson Event Manager (Mac Only), Epson Scan, EpsonNet Config

Sustainability

Sustainability certificatesENERGY STAR

System requirements

Compatible operating systemsCitrix XenApp 5.0, Citrix XenApp 6.0, Mac OS 10.4+, Mac OS X 10.11.x, Presentation Server 4.5, Terminal Service, Windows 10, Windows 10 (32/64 bit), Windows 11, Windows 7, Windows 7 x64, Windows 8, Windows 8.1, Windows Server 2003 (32/64bit), Windows Server 2008 (32/64bit), Windows Server 2008 R2, W
Mac operating systems supportedMac OS X 10.4 Tiger, Mac OS X 10.5 Leopard, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion
Server operating systems supportedWindows Server 2003, Windows Server 2003 x64, Windows Server 2008, Windows Server 2008 R2
Windows operating systems supportedWindows 2000 Professional, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Wi

Operational conditions

Operating temperature (T-T)5 - 35 °C
Storage temperature (T-T)-25 - 60 °C
Operating relative humidity (H-H)10 - 80%
Storage relative humidity (H-H)10 - 85%

Other features

Ethernet LAN data rates100,10,1000 Mbit/s
Image formats supportedBMP, JPEG, TIFF, MTIFF
InterfaceUSB 2.0, Ethernet 1000 (optional)
Box contentsMain unit, Power cable, Setup guide, Software (CD), USB cable, Warranty document
Linear scan speed (metric)Monochrome:70 pages/min - Color:70 pages/min measured with Size: A4 , Resolution: 200 / 300 dpi, Monochrome:140 image/min - Color:140 image/min measured with Size: A4 , Resolution: 200 / 300 dpi
Printer featuresSkip blank page, Punch holes removal, Pre-defined scanning settings, Automatic area segmentation, Automatic de-skew, Automatic multi-document recognition, Dual Image Output (Windows only), Auto-rotation, Text enhancement, Edge fill, Unsharp Mask (USM), Descreening, Book spine correction, Automatic F
Scanner featuresSkip blank page, Punch holes removal, Pre-defined scanning settings, Automatic area segmentation, Automatic de-skew, Automatic multi-document recognition, Dual Image Output (Windows only), Auto-rotation, Text enhancement, Edge fill, Unsharp Mask (USM), Descreening, Book spine correction, Automatic F

Technical details

Data compressionHardware JPEG compression, TIFF Compression (JPEG(7) , CITT G4, LZW), PDF Compression

Logistics data

Products per pallet3 pc(s)
Country of originChina
Harmonized System (HS) code84716070
Pallet gross height180 cm
Pallet gross length120 cm
Pallet gross width80 cm
Pallet height (UK)180 cm
Pallet length (UK)120 cm
Pallet width (UK)100 cm
Products per pallet (UK)3 pc(s)
Products per pallet layer1 pc(s)
Products per pallet layer (UK)1 pc(s)
