Epson FastFoto FF-680W

Epson FastFoto FF-680W

Model FF-680WPart no. B11B237401BYEAN 8715946666211

63 specifications

Weight3.7 kg
ColourBlack
Maximum scan size216 x 910 mm
Scanner typeSheet-fed scanner
Sensor typeCIS
Auto document feeder (ADF) input capacity100 sheets

See all specifications

Overview

Weight: 3.7 kg
Colour: Black
Maximum scan size: 216 x 910 mm
Scanner type: Sheet-fed scanner
Sensor type: CIS
Auto document feeder (ADF) input capacity: 100 sheets

Brand: Epson
Category: Scanner
Model: FF-680W
Part number: B11B237401BY
EAN / UPC: 8715946666211
Also known as: Epson FastFoto FF-680W

Specifications

63 specifications in 14 groups

Scanning

Specification	Value
Maximum scan size	216 x 910 mm
Optical scanning resolution	600 x 600 DPI
Colour scanning	Yes
Duplex scanning	Yes
Output colour depth	24 bit
Output monochrome depth	8 bit
ADF scan speed (b/w, A4)	45 ppm
ADF scan speed (colour, A4)	45 ppm

Design

Specification	Value
Scanner type	Sheet-fed scanner
Built-in display	No
Product colour	Black

Performance

Specification	Value
Sensor type	CIS
Scan file formats	JPEG, PDF, TIFF
Image quality improvement	Colour restoration
Scan to	E-mail, Network folder
Ultrasonic sensor	Yes

Input capacity

Specification	Value
Auto document feeder (ADF) input capacity	100 sheets

Paper handling

Specification	Value
Maximum ISO A-series paper size	A4
ISO A-series sizes (A0...A9)	A4
Paper tray media weight	0 - 0 g/m²

Ports & interfaces

Specification	Value
USB port	Yes
USB version	3.2 Gen 1 (3.1 Gen 1)
Standard interfaces	USB 3.2 Gen 1 (3.1 Gen 1), Wireless LAN

Network

Specification	Value
Wi-Fi	Yes
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)

Power

Specification	Value
Power consumption (typical)	18 W
Power supply type	AC
Power consumption (standby)	9.2 W
Power consumption (off)	0.1 W
AC input frequency	50 - 60 Hz
Sleep mode	Yes
Input voltage	100-240 V
Power consumption (sleep)	1.4 W

Weight & dimensions

Specification	Value
Width	296 mm
Depth	169 mm
Height	176 mm
Weight	3.7 kg

Packaging data

Specification	Value
Quantity per pack	1 pc(s)
Package width	256 mm
Package depth	369 mm
Package height	294 mm
Package weight	4.99 kg

Packaging content

Specification	Value
Manual	Yes
AC adapter included	Yes
Cables included	AC, USB
Drivers included	Yes
Bundled software	Epson FastFoto, Epson ScanSmart

System requirements

Specification	Value
Compatible operating systems	Mac OS X 10.11.x, Mac OS X 10.12.x, Windows 10, Windows 11 or later, Windows 7, Windows 7 x64, Windows 8 (32/64 bit)
Mac operating systems supported	Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra
Windows operating systems supported	Windows 10, Windows 7, Windows 8

Other features

Specification	Value
Image formats supported	JPEG, TIFF
Interface	USB 3.0, Wireless LAN IEEE 802.11b/g/n

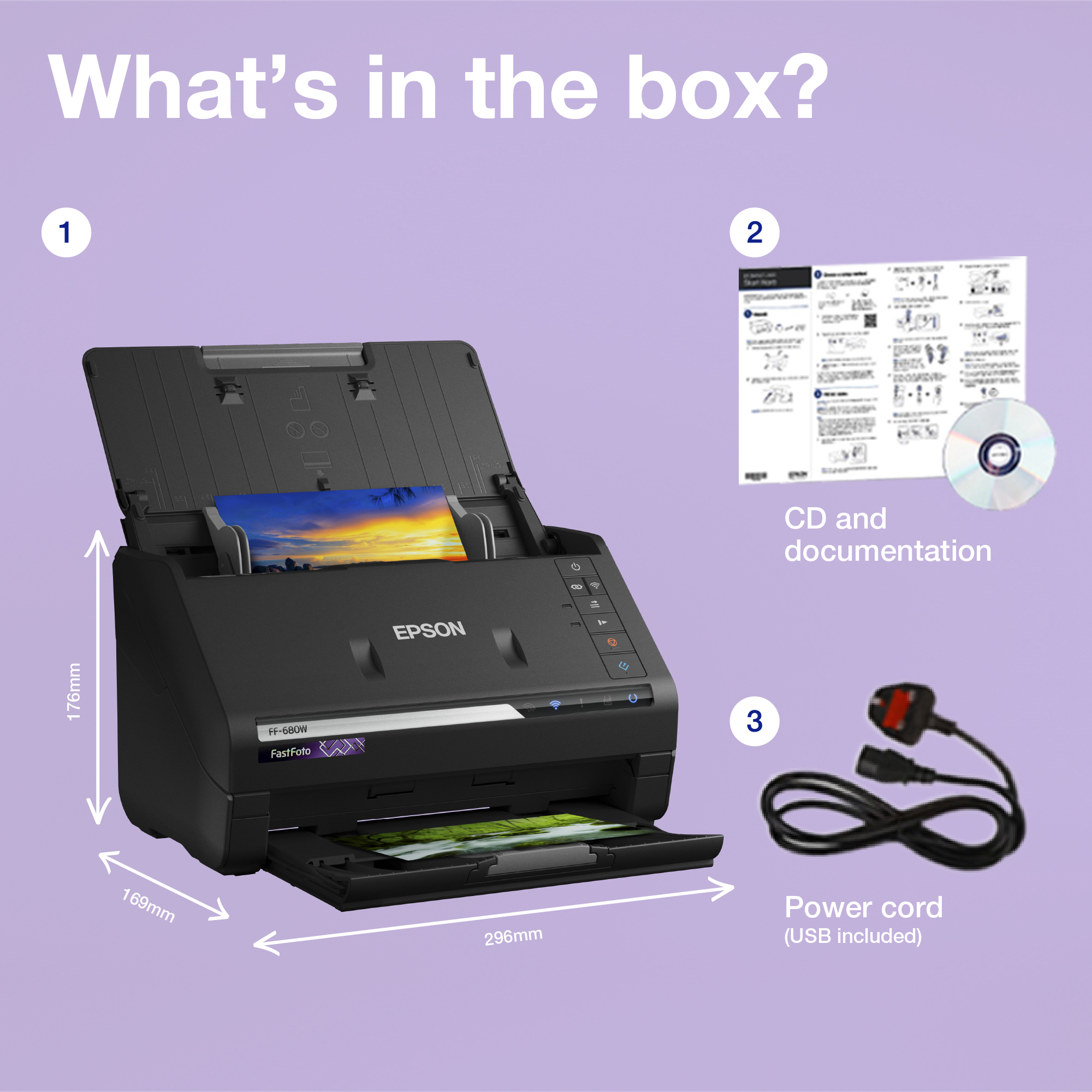

Box contents	CD Manual, Carrier sheet, Driver and utilities, External AC power adapter with power cord, Main unit, Quick Start Guide, USB cable
Linear scan speed (metric)	Monochrome:45 pages/min - Color:45 pages/min measured with Size: A4 , Resolution: 300 dpi
Output resolutions	300, 600 DPI
Printer features	Skip blank page, Punch holes removal, Automatic de-skew, Auto-rotation, Advanced cropping feature for Auto size, Automatic Folder Creation, Scan to Cloud Storage
Scanner features	Skip blank page, Punch holes removal, Automatic de-skew, Auto-rotation, Advanced cropping feature for Auto size, Automatic Folder Creation, Scan to Cloud Storage

Logistics data

Specification	Value
Products per pallet	63 pc(s)
Country of origin	Indonesia
Harmonized System (HS) code	84716070
Products per pallet (UK)	77 pc(s)
Products per pallet layer	9 pc(s)
Products per pallet layer (UK)	11 pc(s)
