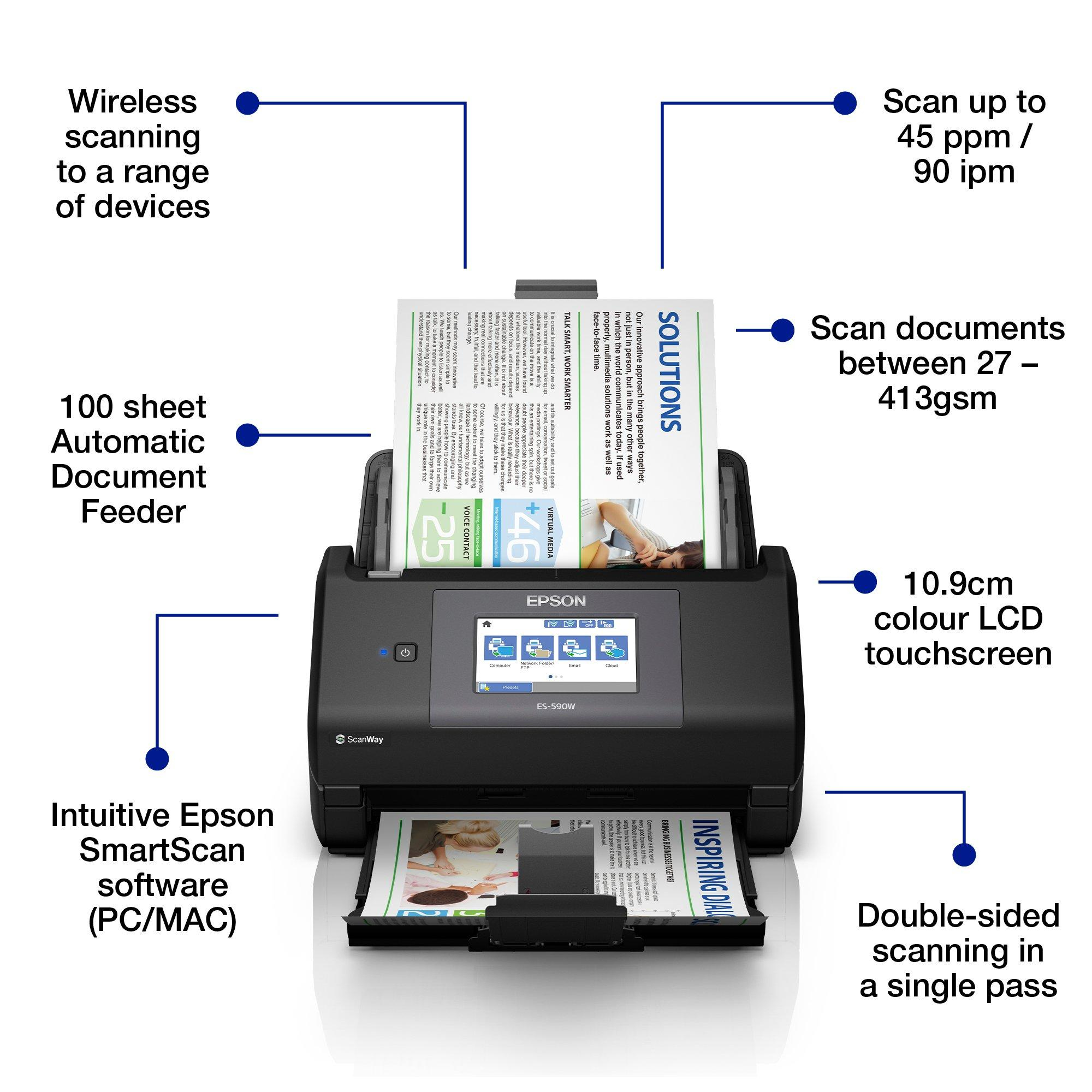

WorkForce ES-590W Sheet-fed scanner
600 x 600 DPI A4 Black
Model ES-590WPart no. B11B288401EAN 8715946745787
58 specifications
- Weight3.7 kg
- ColourBlack
- Maximum scan size215.9 x 6096 mm
- Scanner typeSheet-fed scanner
- Sensor typeCIS
- Standard input capacity100 sheets
Overview
- Weight
- 3.7 kg
- Colour
- Black
- Maximum scan size
- 215.9 x 6096 mm
- Scanner type
- Sheet-fed scanner
- Sensor type
- CIS
- Standard input capacity
- 100 sheets
- Brand
- Epson
- Category
- Scanner
- Model
- ES-590W
- Part number
- B11B288401
- EAN / UPC
- 8715946745787
- Also known as
- Epson WorkForce ES-590W Sheet-fed scanner 600 x 600 DPI A4 Black
Specifications
58 specifications in 14 groups
Scanning
| Specification | Value |
|---|---|
| Maximum scan size | 215.9 x 6096 mm |
| Optical scanning resolution | 600 x 600 DPI |
| Colour scanning | Yes |
| Duplex scanning | Yes |
| Input colour depth | 30 bit |
| Output colour depth | 24 bit |
| Output monochrome depth | 8 bit |
| ADF scan speed (b/w, A4) | 45 ppm |
| ADF scan speed (colour, A4) | 45 ppm |
| Black/white scanning colour modes | Monochrome |
Design
| Specification | Value |
|---|---|
| Scanner type | Sheet-fed scanner |
| Built-in display | Yes |
| Product colour | Black |
| Display | LCD |
| Touchscreen | Yes |
| Colour display | Yes |
| Control type | Touch |
Performance
| Specification | Value |
|---|---|
| Sensor type | CIS |
| Light source | ReadyScan LED |
| Scan file formats | BMP, JPEG, TIFF, PDF, PNG |
| Daily duty cycle (max) | 5000 pages |
| Scan to | E-mail, FTP, Network folder, USB, Memory card, Cloud |
| Scan drivers | TWAIN, ISIS, WIA, SANE, ICA |
| Ultrasonic sensor | Yes |
| Scanning noise level | 47 dB |
Input capacity
| Specification | Value |
|---|---|
| Standard input capacity | 100 sheets |
Paper handling
| Specification | Value |
|---|---|
| Maximum ISO A-series paper size | A4 |
| Scanning media types supported | Plastic Card, Post Card(JPN), Business Card |
| ISO A-series sizes (A0...A9) | A4, A5, A6 |
| ISO B-series sizes (B0...B9) | B5, B6 |
| Legal | Yes |
| Letter | Yes |
| Paper tray media weight | 27 - 413 g/m² |
Ports & interfaces
| Specification | Value |
|---|---|
| USB port | Yes |
| USB version | 3.2 Gen 1 (3.1 Gen 1) |
Network
| Specification | Value |
|---|---|

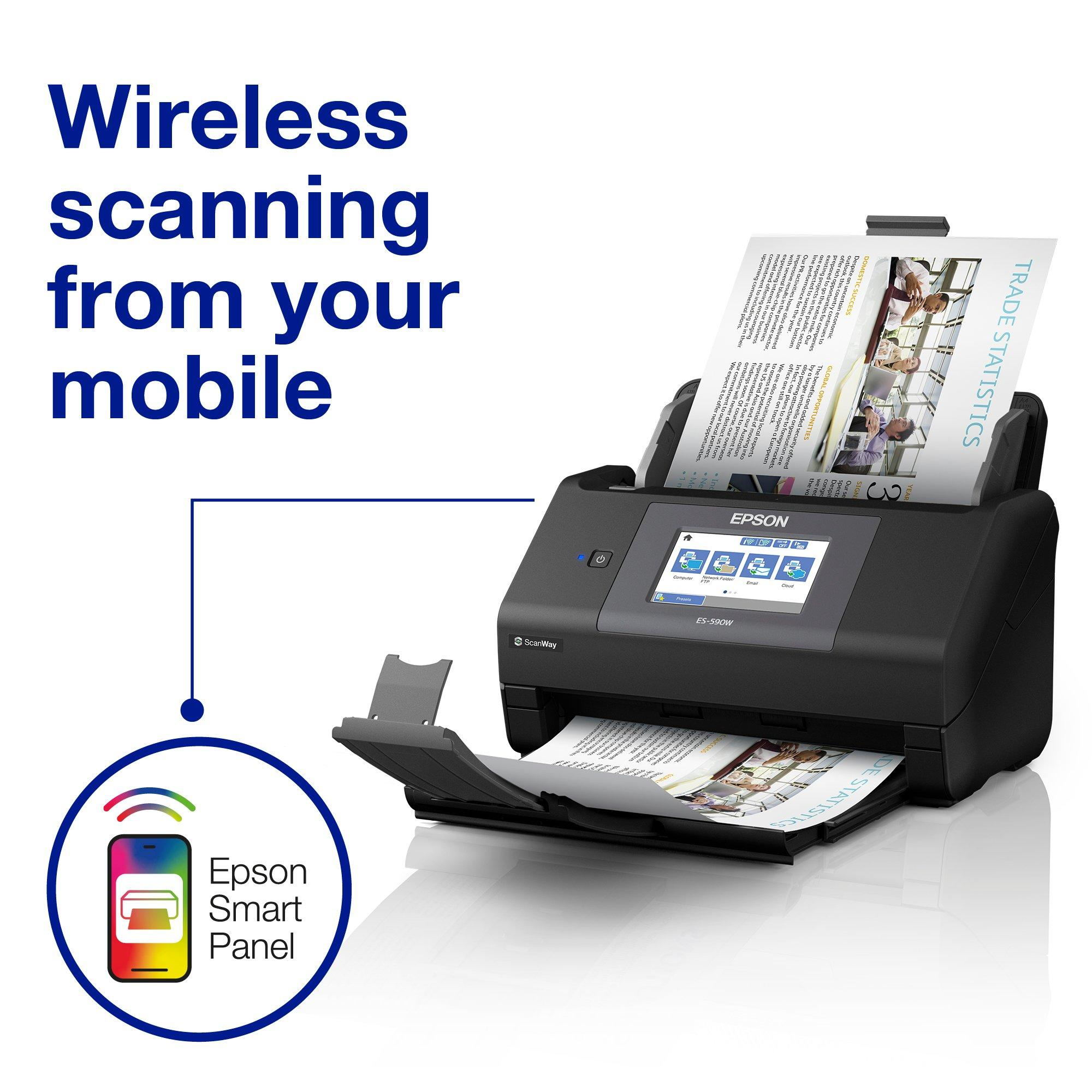

| Wi-Fi | Yes |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| Wi-Fi Direct | Yes |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 14 W |
| Power supply type | AC |
| Power consumption (off) | 0.1 W |
| AC input frequency | 50 - 60 Hz |
| Sleep mode | Yes |
| Input voltage | 100 - 240 V |
| Power consumption (sleep) | 0.9 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 296 mm |
| Depth | 169 mm |
| Height | 167 mm |
| Weight | 3.7 kg |
Packaging data
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
Packaging content
| Specification | Value |
|---|---|
| Cables included | AC, USB |
System requirements
| Specification | Value |
|---|---|
| Mac operating systems supported | Mac OS X 11.0 Big Sur, Mac OS 12.4, Mac OS X 12.0 Monterey, Mac OS X 10.11 El Capitan, Mac OS 13.1, Mac OS 14.5, Mac OS 26 Tahoe, Mac OS X 13.0 Ventura, Mac OS X 14.0 Sonoma, Mac OS X 15.0 Sequoia |
| Windows operating systems supported | Windows 10, Windows 10 x64, Windows 11, Windows 7, Windows 7 x64, Windows 8, Windows 8 x64 |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 5 - 35 °C |
| Storage temperature (T-T) | -25 - 60 °C |
| Operating relative humidity (H-H) | 15 - 80% |
| Storage relative humidity (H-H) | 15 - 85% |
Logistics data
| Specification | Value |
|---|---|
| Country of origin | Indonesia |
