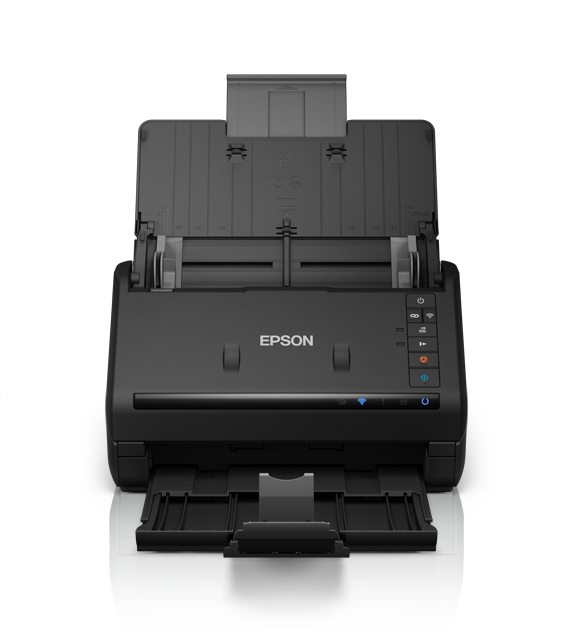

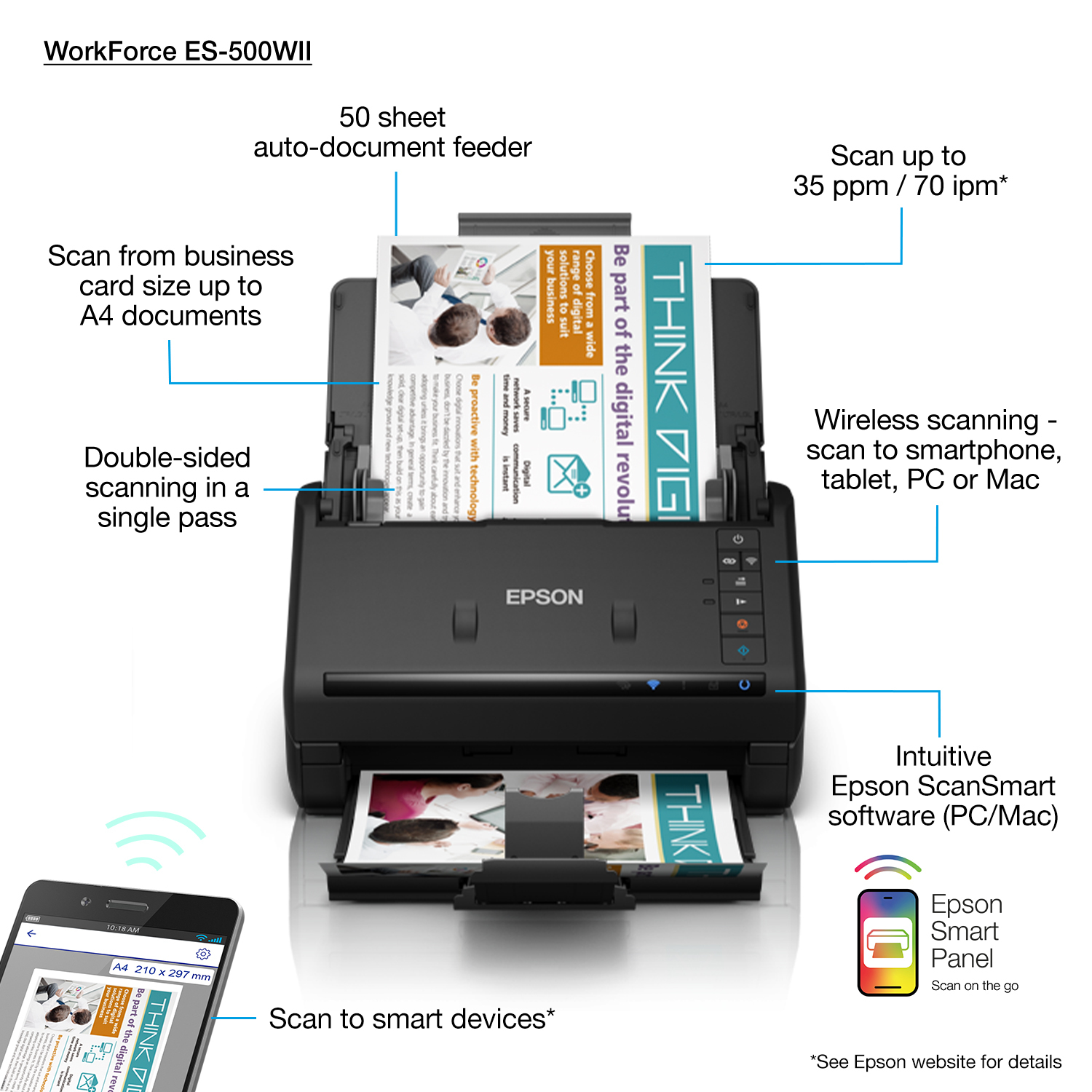

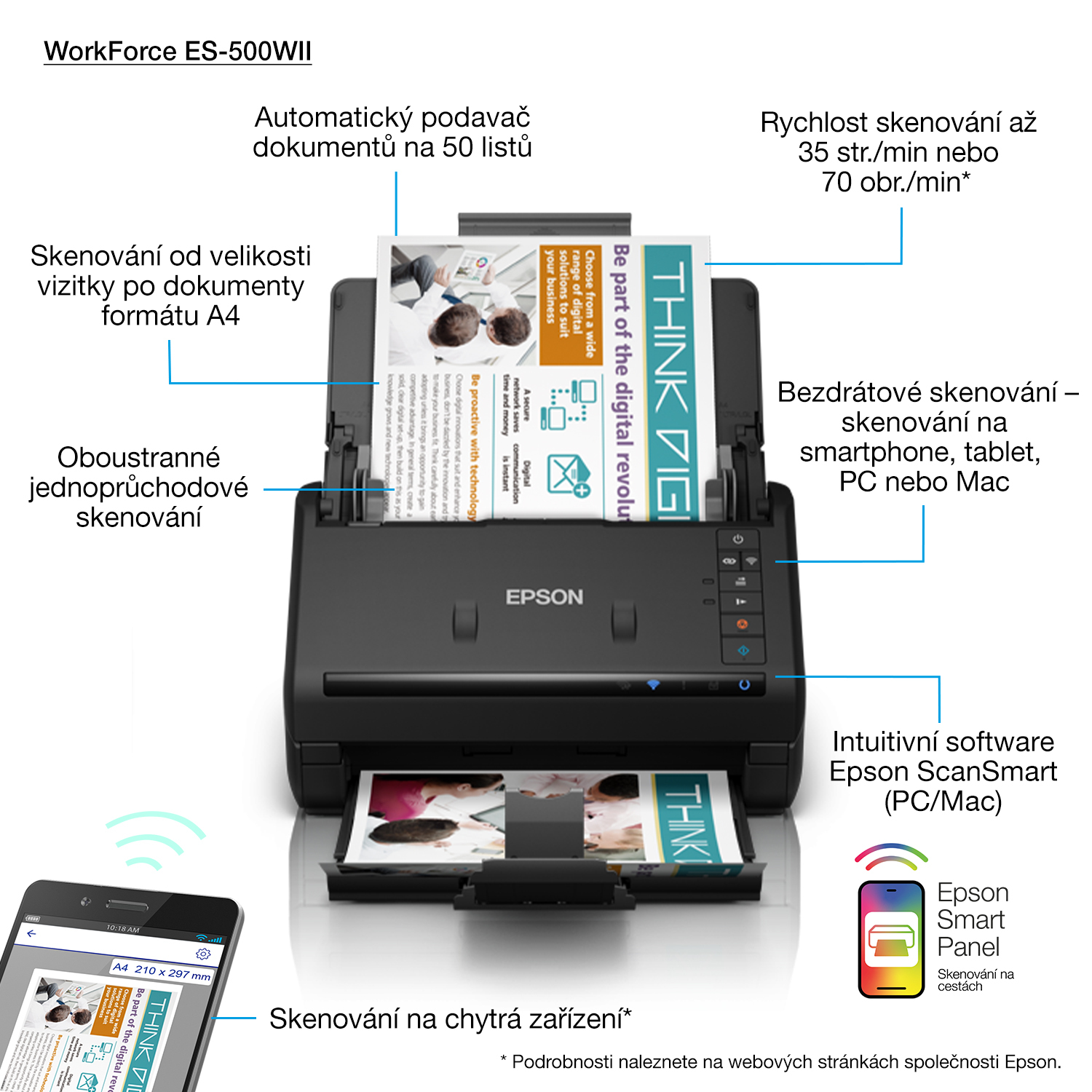

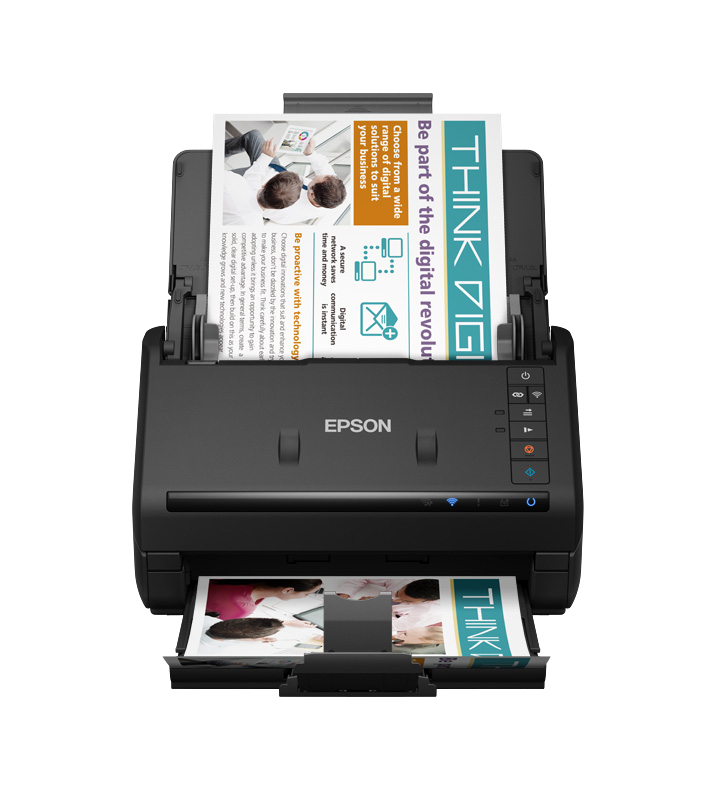

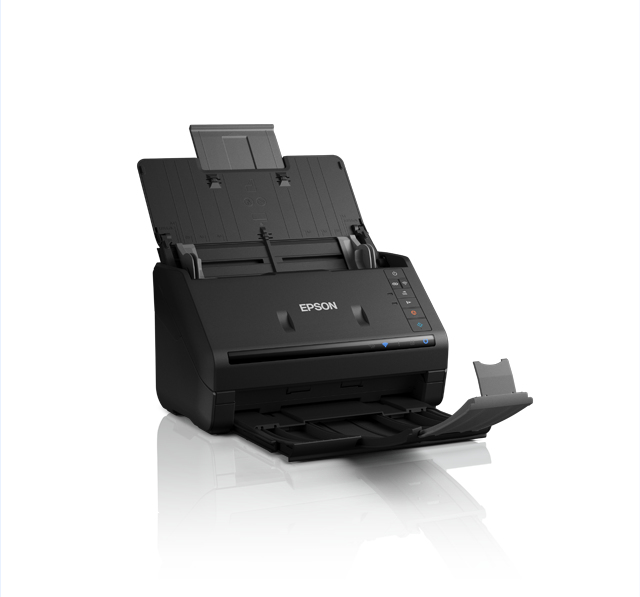

WorkForce ES-500WII Sheet-fed scanner
600 x 600 DPI A4 Black
Model ES-500WIIPart no. B11B263401EAN 8715946686028
66 specifications
- Weight3.7 kg
- ColourBlack
- Maximum scan size215.9 x 6069 mm
- Scanner typeSheet-fed scanner
- Sensor typeCIS
- Standard input capacity50 sheets
Overview
- Weight
- 3.7 kg
- Colour
- Black
- Maximum scan size
- 215.9 x 6069 mm
- Scanner type
- Sheet-fed scanner
- Sensor type
- CIS
- Standard input capacity
- 50 sheets
- Brand
- Epson
- Category
- Scanner
- Model
- ES-500WII
- Part numbers
- B11B263401, B11B263401BY
- EAN / UPC
- 8715946686028, 8715946686059
- Also known as
- Epson WorkForce ES-500WII Sheet-fed scanner 600 x 600 DPI A4 Black
Specifications
66 specifications in 15 groups
Scanning
| Specification | Value |
|---|---|
| Maximum scan size | 215.9 x 6069 mm |
| Optical scanning resolution | 600 x 600 DPI |
| Colour scanning | Yes |
| Duplex scanning | Yes |
| Input colour depth | 30 bit |
| Output colour depth | 24 bit |
| ADF scan speed (b/w, A4) | 35 ppm |
| ADF scan speed (colour, A4) | 35 ppm |
| Black/white scanning colour modes | Monochrome |
Design
| Specification | Value |
|---|---|
| Scanner type | Sheet-fed scanner |
| Built-in display | No |
| Product colour | Black |
Performance
| Specification | Value |
|---|---|
| Sensor type | CIS |
| Scan file formats | |
| Daily duty cycle (max) | 4000 pages |
| Scan to | E-mail, Network folder |
| Scan drivers | TWAIN, WIA, ISIS, SANE, ICA |
| Ultrasonic sensor | Yes |
Input capacity
| Specification | Value |
|---|---|
| Standard input capacity | 50 sheets |
| Auto document feeder (ADF) input capacity | 100 sheets |
Paper handling
| Specification | Value |
|---|---|
| Maximum ISO A-series paper size | A4 |
| ISO B-series sizes (B0...B9) | B5, B6 |
| Auto Document Feeder (ADF) media weight | 27 - 413 g/m² |
| Minimum scan area (ADF) | 50.8 x 50.8 mm |
Ports & interfaces
| Specification | Value |
|---|---|
| USB port | Yes |
| USB version | 2.0/3.2 Gen 1 (3.1 Gen 1) |
| USB connector type | USB Type-A |
Network
| Specification | Value |
|---|---|
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 12 W |
| Power supply type | AC |
| Power consumption (standby) | 0.5 W |
| Power consumption (off) | 0.1 W |
| AC input frequency | 50 - 60 Hz |
| Sleep mode | Yes |
| Input voltage | 100 - 240 V |
| Power consumption (sleep) | 1.3 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 296 mm |
| Depth | 169 mm |
| Height | 176 mm |
| Weight | 3.7 kg |
Packaging data
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
| Package width | 250 mm |
| Package depth | 365 mm |
| Package height | 285 mm |
| Package weight | 4.56 kg |
Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
| Cables included | AC |
| Drivers included | Yes |
| Bundled software | Epson ScanSmart |
System requirements
| Specification | Value |
|---|---|
| Compatible operating systems | Mac OS X 10.11.x oder höher, Windows 10 (32/64 bit), Windows 7 (32/64 bit), Windows 8 (32/64 Bit) |
| Mac operating systems supported | Mac OS X 10.11 El Capitan |
| Windows operating systems supported | Windows 10, Windows 10 x64, Windows 7, Windows 7 x64, Windows 8, Windows 8 x64 |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 5 - 35 °C |
| Storage temperature (T-T) | -25 - 60 °C |
| Operating relative humidity (H-H) | 15 - 80% |
| Storage relative humidity (H-H) | 15 - 85% |
Other features
| Specification | Value |
|---|---|
| Image formats supported | BMP, JPEG, TIFF, PNG |
| Minimum scan size | 50.8 mm x 50.8 mm |
| Output resolutions | 75, 100, 150, 200, 240, 300, 600, 1200 dpi |
Logistics data
| Specification | Value |
|---|---|
| Products per pallet | 63 pc(s) |
| Country of origin | Indonesia |
| Harmonized System (HS) code | 84716070 |
| Pallet gross weight | 0 g |
| Pallet weight (UK) | 0 g |
| Products per pallet (UK) | 84 pc(s) |
