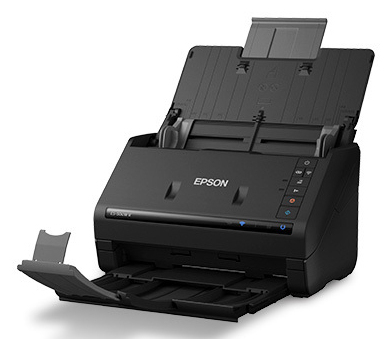

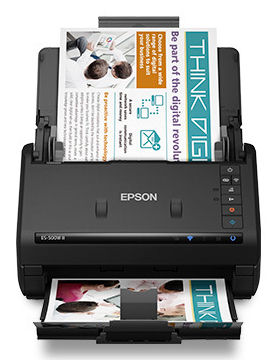

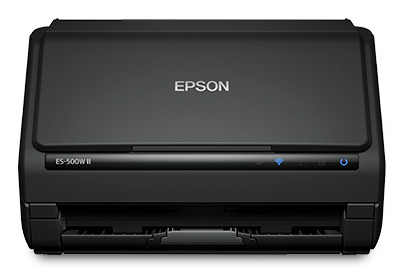

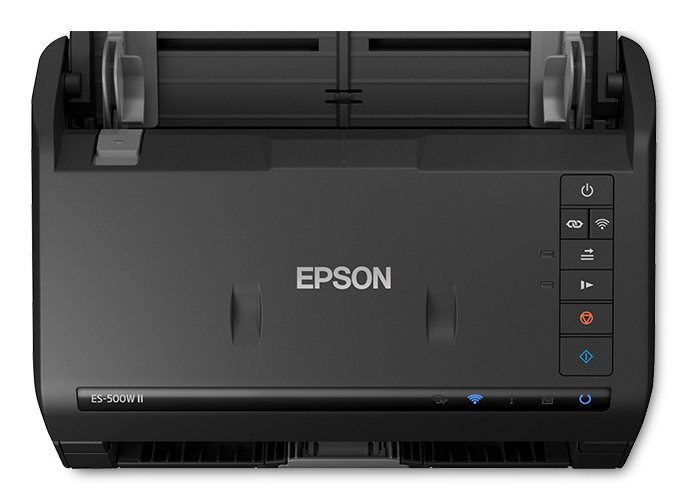

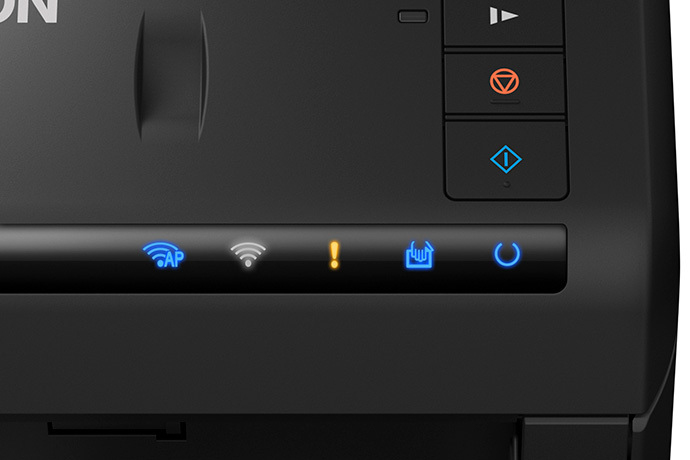

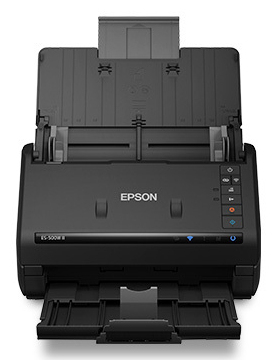

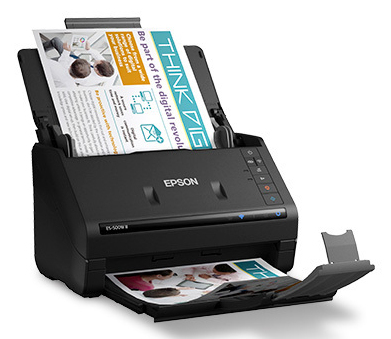

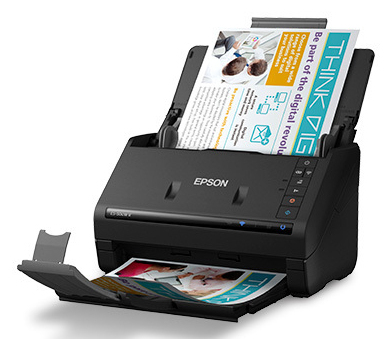

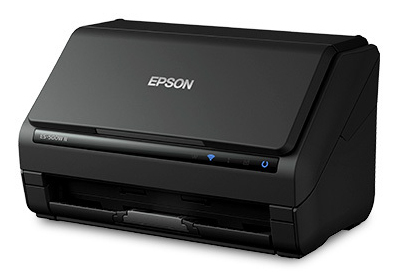

ES-500W II
Model ES-500W IIPart no. B11B263201EAN 010343960190
46 specifications
- Weight3.7 kg
- ColourBlack
- Maximum scan size215.9 x 6069 mm
- Scanner typeSheet-fed scanner
- Sensor typeCIS
- Standard input capacity50 sheets
Overview
- Weight
- 3.7 kg
- Colour
- Black
- Maximum scan size
- 215.9 x 6069 mm
- Scanner type
- Sheet-fed scanner
- Sensor type
- CIS
- Standard input capacity
- 50 sheets
- Brand
- Epson
- Category
- Scanner
- Model
- ES-500W II
- Part number
- B11B263201
- EAN / UPC
- 010343960190
- Also known as
- Epson WorkForce ES-500WII
Specifications
46 specifications in 12 groups
Scanning
| Specification | Value |
|---|---|
| Maximum scan size | 215.9 x 6069 mm |
| Optical scanning resolution | 600 x 600 DPI |
| Colour scanning | Yes |
| Duplex scanning | Yes |
| Input colour depth | 30 bit |
| Output colour depth | 24 bit |
Design
| Specification | Value |
|---|---|
| Scanner type | Sheet-fed scanner |
| Built-in display | No |
| Product colour | Black |
Performance
| Specification | Value |
|---|---|
| Sensor type | CIS |
| Light source | ReadyScan LED |
| Daily duty cycle (max) | 4000 pages |
| Scan to | E-mail, HTTP, Network folder |
| Scan drivers | ICA, ISIS, SANE, TWAIN, WIA |
| Ultrasonic sensor | Yes |
Input capacity
| Specification | Value |
|---|---|
| Standard input capacity | 50 sheets |
| Auto document feeder (ADF) input capacity | 50 sheets |
Paper handling
| Specification | Value |
|---|---|
| Maximum ISO A-series paper size | A4 |
| Scanning media types supported | Business Card, Plastic Card, Post Card(JPN) |
| ISO A-series sizes (A0...A9) | A4, A5, A6 |
| ISO B-series sizes (B0...B9) | B5, B6 |
| Legal | Yes |
| Letter | Yes |
| Auto Document Feeder (ADF) media weight | 27 - 413 g/m² |
Ports & interfaces
| Specification | Value |
|---|---|
| USB port | Yes |
| USB version | 2.0/3.2 Gen 1 (3.1 Gen 1) |
Network
| Specification | Value |
|---|---|
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 12 W |
| Power supply type | AC |
| Power consumption (standby) | 0.5 W |
| Power consumption (off) | 0.1 W |
| AC input frequency | 50 - 60 Hz |
| Input voltage | 100 - 240 V |
| Power consumption (sleep) | 1.3 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 296 mm |
| Depth | 169 mm |
| Height | 176 mm |
| Weight | 3.7 kg |
Packaging content
| Specification | Value |
|---|---|
| Cables included | USB |
System requirements
| Specification | Value |
|---|---|
| Mac operating systems supported | Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina, Mac OS X 10.2 Jaguar, Mac OS X 10.3 Panther, Mac OS X 10.4 Tiger, Mac OS X 10.5 Leopard, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 1 |
| Windows operating systems supported | Windows 10, Windows 10 x64, Windows 7, Windows 7 x64, Windows 8, Windows 8 x64 |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 5 - 35 °C |
| Storage temperature (T-T) | -25 - 60 °C |
| Operating relative humidity (H-H) | 15 - 80% |
| Storage relative humidity (H-H) | 15 - 85% |
