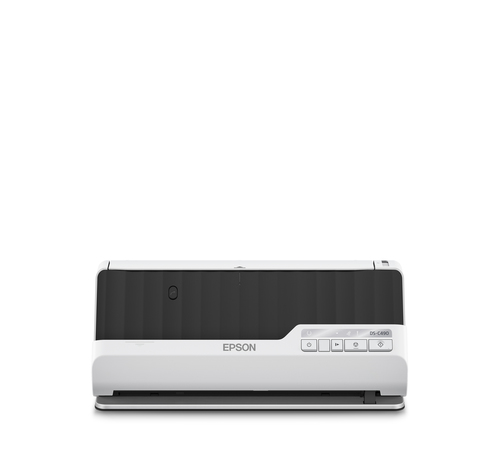

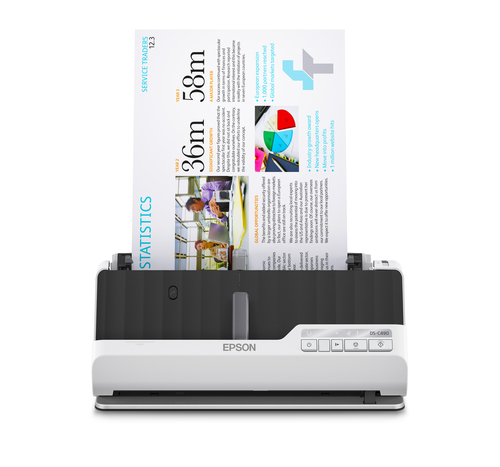

DS-C490 ADF + Sheet-fed scanner
600 x 600 DPI A4 Black, White
Model DS-C490Part no. B11B271401EAN 010343979291
39 specifications
- Weight1.9 kg
- ColourBlack, White
- Maximum scan size215.9 x 5588 mm
- Scanner typeADF + Sheet-fed scanner
- Light sourceReadyScan LED
- Standard input capacity20 sheets
Overview
- Weight
- 1.9 kg
- Colour
- Black, White
- Maximum scan size
- 215.9 x 5588 mm
- Scanner type
- ADF + Sheet-fed scanner
- Light source
- ReadyScan LED
- Standard input capacity
- 20 sheets
- Brand
- Epson
- Category
- Scanner
- Model
- DS-C490
- Part numbers
- B11B271401, B11B271401BY, B11B271201
- EAN / UPC
- 010343979291, 8715946718293, 8715946720487
- Also known as
- Epson DS-C490 ADF + Sheet-fed scanner 600 x 600 DPI A4 Black, White
Specifications
39 specifications in 10 groups
Scanning
| Specification | Value |
|---|---|
| Maximum scan size | 215.9 x 5588 mm |
| Optical scanning resolution | 600 x 600 DPI |
| Duplex scanning | Yes |
| Input colour depth | 30 bit |
| Output colour depth | 24 bit |
| Output monochrome depth | 8 bit |
Design
| Specification | Value |
|---|---|
| Scanner type | ADF + Sheet-fed scanner |
| Built-in display | No |
| Product colour | Black, White |
| Control type | Buttons |
Performance
| Specification | Value |
|---|---|
| Light source | ReadyScan LED |
| Daily duty cycle (max) | 6500 pages |
| Scan to | E-mail, FTP, Network folder, Print |
| Scan drivers | ICA, ISIS, SANE, WIA |
Input capacity
| Specification | Value |
|---|---|
| Standard input capacity | 20 sheets |
Paper handling
| Specification | Value |
|---|---|
| Maximum ISO A-series paper size | A4 |
| Scanning media types supported | Business Card, Plastic Card, Post Card(JPN) |
| ISO A-series sizes (A0...A9) | A4, A5, A6 |
| ISO B-series sizes (B0...B9) | B5, B6 |
| Legal | Yes |
| Letter | Yes |
| Paper tray media weight | 40 - 413 g/m² |
Ports & interfaces
| Specification | Value |
|---|---|
| USB port | Yes |
| USB version | 2.0 |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 10 W |
| Power supply type | AC |
| Power consumption (standby) | 1 W |
| Power consumption (PowerSave) | 4 W |
| Input voltage | 100 - 240 V |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 296 mm |
| Depth | 104 mm |
| Height | 125 mm |
| Weight | 1.9 kg |
System requirements
| Specification | Value |
|---|---|
| Server operating systems supported | Windows Server 2003, Windows Server 2008, Windows Server 2008 R2, Windows Server 2012 R2, Windows Server 2012 x64, Windows Server 2016 |
| Windows operating systems supported | Windows 10, Windows 11, Windows 7, Windows 8 |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 5 - 35 °C |
| Storage temperature (T-T) | -25 - 60 °C |
| Operating relative humidity (H-H) | 15 - 80% |
| Storage relative humidity (H-H) | 15 - 85% |
