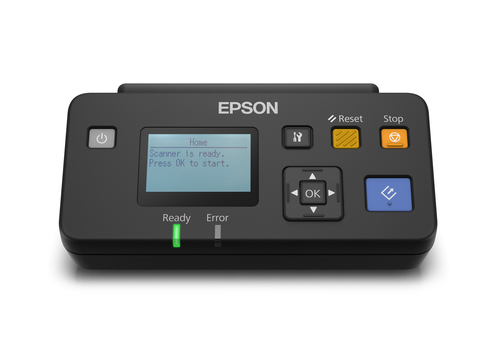

WorkForce DS-870N
Model DS-870NPart no. B11B250401BTEAN 8592978259693
78 specifications
- ColourBlack, White
- Optical scanning resolution600 x 600 DPI
- Scanner typeSheet-fed scanner
- Sensor typeCIS
- Standard input capacity7000 sheets
- Maximum ISO A-series paper sizeA3
Overview
- Colour
- Black, White
- Optical scanning resolution
- 600 x 600 DPI
- Scanner type
- Sheet-fed scanner
- Sensor type
- CIS
- Standard input capacity
- 7000 sheets
- Maximum ISO A-series paper size
- A3
- Brand
- Epson
- Category
- Scanner
- Model
- DS-870N
- Part number
- B11B250401BT
- EAN / UPC
- 8592978259693, 8715946676227
- Also known as
- Epson WorkForce DS-870N
Specifications
78 specifications in 14 groups
Scanning
| Specification | Value |
|---|---|
| Optical scanning resolution | 600 x 600 DPI |
| Colour scanning | Yes |
| Duplex scanning | Yes |
| Input colour depth | 30 bit |
| Input greyscale depth | 10 bit |
| Output colour depth | 24 bit |
| Output greyscale depth | 8 bit |
| Output monochrome depth | 1 bit |
| ADF scan speed (b/w, A4) | 65 ppm |
| ADF scan speed (colour, A4) | 65 ppm |
Design
| Specification | Value |
|---|---|
| Scanner type | Sheet-fed scanner |
| Built-in display | Yes |
| Product colour | Black, White |
| Display | LCD |
Performance
| Specification | Value |
|---|---|
| Sensor type | CIS |
| Scan file formats | BMP, JPEG, PDF, PNG, TIFF |
| Daily duty cycle (max) | 7000 pages |
| Scan to | E-mail, FTP, Software, Print, Network folder, USB |
| Password protection | Yes |
| Scan drivers | TWAIN, ISIS, SANE, WIA |
| Ultrasonic double sheet detection | Yes |
| Ultrasonic sensor | Yes |
Input capacity
| Specification | Value |
|---|---|
| Standard input capacity | 7000 sheets |
| Auto document feeder (ADF) input capacity | 100 sheets |
Paper handling
| Specification | Value |
|---|---|
| Maximum ISO A-series paper size | A3 |
| Scanning media types supported | Business Card, Plastic Card |
| ISO A-series sizes (A0...A9) | A3, A4, A5, A6, A7 |
| ISO B-series sizes (B0...B9) | B4, B5, B6 |
| Legal | Yes |
| Letter | Yes |
| Auto Document Feeder (ADF) media weight | 27 - 413 g/m² |
Ports & interfaces
| Specification | Value |
|---|---|
| USB port | Yes |
| USB version | 3.2 Gen 1 (3.1 Gen 1) |
| Standard interfaces | RJ-45, USB 3.2 Gen 1 (3.1 Gen 1) |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| IPv6 support | Yes |
| Supported network protocols (IPv6) | TCP/IP, DHCP, DNS, SNMP, SLP |
| Supported network protocols | TCP/IP, DHCP, DNS, SNMP, SLP |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 18 W |
| Power supply type | AC |
| Power consumption (standby) | 8.5 W |
| Power consumption (off) | 0.1 W |
| AC input frequency | 50 - 60 Hz |
| Sleep mode | Yes |
| Input voltage | 100 - 240 V |
| Power consumption (sleep) | 1.4 W |
| Output voltage | 50/60 V |
Packaging data
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
| Package width | 270 mm |
| Package depth | 370 mm |
| Package height | 460 mm |
| Package weight | 5.8 kg |
Packaging content
| Specification | Value |
|---|---|
| Software CD | Yes |
| Warranty card | Yes |
| AC adapter included | Yes |
| Cables included | AC |
| Quick start guide | Yes |
| Drivers included | Yes |
| Bundled software | Document Capture Pro 2.0, Epson Device Admin, Epson Scan 2 |
System requirements
| Specification | Value |
|---|---|
| Compatible operating systems | Mac OS 10.10.x, Windows 10, Windows 7, Windows 8, Windows 8.1, Windows Server 2003, Windows Server 2008 (32/64 Bit), Windows Server 2012 R2, Windows Vista, Windows XP |
| Mac operating systems supported | Mac OS X 10.10 Yosemite |
| Server operating systems supported | Windows Server 2003, Windows Server 2008, Windows Server 2008 x64, Windows Server 2012 R2 |
| Windows operating systems supported | Windows 10, Windows 7, Windows 8, Windows 8.1, Windows Vista, Windows XP |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 5 - 35 °C |
| Storage temperature (T-T) | 25 - 60 °C |
| Operating relative humidity (H-H) | 15 - 80% |
| Storage relative humidity (H-H) | 15 - 85% |
Other features
| Specification | Value |
|---|---|
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Image formats supported | BMP, JPEG, TIFF, PNG |
| Output resolutions | 1200 dpi |
Logistics data
| Specification | Value |
|---|---|
| Products per pallet | 32 pc(s) |
| Country of origin | China |
| Harmonized System (HS) code | 84716070 |
| Pallet gross weight | 0 g |
| Pallet weight (UK) | 0 g |
| Products per pallet (UK) | 36 pc(s) |
| Products per pallet layer | 8 pc(s) |
| Products per pallet layer (UK) | 9 pc(s) |
