Epson WorkForce DS-870 Sheet-fed scanner

WorkForce DS-870 Sheet-fed scanner

600 x 600 DPI A4 Grey, White

Model DS-870Part no. B11B250503EAN 8906049013341

78 specifications

Display3.81 cm (1.5")
Weight3.6 kg
ColourGrey, White
Optical scanning resolution600 x 600 DPI
Scanner typeSheet-fed scanner
Sensor typeCIS

See all specifications

Overview

Display: 3.81 cm (1.5")
Weight: 3.6 kg
Colour: Grey, White
Optical scanning resolution: 600 x 600 DPI
Scanner type: Sheet-fed scanner
Sensor type: CIS

Brand: Epson
Category: Scanner
Model: DS-870
Part numbers: B11B250503, B11B250401, B11B250401BY, B11B250501, B11B250401KF
EAN / UPC: 8906049013341, 8715946660813, 8715946660844, 9314020628580 +1 more
Also known as: Epson WorkForce DS-870 Sheet-fed scanner 600 x 600 DPI A4 Grey, White

Specifications

78 specifications in 16 groups

Scanning

Specification	Value
Optical scanning resolution	600 x 600 DPI
Colour scanning	Yes
Duplex scanning	Yes
Input colour depth	30 bit
Input greyscale depth	10 bit
Output colour depth	24 bit
Output greyscale depth	8 bit
ADF scan speed (b/w, A4)	65 ppm
ADF scan speed (colour, A4)	65 ppm

Design

Specification	Value
Scanner type	Sheet-fed scanner
Built-in display	Yes
Product colour	Grey, White
Display	LCD
Display diagonal	3.81 cm (1.5")
Colour display	Yes

Performance

Specification	Value
Sensor type	CIS
Scan file formats	JPEG, PDF, TIFF
Daily duty cycle (max)	7000 pages
Scan to	E-mail, FTP, Software, Print, Network folder
Password protection	Yes
Scan drivers	TWAIN, ISIS, SANE, WIA
Ultrasonic sensor	Yes

Input capacity

Specification	Value
Auto document feeder (ADF) input capacity	100 sheets

Paper handling

Specification	Value
Maximum ISO A-series paper size	A4
Scanning media types supported	Business Card, Plastic Card, Post Card(JPN)
ISO A-series sizes (A0...A9)	A3, A4, A5, A6
ISO B-series sizes (B0...B9)	B4, B5, B6
Legal	Yes
Letter	Yes
Auto Document Feeder (ADF) media weight	27 - 413 g/m²
Maximum scan area (ADF)	215.9 x 6096 mm
Minimum scan area (ADF)	50.8 x 50.8 mm

Ports & interfaces

Specification	Value
USB port	Yes
USB version	3.2 Gen 1 (3.1 Gen 1)
Optional connectivity	Ethernet
Standard interfaces	USB 3.2 Gen 1 (3.1 Gen 1)

Network

Specification	Value
IPv6 support	Yes
Supported network protocols (IPv4)	TCP/IP, DHCP, DNS, SNMP, SLP
Supported network protocols (IPv6)	Yes
Supported network protocols	TCP/IP, DHCP, DNS, SNMP, SLP

Power

Specification	Value
Power consumption (typical)	30 W
Power supply type	AC
Power consumption (off)	0.1 W
AC input frequency	50 - 60 Hz
Sleep mode	Yes
Input voltage	100 - 240 V

Weight & dimensions

Specification	Value
Width	296 mm
Depth	169 mm
Height	167 mm
Weight	3.6 kg

Packaging data

Specification	Value
Quantity per pack	1 pc(s)
Package width	270 mm
Package depth	370 mm
Package height	320 mm
Package weight	4.95 kg

Packaging content

Specification	Value
AC adapter included	Yes
Cables included	AC
Drivers included	Yes
Bundled software	Document Capture Pro 2.0, Epson Device Admin (EDA), Epson Scan 2

System requirements

Specification	Value
Compatible operating systems	Mac OS 10.6+, Windows 10, Windows 7, Windows 8, Windows 8.1, Windows Server 2003, Windows Server 2008 (32/64 Bit), Windows Server 2012 R2, Windows Vista, Windows XP SP3
Server operating systems supported	Windows Server 2003, Windows Server 2008, Windows Server 2008 x64, Windows Server 2012 R2
Windows operating systems supported	Windows 10, Windows 7, Windows 8, Windows 8.1, Windows Vista, Windows XP

Operational conditions

Specification	Value
Operating temperature (T-T)	5 - 35 °C
Storage temperature (T-T)	25 - 60 °C
Operating relative humidity (H-H)	15 - 80%
Storage relative humidity (H-H)	15 - 85%

Other features

Specification	Value
Image formats supported	BMP, JPEG, TIFF, PNG

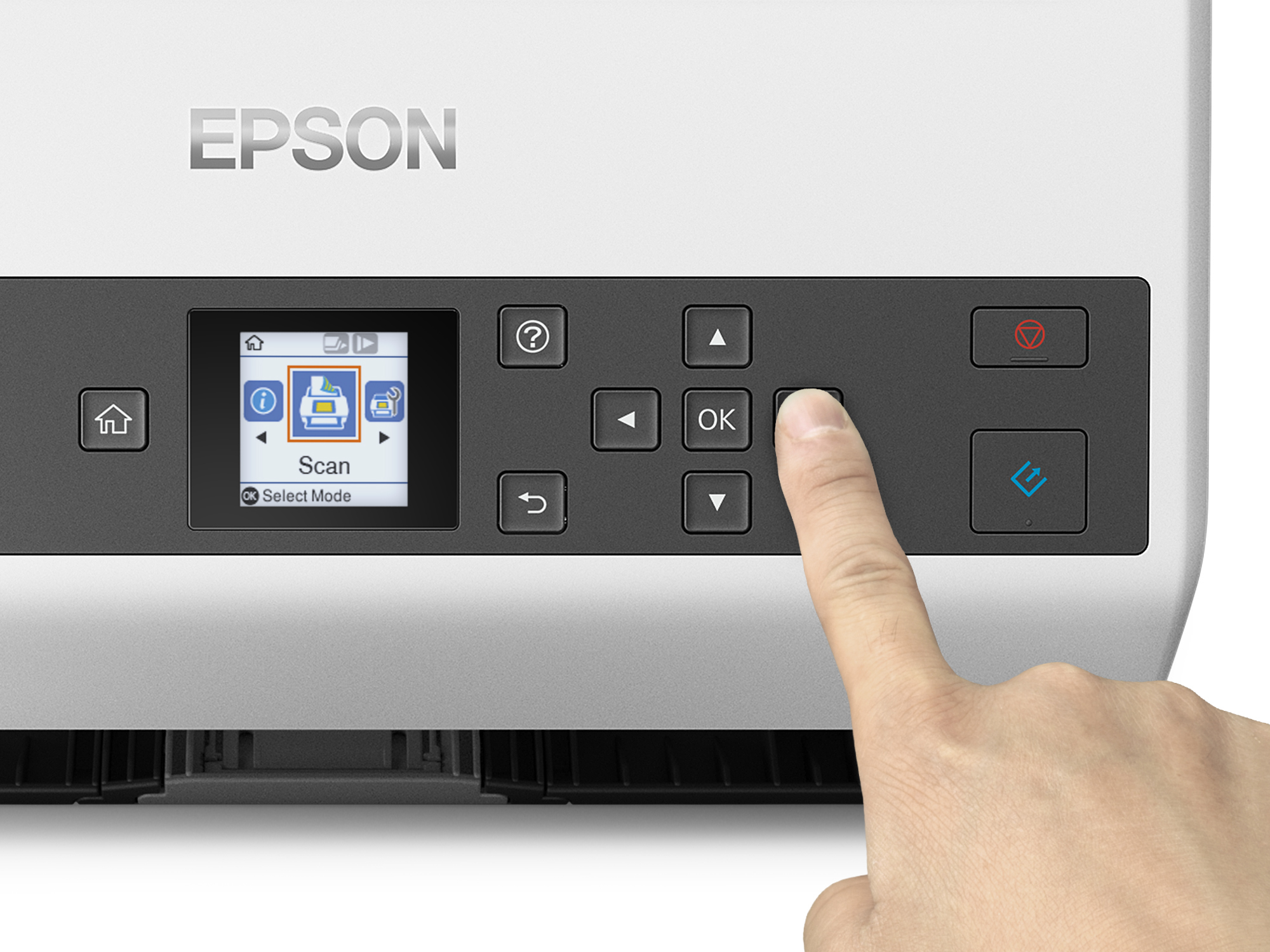

Control panel	5-line LCD with Push Scan features
Output resolutions	1200 dpi

Technical details

Specification	Value
Scan technology	ReadyScan LED

Logistics data

Specification	Value
Products per pallet	48 pc(s)
Country of origin	Indonesia
Harmonized System (HS) code	84716070
Pallet gross weight	0 g
Pallet weight (UK)	0 g
Products per pallet (UK)	60 pc(s)
Products per pallet layer	8 pc(s)
Products per pallet layer (UK)	10 pc(s)
