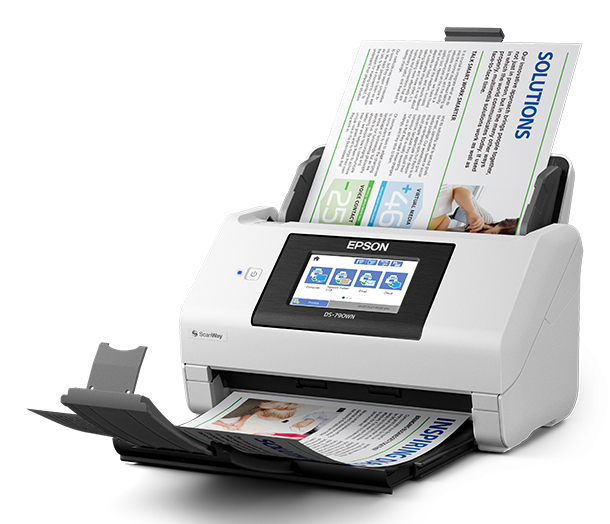

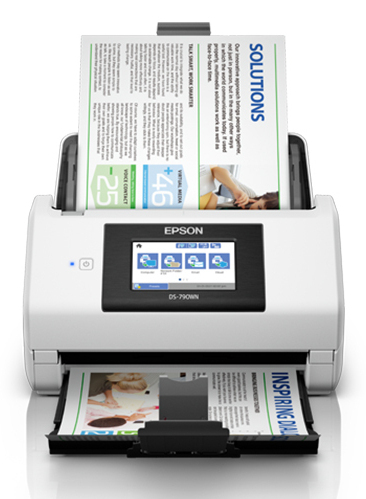

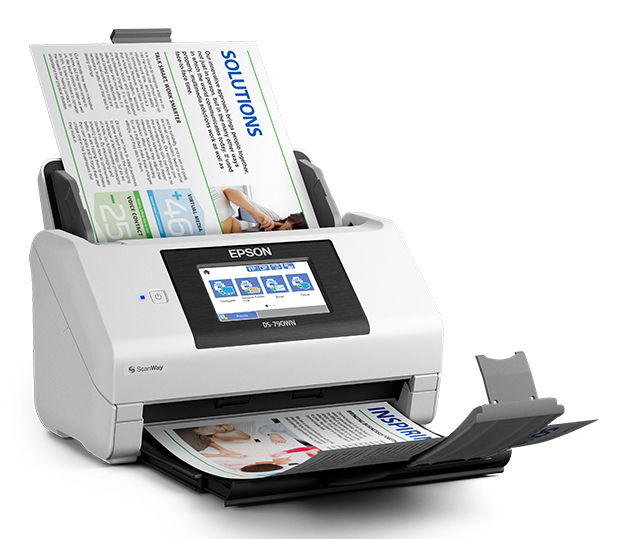

WorkForce DS-790WN Sheet-fed scanner
600 x 600 DPI A4 Black, White
Model DS-790WNPart no. B11B265201EAN 8715946697642
49 specifications
- Display10.9 cm (4.3")
- Weight3.7 kg
- ColourBlack, White
- Maximum scan size215.9 x 6096 mm
- Scanner typeSheet-fed scanner
- Daily duty cycle (max)7000 pages
Overview
- Display
- 10.9 cm (4.3")
- Weight
- 3.7 kg
- Colour
- Black, White
- Maximum scan size
- 215.9 x 6096 mm
- Scanner type
- Sheet-fed scanner
- Daily duty cycle (max)
- 7000 pages
- Brand
- Epson
- Category
- Scanner
- Model
- DS-790WN
- Part numbers
- B11B265201, B11B265501, B11B265502, B11B265401BY, B11B265401
- EAN / UPC
- 8715946697642, 8715946697635, 010343968097, 9314020634468
- Also known as
- Epson WorkForce DS-790WN Sheet-fed scanner 600 x 600 DPI A4 Black, White
Specifications
49 specifications in 13 groups
Scanning
| Specification | Value |
|---|---|
| Maximum scan size | 215.9 x 6096 mm |
| Optical scanning resolution | 600 x 600 DPI |
| Duplex scanning | Yes |
| Input colour depth | 30 bit |
| Input greyscale depth | 10 bit |
| Output colour depth | 24 bit |
| Output greyscale depth | 8 bit |
Design
| Specification | Value |
|---|---|
| Scanner type | Sheet-fed scanner |
| Built-in display | Yes |
| Product colour | Black, White |
| Display | LCD |
| Display diagonal | 10.9 cm (4.3") |
| Touchscreen | Yes |
| Colour display | Yes |
Performance
| Specification | Value |
|---|---|
| Daily duty cycle (max) | 7000 pages |
| Scan to | E-mail, FTP, Software, Network folder, USB |
| Scan drivers | TWAIN, SANE, WIA, ICA, ISIS |
Input capacity
| Specification | Value |
|---|---|
| Auto document feeder (ADF) input capacity | 100 sheets |
Paper handling
| Specification | Value |
|---|---|
| Maximum ISO A-series paper size | A4 |
| Scanning media types supported | Business Card, Envelopes, Plastic Card, Post Card(JPN) |
| ISO A-series sizes (A0...A9) | A4, A5, A6, A8 |
| ISO B-series sizes (B0...B9) | B5, B6 |
| Legal | Yes |
| Letter | Yes |
| Auto Document Feeder (ADF) media weight | 27 - 413 g/m² |
Ports & interfaces
| Specification | Value |
|---|---|
| USB port | Yes |
Network
| Specification | Value |
|---|---|
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
| Ethernet LAN | Yes |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 15 W |
| Power supply type | AC |
| Power consumption (standby) | 1.5 W |
| AC input frequency | 50 - 60 Hz |
| Input voltage | 100 - 240 V |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 296 mm |
| Depth | 212 mm |
| Height | 217 mm |
| Weight | 3.7 kg |
Packaging data
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
| Package width | 270 mm |
| Package depth | 370 mm |
| Package height | 325 mm |
| Package weight | 4.97 kg |
Packaging content
| Specification | Value |
|---|---|
| Quick start guide | Yes |
| Bundled software | Document Capture Pro 2.0, Document Capture Pro Server 2.0, Document Capture Pro Server 2.0 Authentication Edition, Epson Document Capture (Mac only), Epson Scan 2 |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 5 - 35 °C |
| Operating relative humidity (H-H) | 15 - 80% |
| Storage relative humidity (H-H) | 15 - 85% |
Other features
| Specification | Value |
|---|---|
| Image formats supported | BMP, JPEG, TIFF, PNG |
