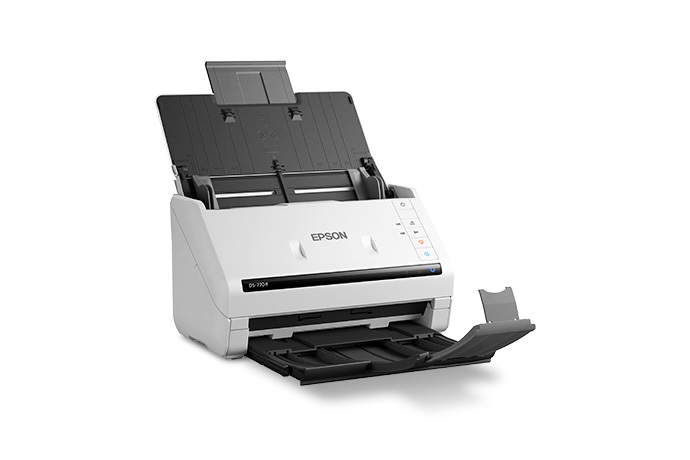

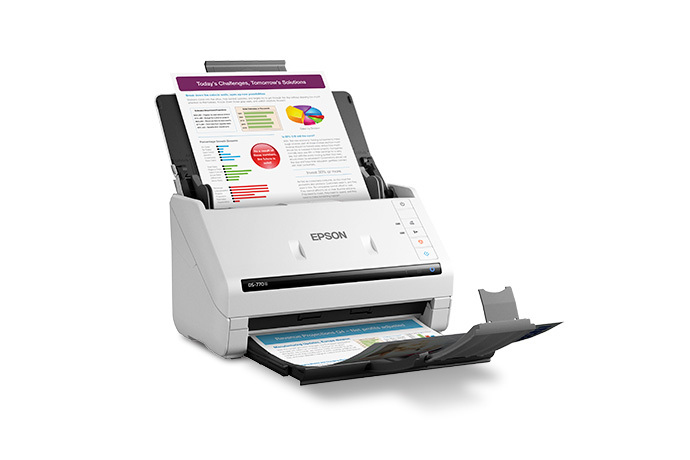

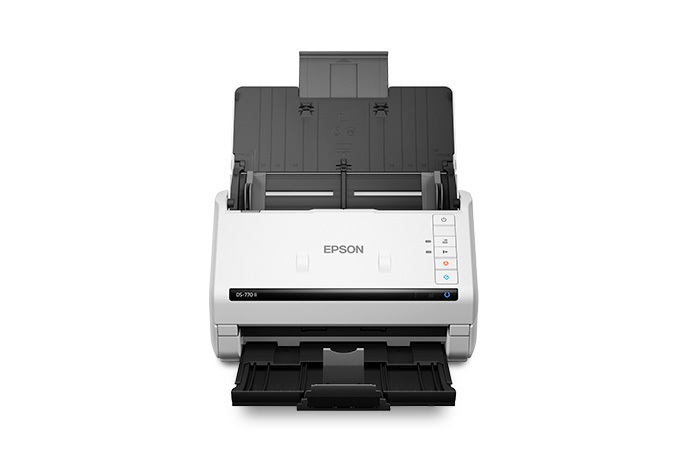

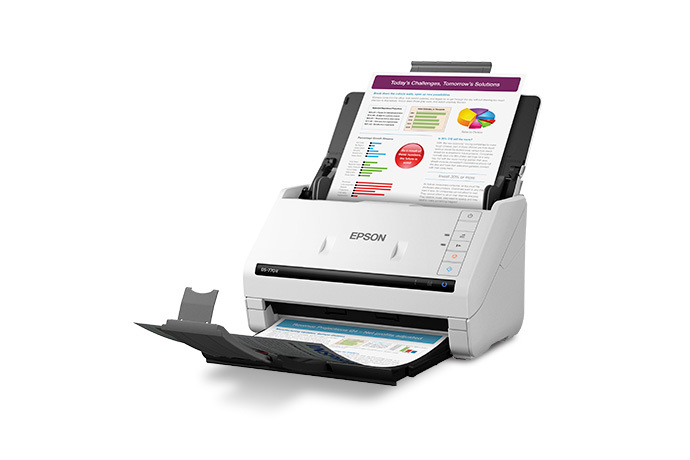

Epson WorkForce DS-770II

WorkForce DS-770II

Model DS-770IIPart no. B11B262401BYEAN 8715946685977

52 specifications

ConnectivityUSB 3.2 Gen 1x1
Weight3.7 kg
ColourBlack, White
Maximum scan size215.9 x 6096 mm
Scanner typeSheet-fed scanner
Sensor typeCIS

See all specifications

Overview

Connectivity: USB 3.2 Gen 1x1
Weight: 3.7 kg
Colour: Black, White
Maximum scan size: 215.9 x 6096 mm
Scanner type: Sheet-fed scanner
Sensor type: CIS

Brand: Epson
Category: Scanner
Model: DS-770II
Part numbers: B11B262401BY, B11B262501
EAN / UPC: 8715946685977
Also known as: Epson WorkForce DS-770II

Specifications

52 specifications in 15 groups

Scanning

Specification	Value
Maximum scan size	215.9 x 6096 mm
Optical scanning resolution	600 x 600 DPI
Duplex scanning	Yes
Input colour depth	30 bit
Output colour depth	24 bit
Output monochrome depth	8 bit

Design

Specification	Value
Scanner type	Sheet-fed scanner
Built-in display	No
Product colour	Black, White

Performance

Specification	Value
Sensor type	CIS
Light source	ReadyScan LED
Scan file formats	BMP, JPEG, PNG
Daily duty cycle (max)	7000 pages
Scan to	E-mail, FTP, Print
Scan drivers	TWAIN, SANE, WIA, ICA, ISIS
Ultrasonic sensor	Yes
Scanning noise level	49 dB

Input capacity

Specification	Value
Auto document feeder (ADF) input capacity	100 sheets

Paper handling

Specification	Value
Maximum ISO A-series paper size	A3
ISO A-series sizes (A0...A9)	A4, A5, A6
ISO B-series sizes (B0...B9)	B6, B5
Paper tray media weight	27 - 413 g/m²
Maximum scan area (ADF)	50.8 x 50.8 mm

Ports & interfaces

Specification	Value
USB port	Yes
USB version	2.0/3.2 Gen 1 (3.1 Gen 1)

Power

Specification	Value
AC input frequency	50 - 60 Hz

Weight & dimensions

Specification	Value
Width	296 mm
Depth	169 mm
Height	176 mm
Weight	3.7 kg

Packaging data

Specification	Value
Quantity per pack	1 pc(s)
Package width	250 mm
Package depth	365 mm
Package height	285 mm
Package weight	4.58 kg

Packaging content

Specification	Value
Bundled software	Epson Document Capture (Mac only), Epson Document Capture Pro (Windows only), Epson Scan 2, Presto! BizCard 5.6

System requirements

Specification	Value
Compatible operating systems	Citrix XenApp 5.0, Citrix XenApp 6.0, Citrix XenApp 7.6 and above, Linux, Mac OS 10.7.x, Mac OS 10.8.x, Mac OS 10.9.x, Mac OS X, Mac OS X 10.6.8, Windows 10, Windows 10 (32/64 bit), Windows 11, Windows 7, Windows 7 x64, Windows 8, Windows 8 (32/64 bit), Windows 8 RT, Windows 8.1, Windows 8.1 x64 Edi

Operational conditions

Specification	Value
Operating temperature (T-T)	5 - 35 °C
Storage temperature (T-T)	-25 - 60 °C
Operating relative humidity (H-H)	15 - 80%
Storage relative humidity (H-H)	15 - 85%

Other features

Specification	Value
Image formats supported	BMP, JPEG, TIFF, MTIFF, PNG
Interface	USB 3.2 Gen 1x1
Box contents	Driver and utilities, Main unit, Power cable, Setup guide, USB cable, Warranty document
Linear scan speed (metric)	Monochrome:45 pages/min - Color:45 pages/min measured with Size: A4 , Resolution: 200 / 300 dpi, Monochrome:90 image/min - Color:90 image/min measured with Size: A4 , Resolution: 200 / 300 dpi
Output resolutions	75, 100, 150, 200, 240, 300, 600, 1200 DPI
Printer features	RGB colour dropout, Advanced Colour Dropout / Enhance, Skip blank page, A3 stitching, Punch holes removal, Advanced editing, Automatic de-skew, Automatic multi-document recognition, RGB colour enhance, Dual Image Output (Windows only), Auto-rotation, Text enhancement, Edge fill, Unsharp Mask (USM),
Scanner features	RGB colour dropout, Advanced Colour Dropout / Enhance, Skip blank page, A3 stitching, Punch holes removal, Advanced editing, Automatic de-skew, Automatic multi-document recognition, RGB colour enhance, Dual Image Output (Windows only), Auto-rotation, Text enhancement, Edge fill, Unsharp Mask (USM),

Technical details

Specification	Value
Data compression	Hardware JPEG compression, TIFF Compression (JPEG(7) , CITT G4, LZW), PDF Compression

Logistics data

Specification	Value
Products per pallet	63 pc(s)
Country of origin	Indonesia
Products per pallet (UK)	84 pc(s)
