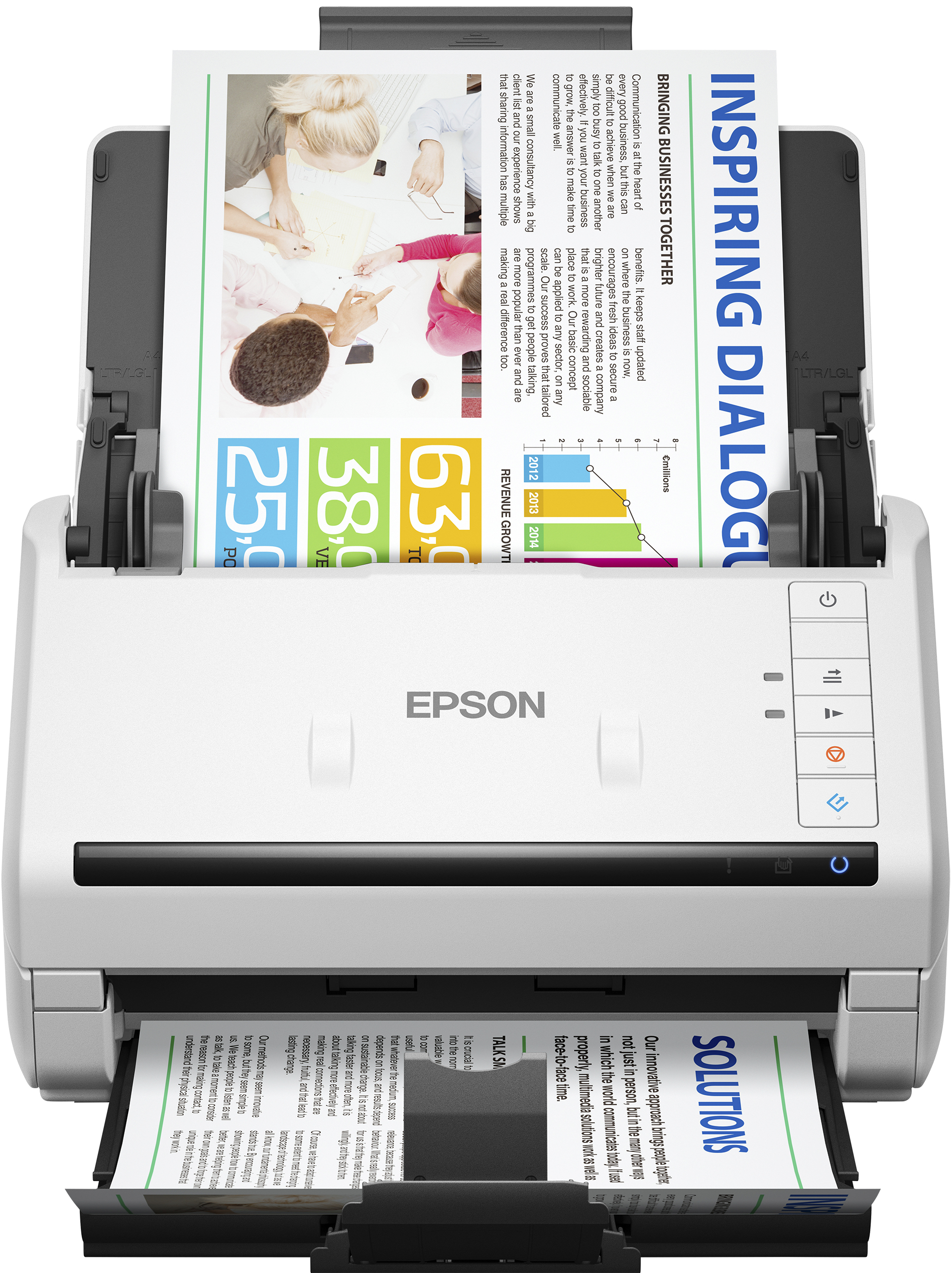

DS-770 II
Model DS-770 IIPart no. B11B262401EAN 8715946685946
68 specifications
- Weight3.7 kg
- ColourWhite
- Maximum scan size215.9 x 6096 mm
- Scanner typeSheet-fed scanner
- Light sourceReadyScan LED
- Standard input capacity100 sheets
Overview
- Weight
- 3.7 kg
- Colour
- White
- Maximum scan size
- 215.9 x 6096 mm
- Scanner type
- Sheet-fed scanner
- Light source
- ReadyScan LED
- Standard input capacity
- 100 sheets
- Brand
- Epson
- Category
- Scanner
- Model
- DS-770 II
- Part number
- B11B262401
- EAN / UPC
- 8715946685946
- Also known as
- Epson DS-770 II Sheet-fed scanner 600 x 600 DPI A4 White
Specifications
68 specifications in 14 groups
Scanning
| Specification | Value |
|---|---|
| Maximum scan size | 215.9 x 6096 mm |
| Optical scanning resolution | 600 x 600 DPI |
| Colour scanning | Yes |
| Duplex scanning | Yes |
| Input colour depth | 30 bit |
| Input greyscale depth | 10 bit |
| Output colour depth | 24 bit |
| Output greyscale depth | 8 bit |
| Output monochrome depth | 8 bit |
| ADF scan speed (b/w, A4) | 45 ppm |
| ADF scan speed (colour, A4) | 45 ppm |
| Duplex ADF scan speed (b/w, A4) | 90 ipm |
| Duplex ADF scan speed (colour, A4) | 90 ipm |
Design
| Specification | Value |
|---|---|
| Scanner type | Sheet-fed scanner |
| Built-in display | Yes |
| Product colour | White |
| Display | LCD |
Performance
| Specification | Value |
|---|---|
| Light source | ReadyScan LED |
| Scan file formats | JPEG, PDF, TIFF |
| Daily duty cycle (max) | 7000 pages |
| Scan to | E-mail, FTP, Software, Print, Network folder |
| Scan drivers | TWAIN, WIA, ISIS |
| Ultrasonic sensor | Yes |
Input capacity
| Specification | Value |
|---|---|
| Standard input capacity | 100 sheets |
| Auto document feeder (ADF) input capacity | 100 sheets |
Paper handling
| Specification | Value |
|---|---|
| Maximum ISO A-series paper size | A4 |
| Scanning media types supported | Plastic Card, Post Card(JPN) |
| ISO A-series sizes (A0...A9) | A4, A5, A6 |
| ISO B-series sizes (B0...B9) | B5, B6 |
| Legal | Yes |
| Letter | Yes |
| Auto Document Feeder (ADF) media weight | 27 - 413 g/m² |
| Maximum scan area (ADF) | 215.9 x 6096 mm |
| Minimum scan area (ADF) | 50.8 x 50.8 mm |
Ports & interfaces
| Specification | Value |
|---|---|
| USB port | Yes |
| USB version | 3.2 Gen 1 (3.1 Gen 1) |
Power
| Specification | Value |
|---|---|
| Power supply type | AC |
| Power consumption (off) | 0.1 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 296 mm |
| Depth | 169 mm |
| Height | 176 mm |
| Weight | 3.7 kg |
Packaging data
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
| Package width | 250 mm |
| Package depth | 365 mm |
| Package height | 285 mm |
| Package weight | 4.58 kg |
Packaging content
| Specification | Value |
|---|---|
| Warranty card | Yes |
| Cables included | AC |
| Drivers included | Yes |
| Bundled software | Epson Document Capture (Mac only), Epson Document Capture Pro (Windows only), Epson Document Capture Pro Server (on free download), Epson Scan 2, Presto! BizCard 5.6 |
System requirements
| Specification | Value |
|---|---|
| Compatible operating systems | Citrix XenApp 5.0, Citrix XenApp 6.0, Citrix XenApp 7.6 und höher, Linux, Mac OS 10.7.x, Mac OS 10.8.x, Mac OS 10.9.x, Mac OS X, Mac OS X 10.6.8, Windows 10, Windows 7, Windows 7, 64-Bit-Version, Windows 8, Windows 8 (32/64 Bit), Windows 8 RT, Windows 8.1, Windows 8.1 x64 Edition, Windows Server 200 |
| Linux operating systems supported | Yes |
| Mac operating systems supported | Yes |
| Server operating systems supported | Windows Server 2008, Windows Server 2008 x64, Windows Server 2008 R2, Windows Server 2012 x64, Windows Server 2012 R2, Windows Server 2003 R2 |
| Windows operating systems supported | Windows 10, Windows 7, Windows 7 x64, Windows 8, Windows 8 x64, Windows RT, Windows 8.1, Windows 8.1 x64, Windows Vista, Windows Vista x64, Windows XP Professional x64 |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 5 - 35 °C |
| Storage temperature (T-T) | -25 - 60 °C |
| Operating relative humidity (H-H) | 15 - 80% |
| Storage relative humidity (H-H) | 15 - 85% |
Other features
| Specification | Value |
|---|---|
| Image formats supported | JPEG, TIFF |
| Output resolutions | 75, 100, 150, 200, 240, 300, 600, 1200 dpi |
Logistics data
| Specification | Value |
|---|---|
| Products per pallet | 63 pc(s) |
| Country of origin | Indonesia |
| Harmonized System (HS) code | 84716070 |
| Pallet gross weight | 0 g |
| Pallet weight (UK) | 0 g |
| Products per pallet (UK) | 84 pc(s) |
