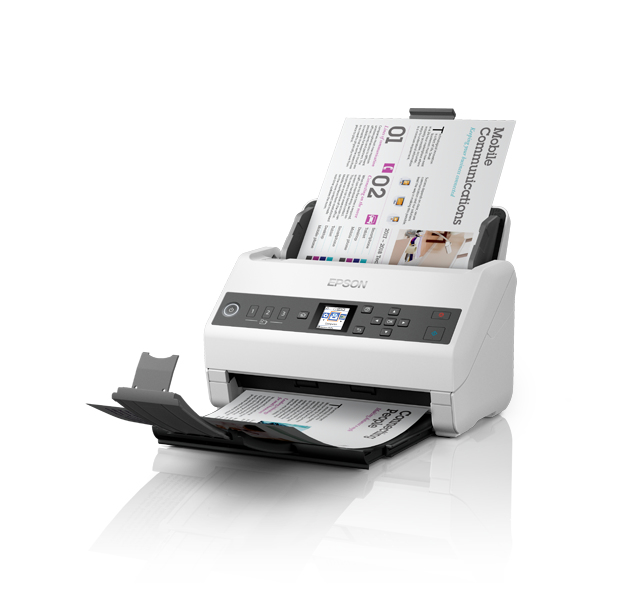

DS-730N Sheet-fed scanner
600 x 600 DPI A4 Black, Grey
Model DS-730NPart no. B11B259401BYEAN 010343953529
67 specifications
- Display3.81 cm (1.5")
- Weight3.6 kg
- ColourBlack, Grey
- Maximum scan size215.9 x 6096 mm
- Scanner typeSheet-fed scanner
- Sensor typeCIS
Overview
- Display
- 3.81 cm (1.5")
- Weight
- 3.6 kg
- Colour
- Black, Grey
- Maximum scan size
- 215.9 x 6096 mm
- Scanner type
- Sheet-fed scanner
- Sensor type
- CIS
- Brand
- Epson
- Category
- Scanner
- Model
- DS-730N
- Part numbers
- B11B259401BY, B11B259502, B11B259201, B11B259401
- EAN / UPC
- 010343953529, 8715946678283, 8715946679211
- Also known as
- Epson DS-730N Sheet-fed scanner 600 x 600 DPI A4 Black, Grey
Specifications
67 specifications in 14 groups
Scanning
| Specification | Value |
|---|---|
| Maximum scan size | 215.9 x 6096 mm |
| Optical scanning resolution | 600 x 600 DPI |
| Colour scanning | Yes |
| Duplex scanning | Yes |
| Input colour depth | 30 bit |
| Input greyscale depth | 10 bit |
| Output colour depth | 24 bit |
| Output greyscale depth | 8 bit |
| Output monochrome depth | 8 bit |
| ADF scan speed (b/w, A4) | 40 ppm |
| ADF scan speed (colour, A4) | 40 ppm |
| Black/white scanning colour modes | Monochrome |
Design
| Specification | Value |
|---|---|
| Scanner type | Sheet-fed scanner |
| Built-in display | Yes |
| Product colour | Black, Grey |
| Display | LCD |
| Display diagonal | 3.81 cm (1.5") |
| Colour display | Yes |
Performance
| Specification | Value |
|---|---|
| Sensor type | CIS |
| Light source | ReadyScan LED |
| Scan file formats | JPEG, PDF, TIFF |
| Daily duty cycle (max) | 4500 pages |
| Scan to | E-mail, FTP, Network folder |
| Password protection | Yes |
| Ultrasonic sensor | Yes |
Input capacity
| Specification | Value |
|---|---|
| Auto document feeder (ADF) input capacity | 100 sheets |
Paper handling
| Specification | Value |
|---|---|
| Maximum ISO A-series paper size | A4 |
| Scanning media types supported | Business Card, Plastic Card, Post Card(JPN) |
| ISO A-series sizes (A0...A9) | A4, A5, A6 |
| ISO B-series sizes (B0...B9) | B4, B5, B6 |
| Legal | Yes |
| Letter | Yes |
| Auto Document Feeder (ADF) media weight | 27 - 413 g/m² |
Ports & interfaces
| Specification | Value |
|---|---|
| USB port | Yes |
| USB version | 2.0 |
| USB connector type | USB Type-B |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| IPv6 support | Yes |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 14 W |
| Power supply type | AC |
| Power consumption (off) | 0.1 W |
| AC input frequency | 50 - 60 Hz |
| Sleep mode | Yes |
| Input voltage | 100 - 240 V |
| Power consumption (sleep) | 1.5 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 296 mm |
| Depth | 169 mm |
| Height | 167 mm |
| Weight | 3.6 kg |
Packaging data
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
| Package width | 270 mm |
| Package depth | 370 mm |
| Package height | 320 mm |
| Package weight | 4.93 kg |
Packaging content
| Specification | Value |
|---|---|
| Cables included | AC |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 5 - 35 °C |
| Storage temperature (T-T) | 25 - 60 °C |
| Operating relative humidity (H-H) | 15 - 80% |
| Storage relative humidity (H-H) | 15 - 85% |
Other features
| Specification | Value |
|---|---|
| Cabling technology | 10/100/1000Base-T(X) |
| Image formats supported | BMP, JPEG, TIFF, PNG |
| Output resolutions | 75, 100, 150, 200, 240, 300, 600, 1200 dpi |
Logistics data
| Specification | Value |
|---|---|
| Products per pallet | 48 pc(s) |
| Country of origin | Indonesia |
| Pallet gross weight | 0 g |
| Pallet weight (UK) | 0 g |
| Products per pallet (UK) | 60 pc(s) |
