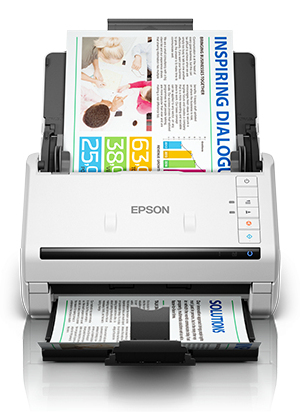

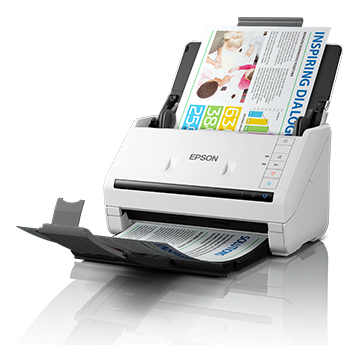

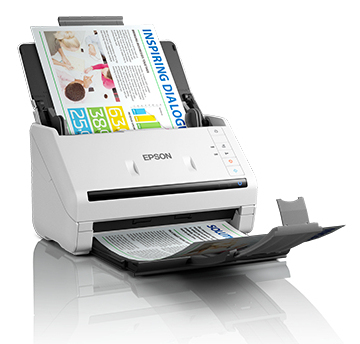

WorkForce DS-530II Sheet-fed scanner
600 x 600 DPI A3 Black, White
Model DS-530IIPart no. B11B261504EAN 8906049015406
33 specifications
- Weight3.7 kg
- ColourBlack, White
- Maximum scan size215.9 x 6096 mm
- Scanner typeSheet-fed scanner
- Sensor typeCIS
- Auto document feeder (ADF) input capacity50 sheets
Overview
- Weight
- 3.7 kg
- Colour
- Black, White
- Maximum scan size
- 215.9 x 6096 mm
- Scanner type
- Sheet-fed scanner
- Sensor type
- CIS
- Auto document feeder (ADF) input capacity
- 50 sheets
- Brand
- Epson
- Category
- Scanner
- Model
- DS-530II
- Part numbers
- B11B261504, B11B261502
- EAN / UPC
- 8906049015406
- Also known as
- Epson WorkForce DS-530II Sheet-fed scanner 600 x 600 DPI A3 Black, White
Specifications
33 specifications in 10 groups
Scanning
| Specification | Value |
|---|---|
| Maximum scan size | 215.9 x 6096 mm |
| Optical scanning resolution | 600 x 600 DPI |
| Colour scanning | Yes |
| Duplex scanning | Yes |
| Input colour depth | 30 bit |
| Output colour depth | 24 bit |
| Output monochrome depth | 8 bit |
Design
| Specification | Value |
|---|---|
| Scanner type | Sheet-fed scanner |
| Built-in display | No |
| Product colour | Black, White |
Performance
| Specification | Value |
|---|---|
| Sensor type | CIS |
| Light source | RGB LED |
| Scan file formats | BMP, JPEG, PNG |
| Daily duty cycle (max) | 4000 pages |
| Scan to | E-mail, FTP, Network folder, Print |
Input capacity
| Specification | Value |
|---|---|
| Auto document feeder (ADF) input capacity | 50 sheets |
Paper handling
| Specification | Value |
|---|---|
| Maximum ISO A-series paper size | A3 |
Ports & interfaces
| Specification | Value |
|---|---|
| USB port | Yes |
| USB version | 2.0/3.2 Gen 1 (3.1 Gen 1) |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 11 W |
| Power consumption (standby) | 5.4 W |
| Power consumption (off) | 0.1 W |
| Sleep mode | Yes |
| Input voltage | 220-240 V |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 296 mm |
| Depth | 169 mm |
| Height | 176 mm |
| Weight | 3.7 kg |
Packaging data
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 5 - 35 °C |
| Storage temperature (T-T) | -25 - 60 °C |
| Operating relative humidity (H-H) | 15 - 80% |
| Storage relative humidity (H-H) | 15 - 85% |
