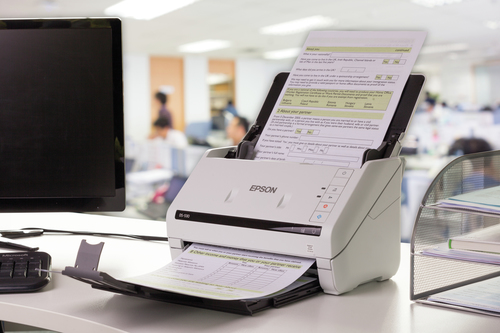

Epson WorkForce DS-530

Epson WorkForce DS-530

Model DS-530Part no. B11B226401PUEAN 8715946672106

79 specifications
  • Weight3.7 kg
  • ColourWhite
  • Maximum scan size215.9 x 6096 mm
  • Scanner typeSheet-fed scanner
  • Light sourceReadyScan LED
  • Standard input capacity50 sheets
See all specifications

Overview

Weight
3.7 kg
Colour
White
Maximum scan size
215.9 x 6096 mm
Scanner type
Sheet-fed scanner
Light source
ReadyScan LED
Standard input capacity
50 sheets
Brand
Epson
Category
Scanner
Model
DS-530
Part numbers
B11B226401PU, B11B226401BY, B11B226501, 4988617222823, B11B226401, B11B226401PP
EAN / UPC
8715946672106, 4058154142011, 8715946551913, 9314020618178 +3 more
Also known as
Epson WorkForce DS-530

Specifications

79 specifications in 16 groups

Scanning

Maximum scan size215.9 x 6096 mm
Optical scanning resolution600 x 600 DPI
Colour scanningYes
Duplex scanningYes
Input colour depth30 bit
Output colour depth24 bit
ADF scan speed (b/w, A4)35 ppm
ADF scan speed (colour, A4)35 ppm

Design

Scanner typeSheet-fed scanner
Built-in displayYes
Product colourWhite
DisplayLCD

Performance

Light sourceReadyScan LED
Scan file formatsPDF, TIFF
Daily duty cycle (max)4000 pages
Scan toE-mail, FTP, Network folder, Print
Scan driversTWAIN, SANE, WIA, ISIS
Ultrasonic sensorYes
Scanning noise level6.4 dB

Input capacity

Standard input capacity50 sheets
Auto document feeder (ADF) input capacity50 sheets

Paper handling

Maximum ISO A-series paper sizeA4
Scanning media types supportedBusiness Card, Plastic Card, Post Card(JPN), Thin paper
ISO A-series sizes (A0...A9)A3, A4, A5, A6
ISO B-series sizes (B0...B9)B6, B5
LegalYes
LetterYes
Plastic card media weight27 - 413 g/m²
Auto Document Feeder (ADF) media weight27 - 413 g/m²
Maximum scan area (ADF)50.8 x 50.8 mm
Minimum scan area (ADF)215.9 x 6096 mm

Ports & interfaces

USB portYes
USB version3.2 Gen 1 (3.1 Gen 1)
Optional connectivityEthernet
Standard interfacesUSB 3.2 Gen 1 (3.1 Gen 1)

Network

Ethernet LANNo
IPv6 supportYes
Supported network protocolsTCP/IP, DHCP, DNS, SNMP, SLP

Power

Power supply typeAC

Weight & dimensions

Width296 mm
Depth169 mm
Height176 mm
Weight3.7 kg

Packaging data

Quantity per pack1 pc(s)
Package width250 mm
Package depth365 mm
Package height285 mm
Package weight4.68 kg

Packaging content

Cables includedAC, USB
Drivers includedYes
Bundled softwareEpson Document Capture (Mac only), Epson Document Capture Pro (Windows only), Epson Document Capture Pro Server (on free download), Epson Scan 2, Presto! BizCard 5.6

System requirements

Compatible operating systemsCitrix XenApp 5.0, Citrix XenApp 6.0, Citrix XenApp 7.6 and above, Linux, Mac OS 10.7.x, Mac OS 10.8.x, Mac OS 10.9.x, Mac OS X, Mac OS X 10.6.8, Windows 10, Windows 7, Windows 7 x64, Windows 8, Windows 8 (32/64 bit), Windows 8 RT, Windows 8.1, Windows 8.1 x64 Edition, Windows Server 2008 (32/64bit)
Linux operating systems supportedYes
Mac operating systems supportedYes
Server operating systems supportedWindows Server 2003 R2, Windows Server 2008, Windows Server 2008 R2, Windows Server 2008 x64, Windows Server 2012 R2, Windows Server 2012 x64
Windows operating systems supportedYes

Operational conditions

Operating temperature (T-T)5 - 35 °C
Storage temperature (T-T)-25 - 60 °C
Operating relative humidity (H-H)15 - 80%
Storage relative humidity (H-H)15 - 85%

Other features

Ethernet LAN data rates100,10,1000 Mbit/s
Image formats supportedJPEG, TIFF, MTIFF
InterfaceUSB 3.0, Ethernet Interface (1000 Base-T/ 100-Base TX/ 10-Base-T) (optional)
Box contentsDriver and utilities, Main unit, Power cable, Setup guide, USB cable, Warranty document
Linear scan speed (metric)Monochrome:35 pages/min - Color:35 pages/min measured with Size: A4 , Resolution: 200 / 300 dpi, Monochrome:70 image/min - Color:70 image/min measured with Size: A4 , Resolution: 200 / 300 dpi
Output resolutions1200 DPI
Printer featuresRGB colour dropout, Advanced Colour Dropout / Enhance, Skip blank page, A3 stitching, Punch holes removal, Advanced editing, Automatic de-skew, Automatic multi-document recognition, RGB colour enhance, Dual Image Output (Windows only), Auto-rotation, Text enhancement, Edge fill, Unsharp Mask (USM),
Scanner featuresRGB colour dropout, Advanced Colour Dropout / Enhance, Skip blank page, A3 stitching, Punch holes removal, Advanced editing, Automatic de-skew, Automatic multi-document recognition, RGB colour enhance, Dual Image Output (Windows only), Auto-rotation, Text enhancement, Edge fill, Unsharp Mask (USM),

Technical details

Data compressionHardware JPEG compression, TIFF Compression (JPEG(7) , CITT G4, LZW), PDF Compression

Logistics data

Products per pallet63 pc(s)
Country of originIndonesia
Pallet gross height2.18 m
Pallet gross length120 cm
Pallet gross width80 cm
Pallet height (UK)2.18 m
Pallet length (UK)120 cm
Products per pallet (UK)84 pc(s)
Products per pallet layer9 pc(s)
Products per pallet layer (UK)12 pc(s)
