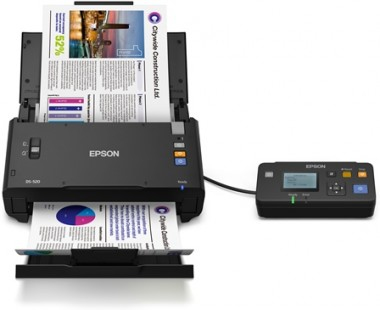

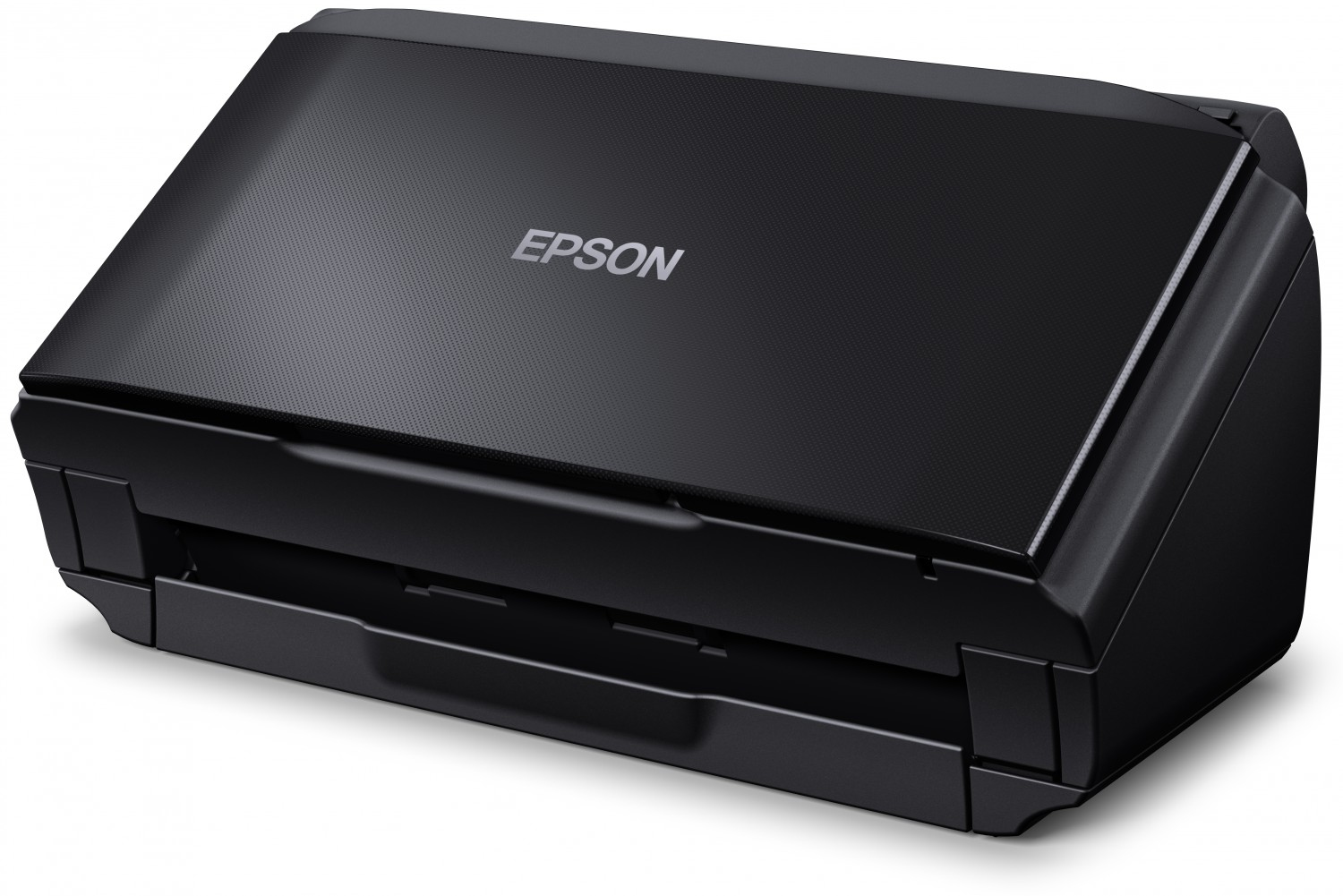

Epson DS-520N Sheet-fed scanner
600 x 600 DPI A4 Black
Model DS-520NPart no. B11B234401BUEAN 5054629628928
41 specifications
- Weight2.9 kg
- ColourBlack
- Maximum scan size215 x 914 mm
- Scanner typeSheet-fed scanner
- Scan file formatsJPG, PDF, TIFF
- Maximum ISO A-series paper sizeA4
Overview
- Weight
- 2.9 kg
- Colour
- Black
- Maximum scan size
- 215 x 914 mm
- Scanner type
- Sheet-fed scanner
- Scan file formats
- JPG, PDF, TIFF
- Maximum ISO A-series paper size
- A4
- Brand
- Epson
- Category
- Scanner
- Model
- DS-520N
- Part numbers
- B11B234401BU, B11B234401BT
- EAN / UPC
- 5054629628928, 4053162669383, 8715946546308, 8715946546315
- Also known as
- Epson DS-520N Sheet-fed scanner 600 x 600 DPI A4 Black
Specifications
41 specifications in 11 groups
Scanning
| Specification | Value |
|---|---|
| Maximum scan size | 215 x 914 mm |
| Optical scanning resolution | 600 x 600 DPI |
| Colour scanning | No |
| Duplex scanning | Yes |
| Input colour depth | 48 bit |
| Output colour depth | 24 bit |
Design
| Specification | Value |
|---|---|
| Scanner type | Sheet-fed scanner |
| Product colour | Black |
Performance
| Specification | Value |
|---|---|
| Scan file formats | JPG, PDF, TIFF |
| Daily duty cycle (max) | 3000 pages |
Paper handling
| Specification | Value |
|---|---|
| Maximum ISO A-series paper size | A4 |
Ports & interfaces
| Specification | Value |
|---|---|
| Standard interfaces | Ethernet |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Supported network protocols | TCP/IP, DHCP, DNS, SNMP, SLP |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 18 W |
| Power supply type | AC |
| Power consumption (standby) | 16 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 297 mm |
| Depth | 152 mm |
| Height | 154 mm |
| Weight | 2.9 kg |
Packaging data
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
| Package width | 248 mm |
| Package depth | 400 mm |
| Package height | 470 mm |
| Package weight | 5 kg |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 5 - 35 °C |
| Storage temperature (T-T) | -25 - 60 °C |
| Operating relative humidity (H-H) | 10 - 80% |
| Storage relative humidity (H-H) | 10 - 85% |
Logistics data
| Specification | Value |
|---|---|
| Products per pallet | 28 pc(s) |
| Country of origin | China |
| Pallet gross height | 54.4 cm |
| Pallet gross length | 120 cm |
| Pallet gross width | 80 cm |
| Pallet height (UK) | 54.4 cm |
| Pallet length (UK) | 120 cm |
| Pallet width (UK) | 100 cm |
| Products per pallet (UK) | 40 pc(s) |
| Products per pallet layer | 7 pc(s) |
| Products per pallet layer (UK) | 10 pc(s) |
