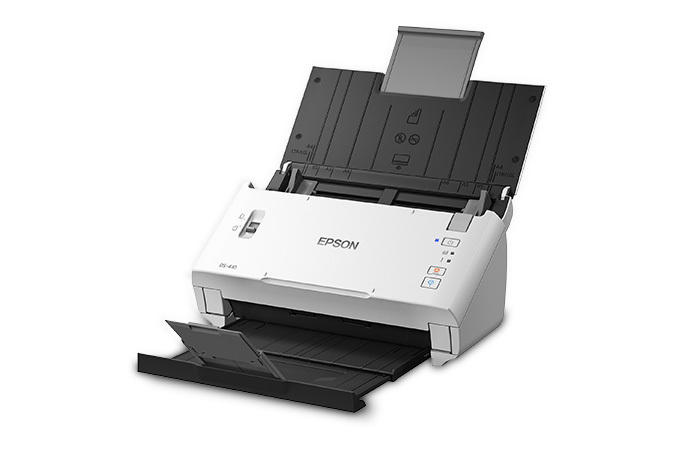

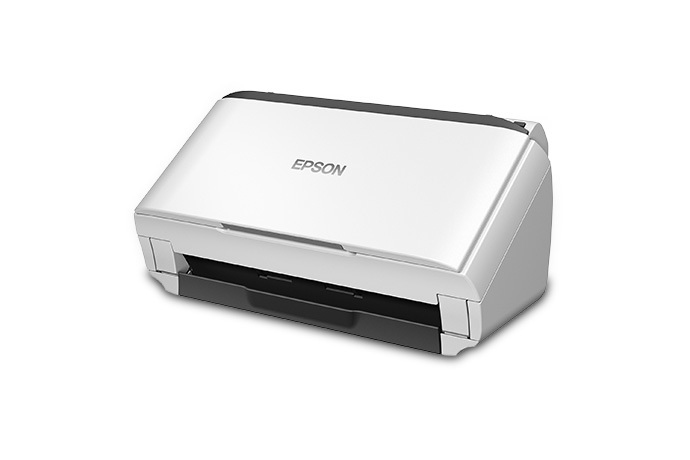

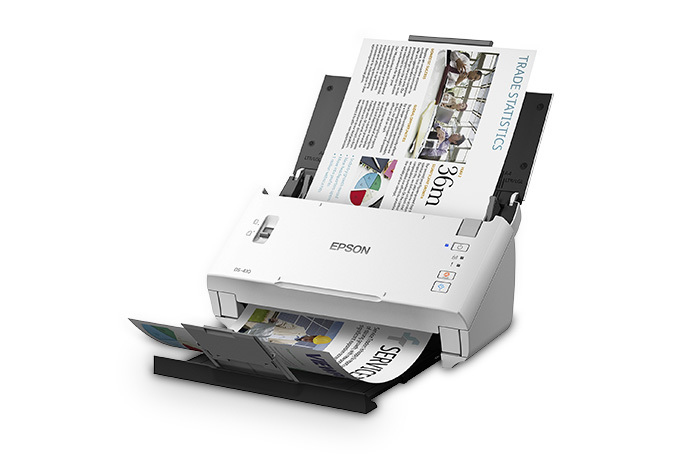

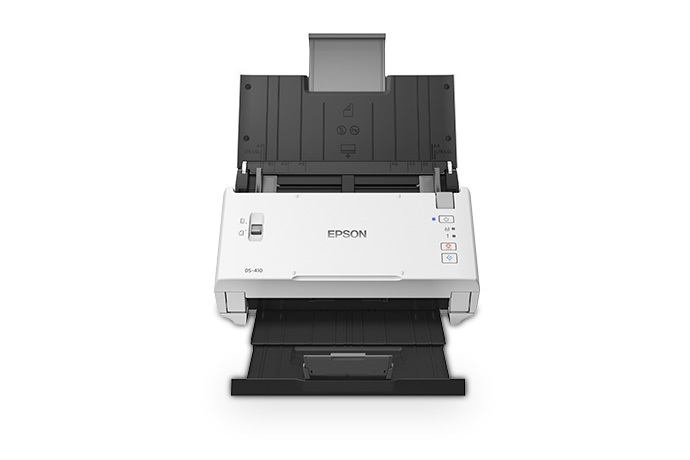

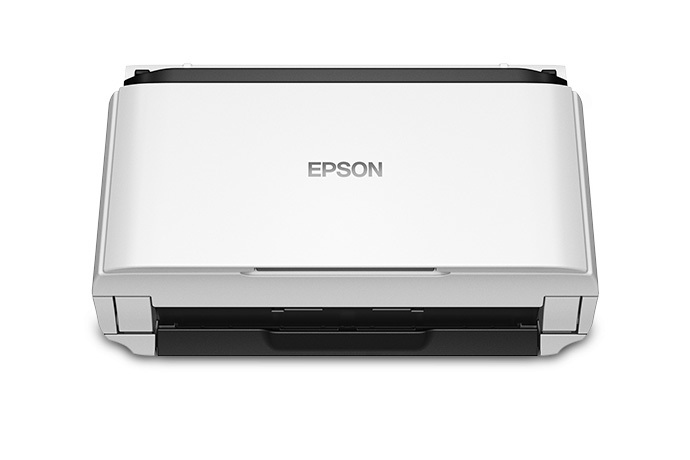

WorkForce DS-410 Sheet-fed scanner
600 x 600 DPI White
Model DS-410Part no. B11B249401PUEAN 4058154239391
41 specifications
- Weight2.5 kg
- ColourWhite
- Maximum scan size215.9 x 3048 mm
- Scanner typeSheet-fed scanner
- Sensor typeCIS
- Auto document feeder (ADF) input capacity50 sheets
Overview
- Weight
- 2.5 kg
- Colour
- White
- Maximum scan size
- 215.9 x 3048 mm
- Scanner type
- Sheet-fed scanner
- Sensor type
- CIS
- Auto document feeder (ADF) input capacity
- 50 sheets
- Brand
- Epson
- Category
- Scanner
- Model
- DS-410
- Part numbers
- B11B249401PU, B11B249502, B11B249501, B11B249401, B11B249401BY, B11B249401PP
- EAN / UPC
- 4058154239391, 8715946638386, 8715946638713, 8715946671772 +1 more
- Also known as
- Epson WorkForce DS-410 Sheet-fed scanner 600 x 600 DPI White
Specifications
41 specifications in 10 groups
Scanning
| Specification | Value |
|---|---|
| Maximum scan size | 215.9 x 3048 mm |
| Optical scanning resolution | 600 x 600 DPI |
| Colour scanning | Yes |
| Duplex scanning | Yes |
| Input colour depth | 48 bit |
| Input greyscale depth | 16 bit |
| Output colour depth | 24 bit |
| Output greyscale depth | 8 bit |
| Output monochrome depth | 1 bit |
| ADF scan speed (b/w, A4) | 26 ppm |
| Duplex ADF scan speed (b/w, A4) | 52 ipm |
Design
| Specification | Value |
|---|---|
| Scanner type | Sheet-fed scanner |
| Built-in display | Yes |
| Product colour | White |
Performance
| Specification | Value |
|---|---|
| Sensor type | CIS |
| Light source | RGB LED |
| Daily duty cycle (max) | 3000 pages |
| Button functions | On |
| Scan drivers | ISIS, TWAIN |
Input capacity
| Specification | Value |
|---|---|
| Auto document feeder (ADF) input capacity | 50 sheets |
Paper handling
| Specification | Value |
|---|---|
| Auto Document Feeder (ADF) media weight | 50 - 209 g/m² |
| Minimum scan area (ADF) | 53.34 x 73.66 mm |
Ports & interfaces
| Specification | Value |
|---|---|
| USB port | Yes |
| USB version | 2.0 |
| Standard interfaces | USB 2.0 |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 15 W |
| Power supply type | AC |
| Power consumption (standby) | 4.1 W |
| AC input frequency | 50 - 60 Hz |
| Input voltage | 100-240 V |
| Power consumption (sleep) | 1.6 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 297 mm |
| Depth | 152 mm |
| Height | 154 mm |
| Weight | 2.5 kg |
System requirements
| Specification | Value |
|---|---|
| Mac operating systems supported | Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.9 Mavericks |
| Windows operating systems supported | Windows 10, Windows 7, Windows 8, Windows 8.1 |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 5 - 35 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 15 - 80% |
| Storage relative humidity (H-H) | 15 - 85% |
