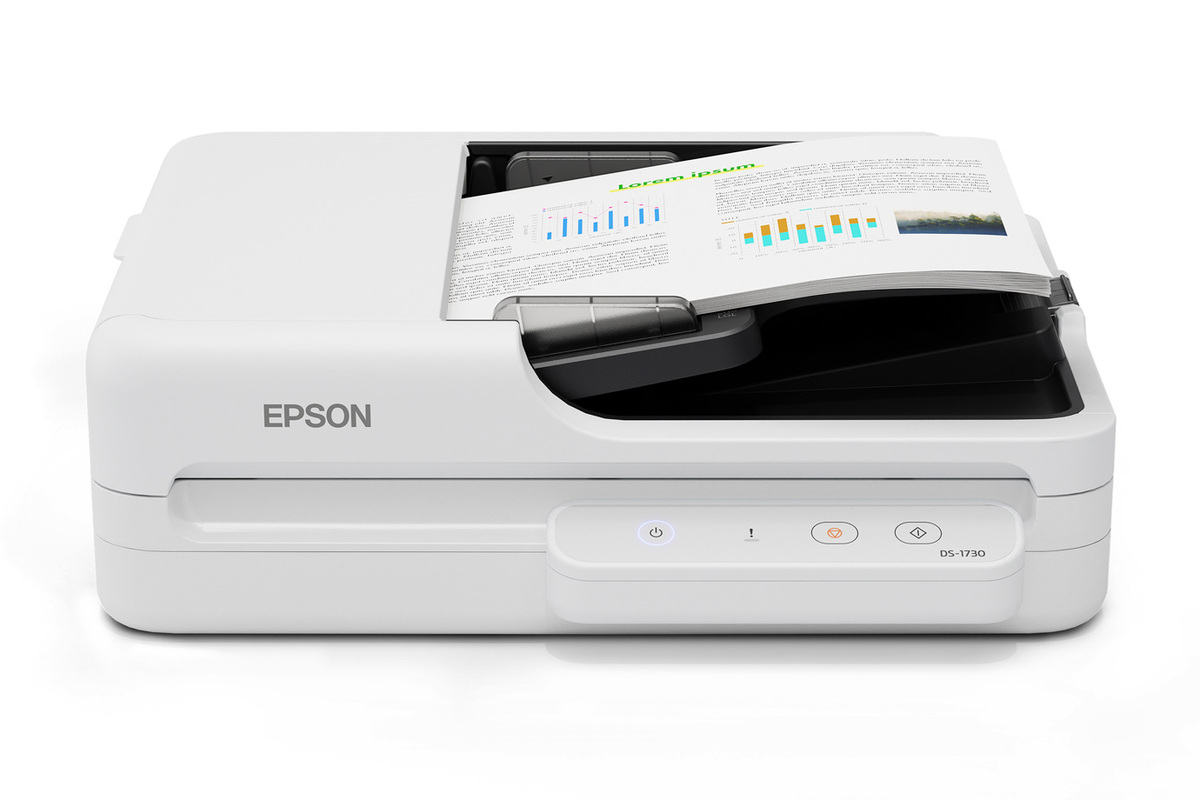

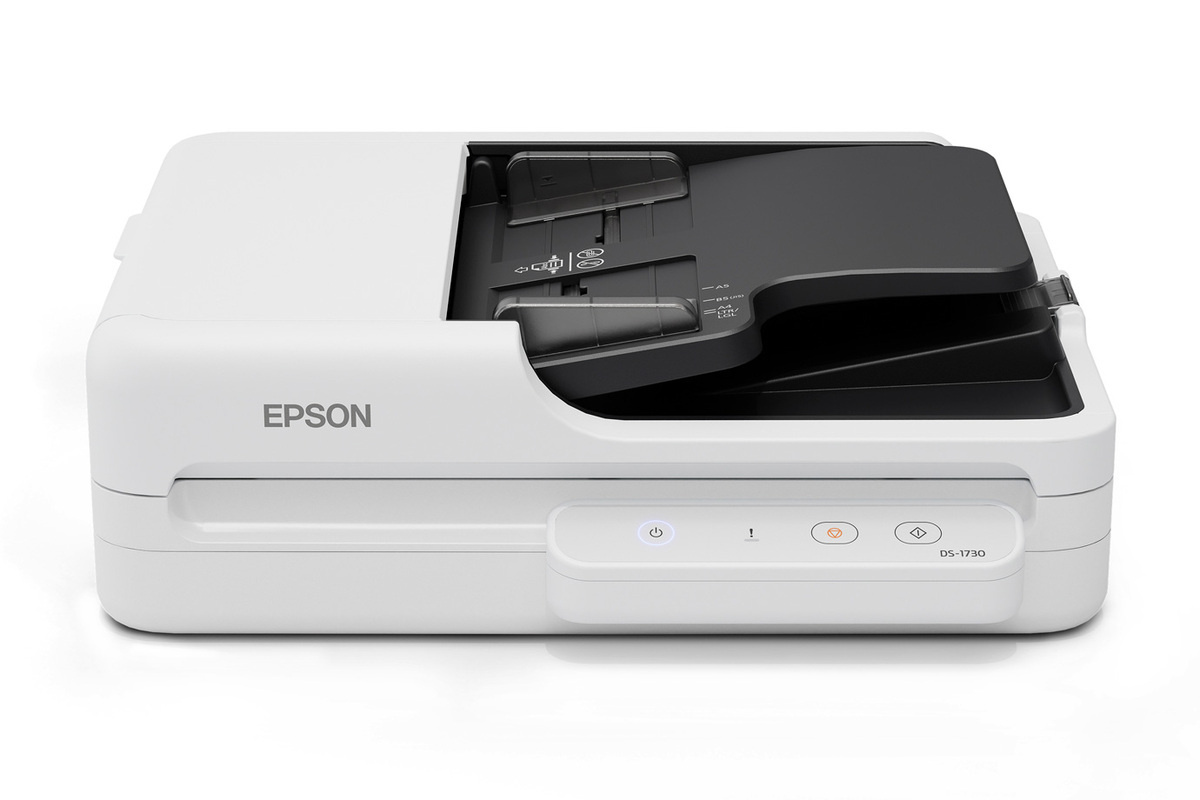

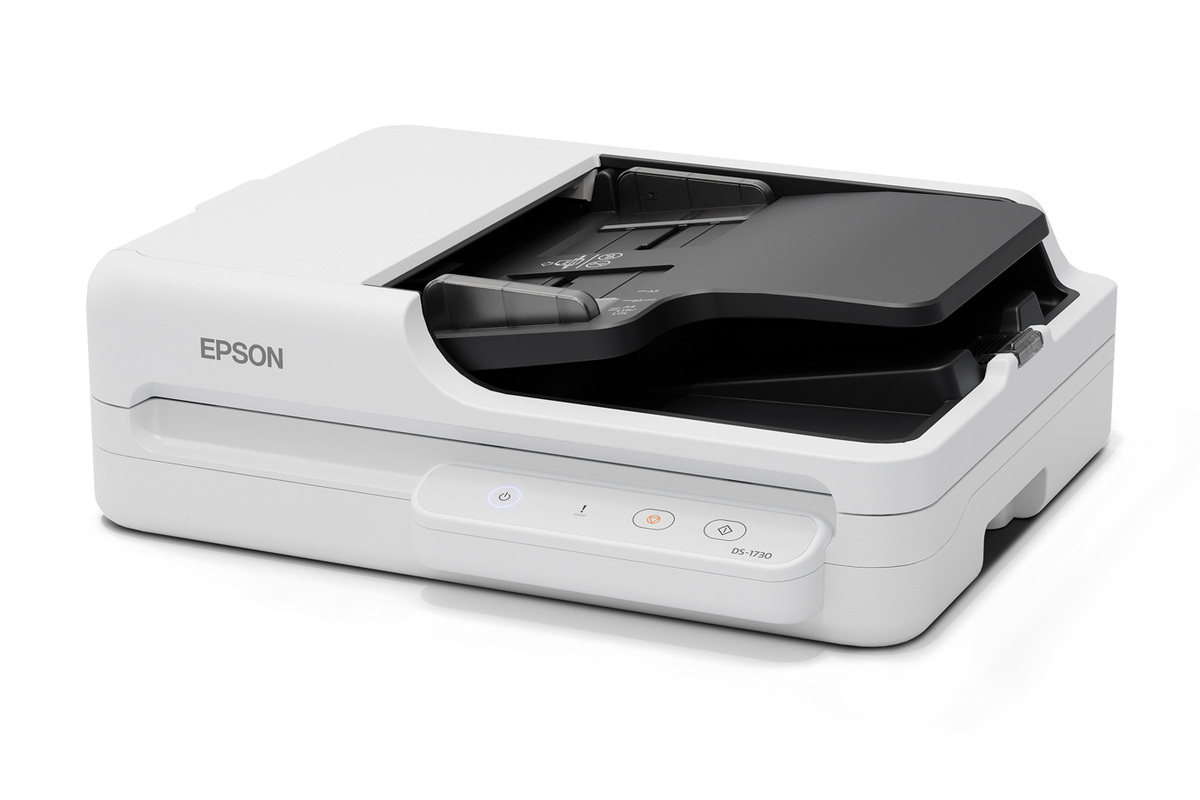

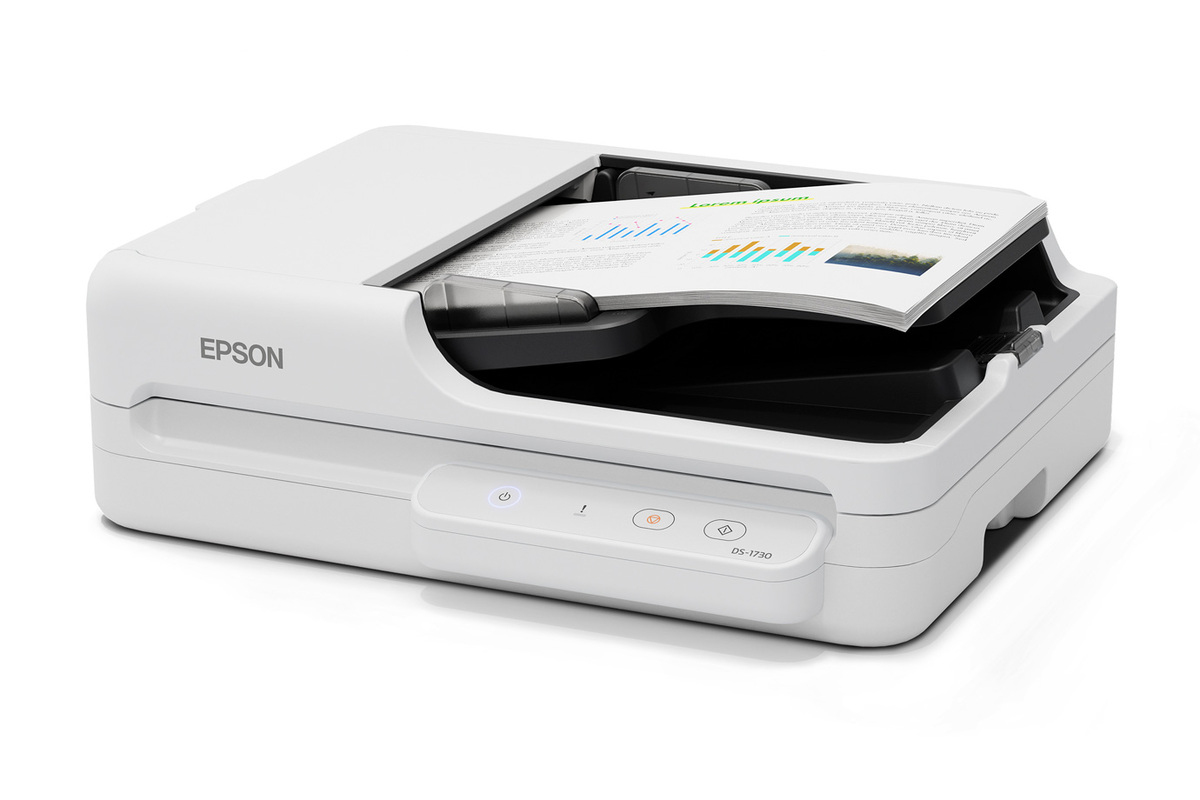

DS-1730 Flatbed & ADF scanner
1200 x 1200 DPI A4 Black, White
Model DS-1730Part no. B11B273201EAN 8715946737577
41 specifications
- Weight4.82 kg
- ColourBlack, White
- Maximum scan size215.9 x 297 mm
- Scanner typeFlatbed & ADF scanner
- Sensor typeCIS
- Standard input capacity60 sheets
Overview
- Weight
- 4.82 kg
- Colour
- Black, White
- Maximum scan size
- 215.9 x 297 mm
- Scanner type
- Flatbed & ADF scanner
- Sensor type
- CIS
- Standard input capacity
- 60 sheets
- Brand
- Epson
- Category
- Scanner
- Model
- DS-1730
- Part numbers
- B11B273201, B11B273401, B11B273401BY
- EAN / UPC
- 8715946737577, 198390001209, 8715946737560
- Also known as
- Epson DS-1730 Flatbed & ADF scanner 1200 x 1200 DPI A4 Black, White
Specifications
41 specifications in 12 groups
Scanning
| Specification | Value |
|---|---|
| Maximum scan size | 215.9 x 297 mm |
| Optical scanning resolution | 1200 x 1200 DPI |
| Duplex scanning | Yes |
| Input colour depth | 30 bit |
| Input greyscale depth | 10 bit |
| Output colour depth | 24 bit |
| Output greyscale depth | 8 bit |
Design
| Specification | Value |
|---|---|
| Scanner type | Flatbed & ADF scanner |
| Built-in display | No |
| Product colour | Black, White |
Performance
| Specification | Value |
|---|---|
| Sensor type | CIS |
| Light source | RGB LED |
| Scan file formats | BMP, JPEG, PDF, PNG, TIFF |
| Daily duty cycle (max) | 3000 pages |
| Scan drivers | ISIS, SANE, TWAIN, WIA |
Input capacity
| Specification | Value |
|---|---|
| Standard input capacity | 60 sheets |
Paper handling
| Specification | Value |
|---|---|
| Maximum ISO A-series paper size | A4 |
| Scanning media types supported | Business Card, Plastic Card |
| ISO A-series sizes (A0...A9) | A4, A5, A6 |
| ISO B-series sizes (B0...B9) | B5, B6 |
| Legal | Yes |
| Letter | Yes |
| Paper tray media weight | 50 - 120 g/m² |
Ports & interfaces
| Specification | Value |
|---|---|
| USB port | Yes |
| USB version | 2.0 |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 9 W |
| Power supply type | AC |
| Sleep mode | Yes |
| Input voltage | 100 - 240 V |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 425 mm |
| Depth | 351 mm |
| Height | 135 mm |
| Weight | 4.82 kg |
Packaging data
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
Packaging content
| Specification | Value |
|---|---|
| Cables included | AC, USB |
System requirements
| Specification | Value |
|---|---|
| Mac operating systems supported | Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina, Mac OS X 10.2 Jaguar, Mac OS X 10.3 Panther, Mac OS X 10.4 Tiger, Mac OS X 10.5 Leopard, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.7.5 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks, Mac OS X 11.0 Big Sur, Mac OS X 12. |
| Server operating systems supported | Windows Server 2008, Windows Server 2012 x64, Windows Server 2016, Windows Server 2022 |
| Windows operating systems supported | Windows 10, Windows 11, Windows 7, Windows 8, Windows 8.1 |
Operational conditions
| Specification | Value |
|---|---|
| Storage temperature (T-T) | -25 - 60 °C |
| Operating relative humidity (H-H) | 15 - 60% |
| Storage relative humidity (H-H) | 15 - 85% |
