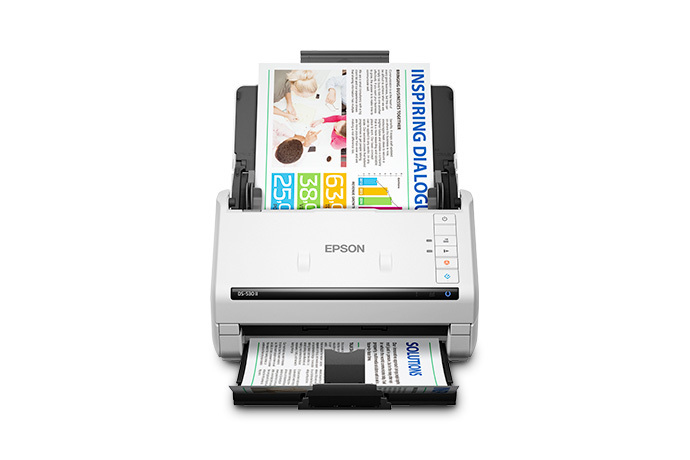

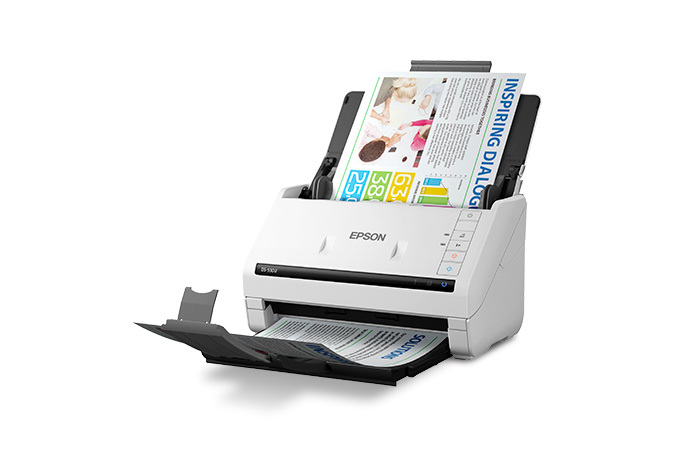

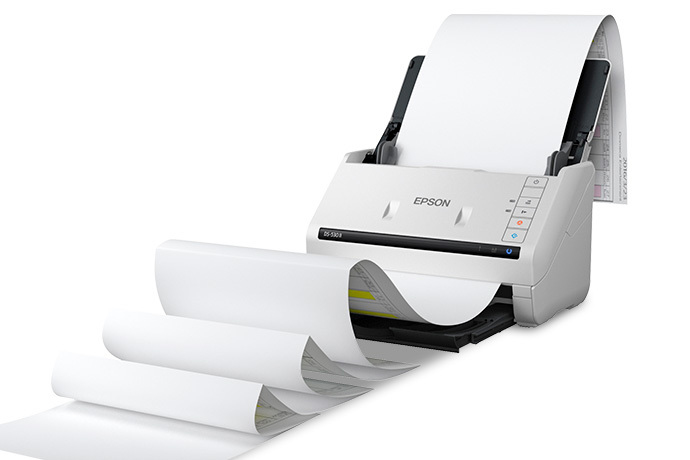

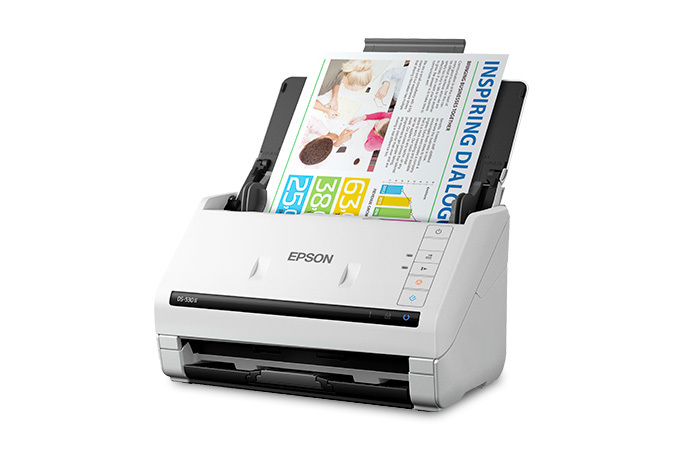

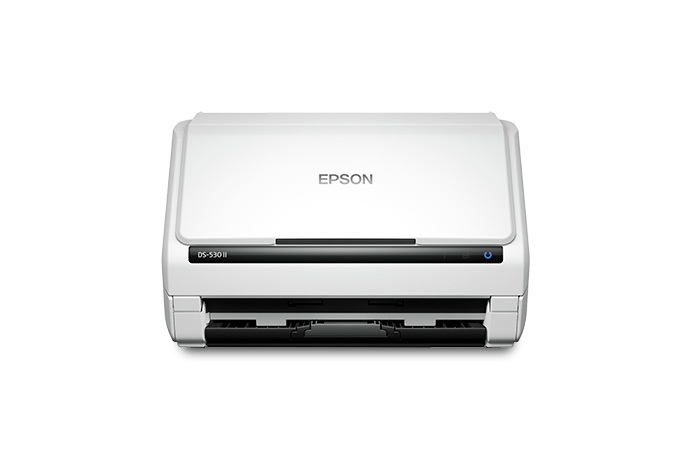

WorkForce B11B261202 scanner Sheet-fed scanner
600 x 600 DPI A4 White
Model B11B261202EAN 010343960206
46 specifications
- Weight3.67 kg
- ColourWhite
- Maximum scan size215.9 x 6096 mm
- Scanner typeSheet-fed scanner
- Sensor typeCIS
- Auto document feeder (ADF) input capacity50 sheets
Overview
- Weight
- 3.67 kg
- Colour
- White
- Maximum scan size
- 215.9 x 6096 mm
- Scanner type
- Sheet-fed scanner
- Sensor type
- CIS
- Auto document feeder (ADF) input capacity
- 50 sheets
- Brand
- Epson
- Category
- Scanner
- Model
- B11B261202
- Part number
- B11B261202
- EAN / UPC
- 010343960206
- Also known as
- Epson WorkForce B11B261202 scanner Sheet-fed scanner 600 x 600 DPI A4 White
Specifications
46 specifications in 13 groups
Scanning
| Specification | Value |
|---|---|
| Maximum scan size | 215.9 x 6096 mm |
| Optical scanning resolution | 600 x 600 DPI |
| Colour scanning | Yes |
| Duplex scanning | Yes |
| Input colour depth | 30 bit |
| Input greyscale depth | 30 bit |
| Output colour depth | 24 bit |
| Output greyscale depth | 24 bit |
| ADF scan speed (b/w, A4) | 37 ppm |
| Duplex ADF scan speed (b/w, A4) | 70 ipm |
Design
| Specification | Value |
|---|---|
| Scanner type | Sheet-fed scanner |
| Built-in display | No |
| Product colour | White |
Performance
| Specification | Value |
|---|---|
| Sensor type | CIS |
| Light source | RGB LED |
| Daily duty cycle (max) | 4000 pages |
| Button functions | Scan |
| Scan drivers | ISIS, TWAIN |
Input capacity
| Specification | Value |
|---|---|
| Auto document feeder (ADF) input capacity | 50 sheets |
Paper handling
| Specification | Value |
|---|---|
| Maximum ISO A-series paper size | A4 |
| ISO A-series sizes (A0...A9) | A4, A5, A6 |
| ISO B-series sizes (B0...B9) | B5 |
| Legal | Yes |
| Letter | Yes |
| Auto Document Feeder (ADF) media weight | 27 - 413 g/m² |
Ports & interfaces
| Specification | Value |
|---|---|
| USB port | Yes |
| USB version | 3.2 Gen 1 (3.1 Gen 1) |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 11 W |
| Power supply type | AC |
| Power consumption (standby) | 5.4 W |
| Power consumption (off) | 0.1 W |
| Sleep mode | Yes |
| Input voltage | 24 V |
| Power consumption (sleep) | 1 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 296 mm |
| Depth | 169 mm |
| Height | 176 mm |
| Weight | 3.67 kg |
Packaging data
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
Packaging content
| Specification | Value |
|---|---|
| Bundled software | Epson Scan 2, Epson Document Capture, OpenText Captiva |
System requirements
| Specification | Value |
|---|---|
| Mac operating systems supported | Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina |
| Windows operating systems supported | Windows 10, Windows 7, Windows 8, Windows 8.1 |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 5 - 35 °C |
| Storage temperature (T-T) | 25 - 60 °C |
| Operating relative humidity (H-H) | 10 - 80% |
Other features
| Specification | Value |
|---|---|
| Certification | RoHS |
Energy efficiency
ENERGY STAR certified
Imaging equipment · model B11B261202 · certified Jul 28, 2020 · United States, Canada
| Measurement | Value |
|---|---|
| Sleep-mode power | 0.79 W |
| Standby power | 0.05 W |
