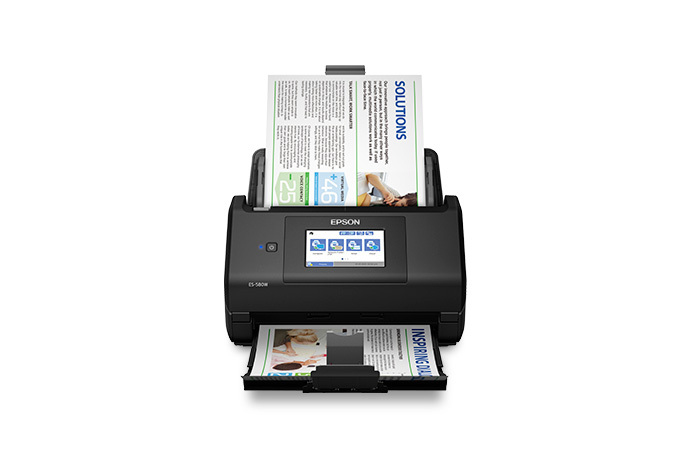

WorkForce B11B258201 scanner ADF scanner
600 x 600 DPI A4 Black
Model B11B258201EAN 010343953505
49 specifications
- Weight3.72 kg
- ColourBlack
- Maximum scan size216 x 6096 mm
- Scanner typeADF scanner
- Sensor typeCIS
- Standard input capacity100 sheets
Overview
- Weight
- 3.72 kg
- Colour
- Black
- Maximum scan size
- 216 x 6096 mm
- Scanner type
- ADF scanner
- Sensor type
- CIS
- Standard input capacity
- 100 sheets
- Brand
- Epson
- Category
- Scanner
- Model
- B11B258201
- Part number
- B11B258201
- EAN / UPC
- 010343953505
- Also known as
- Epson WorkForce B11B258201 scanner ADF scanner 600 x 600 DPI A4 Black
Specifications
49 specifications in 13 groups
Scanning
| Specification | Value |
|---|---|
| Maximum scan size | 216 x 6096 mm |
| Enhanced scan resolution | 1200 x 1200 DPI |
| Optical scanning resolution | 600 x 600 DPI |
| Colour scanning | Yes |
| Duplex scanning | Yes |
| Input colour depth | 30 bit |
| Output colour depth | 24 bit |
| ADF scan speed (b/w, A4) | 35 ppm |
| ADF scan speed (colour, A4) | 35 ppm |
| Duplex ADF scan speed (colour, A4) | 70 ipm |
Design
| Specification | Value |
|---|---|
| Scanner type | ADF scanner |
| Built-in display | Yes |
| Product colour | Black |
| Display | LCD |
Performance
| Specification | Value |
|---|---|
| Sensor type | CIS |
| Light source | RGB LED |
| Scan file formats | BMP, JPEG, PDF, PNG, TIFF |
| Daily duty cycle (max) | 4000 pages |
| Scan to | E-mail, HTTP, USB |
| Scan drivers | ICA, ISIS, SANE, TWAIN, WIA |
Input capacity
| Specification | Value |
|---|---|
| Standard input capacity | 100 sheets |
Paper handling
| Specification | Value |
|---|---|
| Maximum ISO A-series paper size | A4 |
| Scanning media types supported | Business Card, Plastic Card, Post Card(JPN) |
| ISO A-series sizes (A0...A9) | A4 |
| ISO B-series sizes (B0...B9) | B5, B6 |
| Legal | Yes |
| Letter | Yes |
| Paper tray media weight | 27 - 413 g/m² |
Ports & interfaces
| Specification | Value |
|---|---|
| USB port | Yes |
| USB version | 3.2 Gen 1 (3.1 Gen 1) |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 13 W |
| Power supply type | AC |
| Power consumption (standby) | 6.9 W |
| Power consumption (off) | 0.1 W |
| AC input frequency | 50 - 60 Hz |
| Input voltage | 100-240 V |
| Power consumption (sleep) | 1.4 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 295 mm |
| Depth | 170 mm |
| Height | 168 mm |
| Weight | 3.72 kg |
Packaging data
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
Packaging content
| Specification | Value |
|---|---|
| Cables included | AC, USB |
| Bundled software | Epson Scan 2, Epson ScanSmart |
System requirements
| Specification | Value |
|---|---|
| Mac operating systems supported | Yes |
| Windows operating systems supported | Windows 10, Windows 7, Windows 8 |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 5 - 35 °C |
| Operating relative humidity (H-H) | 10 - 80% |
Logistics data
| Specification | Value |
|---|---|
| Country of origin | Indonesia |
