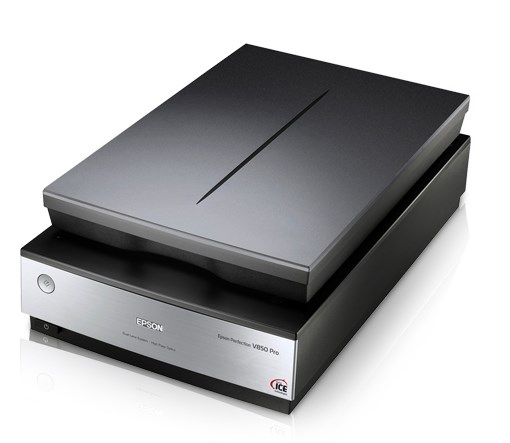

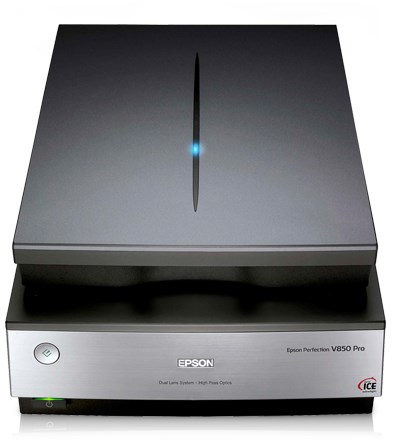

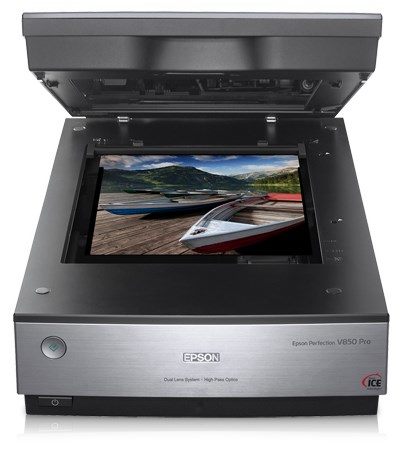

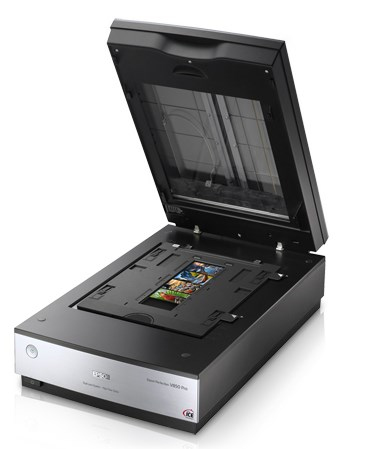

Epson B11B224201 scanner Flatbed scanner

Epson B11B224201 scanner Flatbed scanner

4800 x 6400 DPI A4 Black

Model B11B224201EAN 617297070342

51 specifications

Weight6.6 kg
ColourBlack
Maximum scan size216 x 297 mm
Scanner typeFlatbed scanner
Sensor typeCCD
Maximum ISO A-series paper sizeA4

See all specifications

Overview

Weight: 6.6 kg
Colour: Black
Maximum scan size: 216 x 297 mm
Scanner type: Flatbed scanner
Sensor type: CCD
Maximum ISO A-series paper size: A4

Brand: Epson
Category: Scanner
Model: B11B224201
Part number: B11B224201
EAN / UPC: 617297070342, 010343913165, 103439131656, 799916090907 +1 more
Also known as: Epson B11B224201 scanner Flatbed scanner 4800 x 6400 DPI A4 Black

Specifications

51 specifications in 12 groups

Scanning

Specification	Value
Maximum scan size	216 x 297 mm
Enhanced scan resolution	12800 x 12800 DPI
Optical scanning resolution	4800 x 6400 DPI
Colour scanning	Yes
Duplex scanning	No
Input colour depth	48 bit
Input greyscale depth	16 bit
Output colour depth	48 bit
Output greyscale depth	16 bit
Film scanning	Yes
Greyscale levels	16
Optical density (Dmax)	4
Hardware resolution	4800 x 9600 pixels

Design

Specification	Value
Scanner type	Flatbed scanner
Built-in display	No
Product colour	Black

Performance

Specification	Value
Sensor type	CCD
Light source	ReadyScan LED
Maximum duty cycle	100000 pages per month
Mean cycles between failures (MCBF)	100000
Button functions	Scan
Scan drivers	TWAIN

Paper handling

Specification	Value
Maximum ISO A-series paper size	A4
Scanning media types supported	Plain paper, Transparencies

Ports & interfaces

Specification	Value
USB port	Yes
USB version	2.0
Standard interfaces	USB

Network

Specification	Value
Wi-Fi	No

Power

Specification	Value
Power consumption (typical)	23 W
Power supply type	AC
Power consumption (standby)	12 W
Power consumption (off)	0.3 W
AC input frequency	50 - 60 Hz
Sleep mode	Yes
Input voltage	100-240 V
Power consumption (sleep)	1.5 W
Current	1 A

Weight & dimensions

Specification	Value
Width	503 mm
Depth	307 mm
Height	152.4 mm
Weight	6.6 kg

Packaging content

Specification	Value
Cables included	AC, USB
Quick start guide	Yes
Bundled software	Epson Scan LaserSoft Imaging SilverFast SE PLUS X-rite i1Scanner

System requirements

Specification	Value
Mac operating systems supported	Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.7.5 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks
Windows operating systems supported	Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Win

Operational conditions

Specification	Value
Operating temperature (T-T)	5 - 35 °C
Operating relative humidity (H-H)	10 - 80%
Storage relative humidity (H-H)	10 - 85%
Operating temperature (T-T)	41 - 95 °F

Other features

Specification	Value
Compliance certificates	RoHS

Energy efficiency

ENERGY STAR certified

Imaging equipment · model B11B224201 · certified Jul 22, 2014 · United States, Canada

Measurement	Value
Sleep-mode power	0.9 W
Standby power	0.04 W
