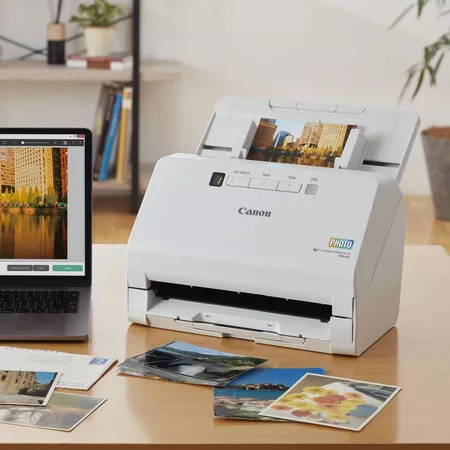

imageFORMULA RS40 Photo & Document Scanner
Model RS40Part no. 5209C003EAN 4528472109930
40 specifications
- Weight3 kg
- ColourWhite
- Optical scanning resolution600 x 600 DPI
- Scanner typeSheet-fed scanner
- Sensor typeCMOS CIS
- Standard input capacity40 sheets
Overview
- Weight
- 3 kg
- Colour
- White
- Optical scanning resolution
- 600 x 600 DPI
- Scanner type
- Sheet-fed scanner
- Sensor type
- CMOS CIS
- Standard input capacity
- 40 sheets
- Brand
- Canon
- Category
- Scanner
- Model
- RS40
- Part numbers
- 5209C003, 5209C001
- EAN / UPC
- 4528472109930, 013803343755
- Also known as
- Canon imageFORMULA RS40 Photo & Document Scanner
Specifications
40 specifications in 11 groups
Scanning
| Specification | Value |
|---|---|
| Optical scanning resolution | 600 x 600 DPI |
| Colour scanning | Yes |
| Duplex scanning | Yes |
| ADF scan speed (b/w, A4) | 40 ppm |
| ADF scan speed (colour, A4) | 30 ppm |
| Black/white scanning colour modes | Grayscale, Monochrome |
Design
| Specification | Value |
|---|---|
| Scanner type | Sheet-fed scanner |
| Built-in display | Yes |
| Product colour | White |
Performance
| Specification | Value |
|---|---|
| Sensor type | CMOS CIS |
| Light source | RGB LED |
| Scan drivers | TWAIN |
| Ultrasonic double sheet detection | Yes |
Input capacity
| Specification | Value |
|---|---|
| Standard input capacity | 40 sheets |
| Auto document feeder (ADF) input capacity | 60 sheets |
Paper handling
| Specification | Value |
|---|---|
| Long-paper mode | Yes |
| Media thickness (min) | 0.04 mm |
| Card thickness (max) | 1.4 mm |
| Maximum scan width | 21.6 cm |
| Maximum scan length | 3 m |
Ports & interfaces
| Specification | Value |
|---|---|
| USB port | Yes |
| USB version | 2.0 |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 19 W |
| Power supply type | AC |
| Power consumption (off) | 0.1 W |
| AC input frequency | 50 - 60 Hz |
| Input voltage | 100 - 240 V |
| Power consumption (sleep) | 1.4 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 291 mm |
| Depth | 600 mm |
| Height | 382 mm |
| Weight | 3 kg |
| Folded width | 29.1 cm |
| Folded depth | 25 cm |
| Folded height | 24.5 cm |
Packaging data
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
Packaging content
| Specification | Value |
|---|---|
| Cables included | AC, USB |
| Bundled software | TWAIN driver, CaptureOnTouch, Microsoft Windows 8.1 (32/64-bit) Microsoft Windows 10 (32/64-bit) Microsoft Windows 11 macOS 10,15 macOS 11 macOS 12 |
System requirements
| Specification | Value |
|---|---|
| Mac operating systems supported | Yes |
| Windows operating systems supported | Windows 10, Windows 11, Windows 8.1 |
