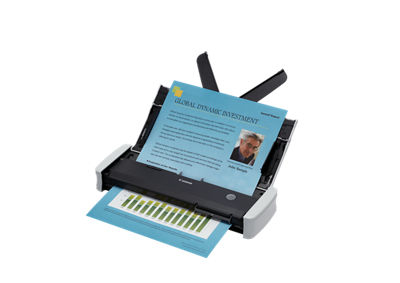

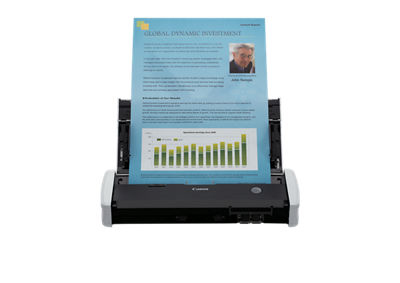

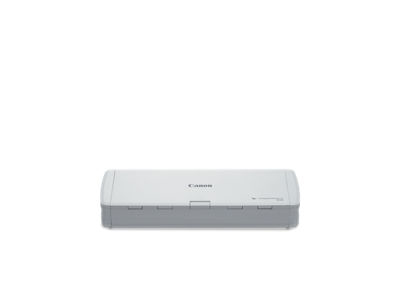

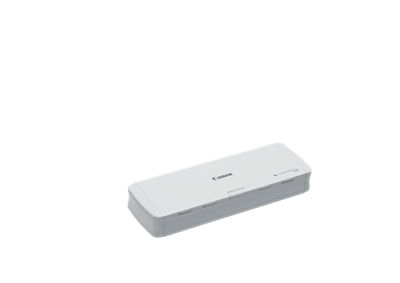

imageFORMULA R10 Sheet-fed scanner
600 x 600 DPI A4 White
Model R10Part no. 4861C003EAN 4528472110240
30 specifications
- Weight900 g
- ColourWhite
- Maximum scan size216 x 356 mm
- Scanner typeSheet-fed scanner
- Sensor typeCMOS CIS
- Maximum ISO A-series paper sizeA4
Overview
- Weight
- 900 g
- Colour
- White
- Maximum scan size
- 216 x 356 mm
- Scanner type
- Sheet-fed scanner
- Sensor type
- CMOS CIS
- Maximum ISO A-series paper size
- A4
- Brand
- Canon
- Category
- Scanner
- Model
- R10
- Part numbers
- 4861C003, 4861C001
- EAN / UPC
- 4528472110240, 013803338522, 4528472109831, 5715063274446
- Also known as
- Canon imageFORMULA R10 Sheet-fed scanner 600 x 600 DPI A4 White
Specifications
30 specifications in 10 groups
Scanning
| Specification | Value |
|---|---|
| Maximum scan size | 216 x 356 mm |
| Optical scanning resolution | 600 x 600 DPI |
| Colour scanning | Yes |
| Duplex scanning | Yes |
Design
| Specification | Value |
|---|---|
| Scanner type | Sheet-fed scanner |
| Built-in display | No |
| Product colour | White |
Performance
| Specification | Value |
|---|---|
| Sensor type | CMOS CIS |
| Light source | RGB LED |
| Daily duty cycle (max) | 500 pages |
Paper handling
| Specification | Value |
|---|---|
| Maximum ISO A-series paper size | A4 |
| Legal | Yes |
| Media thickness (min) | 0.08 mm |
| Card thickness (max) | 1.4 mm |
| Paper tray media weight | 64 - 128 g/m² |
| Maximum scan width | 21.6 cm |
| Maximum scan length | 35.6 cm |
Ports & interfaces
| Specification | Value |
|---|---|
| USB port | Yes |
| USB version | 2.0 |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 2.5 W |
| Power supply type | USB |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 285 mm |
| Depth | 95 mm |
| Height | 40 mm |
| Weight | 900 g |
Packaging data
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
System requirements
| Specification | Value |
|---|---|
| Mac operating systems supported | Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina |
| Windows operating systems supported | Windows 10, Windows 10 x64, Windows 8.1, Windows 8.1 x64 |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 10 - 32.5 °C |
| Operating relative humidity (H-H) | 20 - 80% |
