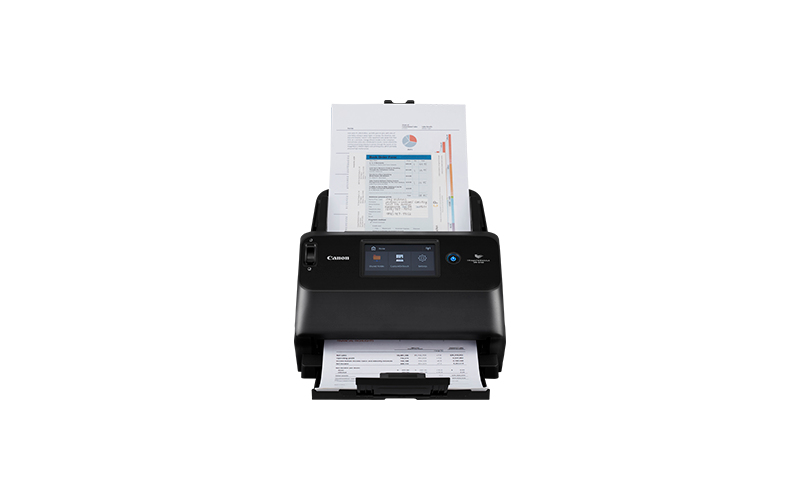

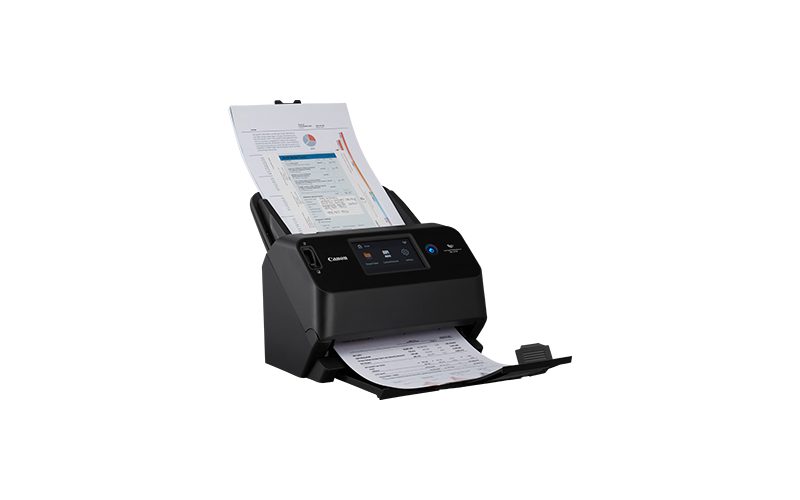

imageFORMULA DR-S150 ADF + Manual feed scanner
600 x 600 DPI A4 Black
Model DR-S150Part no. 4044C003EAN 4528472109206
46 specifications
- Weight3.3 kg
- ColourBlack
- Maximum scan size216 x 356 mm
- Scanner typeADF + Manual feed scanner
- Sensor typeCMOS CIS
- Auto document feeder (ADF) input capacity60 sheets
Overview
- Weight
- 3.3 kg
- Colour
- Black
- Maximum scan size
- 216 x 356 mm
- Scanner type
- ADF + Manual feed scanner
- Sensor type
- CMOS CIS
- Auto document feeder (ADF) input capacity
- 60 sheets
- Brand
- Canon
- Category
- Scanner
- Model
- DR-S150
- Part numbers
- 4044C003, DR-S150
- EAN / UPC
- 4528472109206, 4528472109213
- Also known as
- Canon imageFORMULA DR-S150 ADF + Manual feed scanner 600 x 600 DPI A4 Black
Specifications
46 specifications in 13 groups
Scanning
| Specification | Value |
|---|---|
| Maximum scan size | 216 x 356 mm |
| Optical scanning resolution | 600 x 600 DPI |
| Colour scanning | Yes |
| Duplex scanning | Yes |
| ADF scan speed (b/w, A4) | 45 ppm |
| ADF scan speed (colour, A4) | 45 ppm |
| Duplex ADF scan speed (b/w, A4) | 90 ipm |
| Duplex ADF scan speed (colour, A4) | 90 ipm |
Design
| Specification | Value |
|---|---|
| Scanner type | ADF + Manual feed scanner |
| Built-in display | Yes |
| Product colour | Black |
| Display | LCD |
| Touchscreen | Yes |
| Colour display | Yes |
Performance
| Specification | Value |
|---|---|
| Sensor type | CMOS CIS |
| Light source | RGB LED |
| Daily duty cycle (max) | 4000 pages |
| Barcode reader | Yes |
| Scan drivers | ISIS, TWAIN |
Input capacity
| Specification | Value |
|---|---|
| Auto document feeder (ADF) input capacity | 60 sheets |
Paper handling
| Specification | Value |
|---|---|
| Maximum ISO A-series paper size | A4 |
| Scanning media types supported | Business Card, Plastic Card |
| Maximum scan width | 21.6 cm |
| Maximum scan length | 35.6 cm |
Ports & interfaces
| Specification | Value |
|---|---|
| USB port | Yes |
| USB version | 3.2 Gen 2 (3.1 Gen 2) |
| Standard interfaces | Ethernet, USB 3.2 Gen 1 (3.1 Gen 1), Wireless LAN |
Network
| Specification | Value |
|---|---|
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
| Ethernet LAN | Yes |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 22.5 W |
| Power supply type | AC |
| Power consumption (off) | 0.1 W |
| AC input frequency | 50 - 60 Hz |
| Sleep mode | Yes |
| Input voltage | 100 - 240 V |
| Power consumption (sleep) | 3.4 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 291 mm |
| Depth | 247 mm |
| Height | 242 mm |
| Weight | 3.3 kg |
Packaging content
| Specification | Value |
|---|---|
| Bundled software | CaptureOnTouch Pro CaptureOnTouch JobTool Wireless Connection Setup Tool |
System requirements
| Specification | Value |
|---|---|
| Server operating systems supported | Windows Server 2008 R2, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019 |
| Windows operating systems supported | Windows 10, Windows 7, Windows 8.1 |
Other features
| Specification | Value |
|---|---|
| Certification | EPEAT Gold |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 84716070 |
