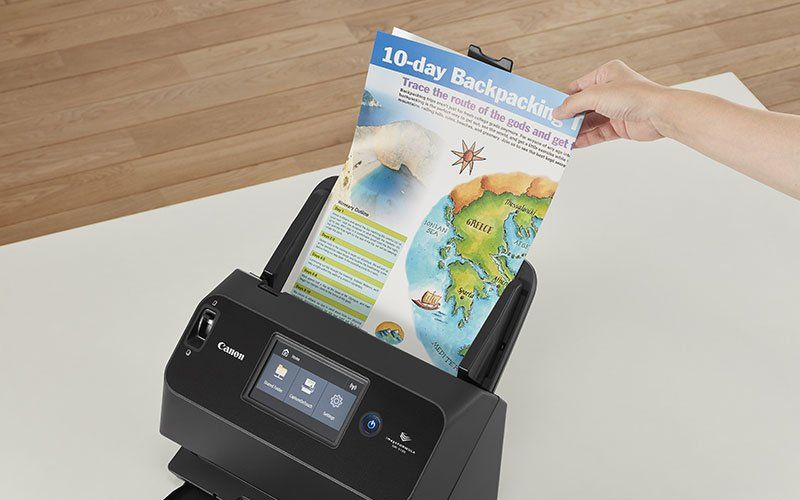

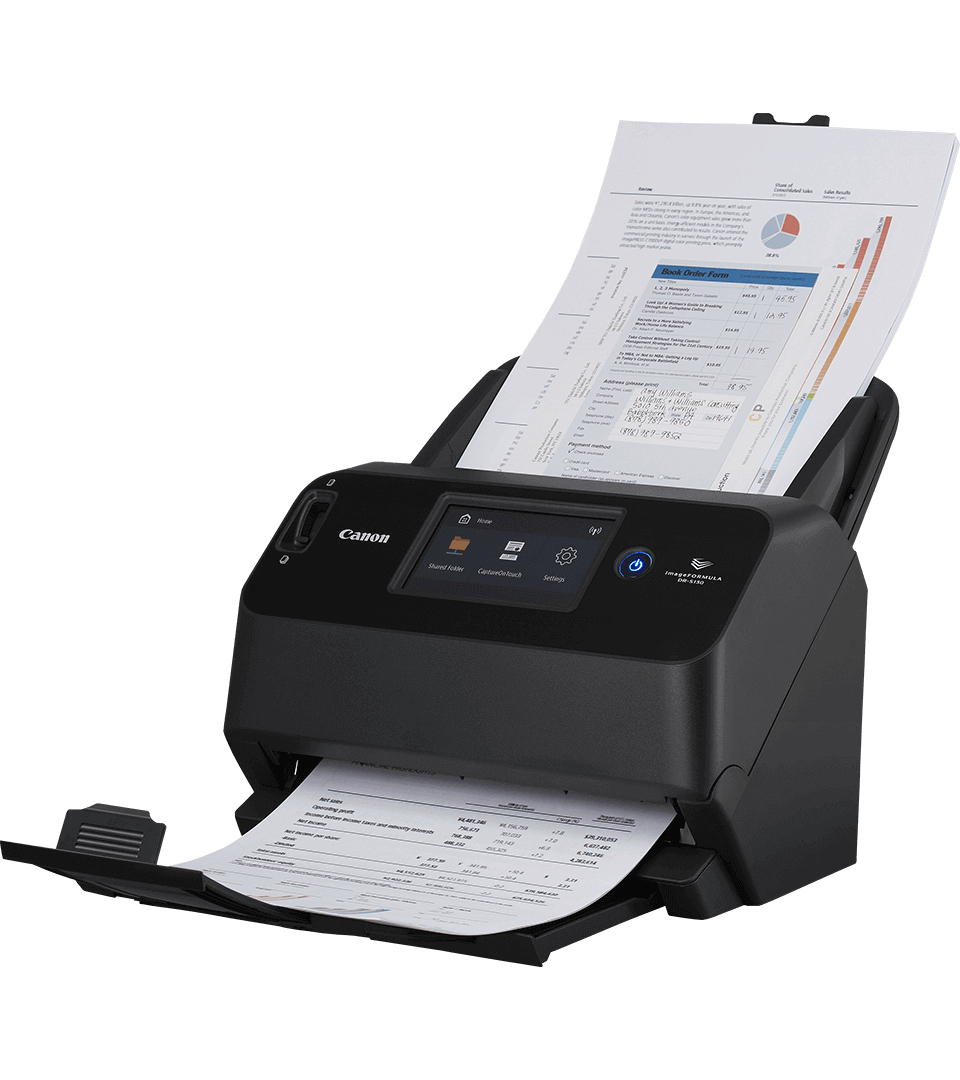

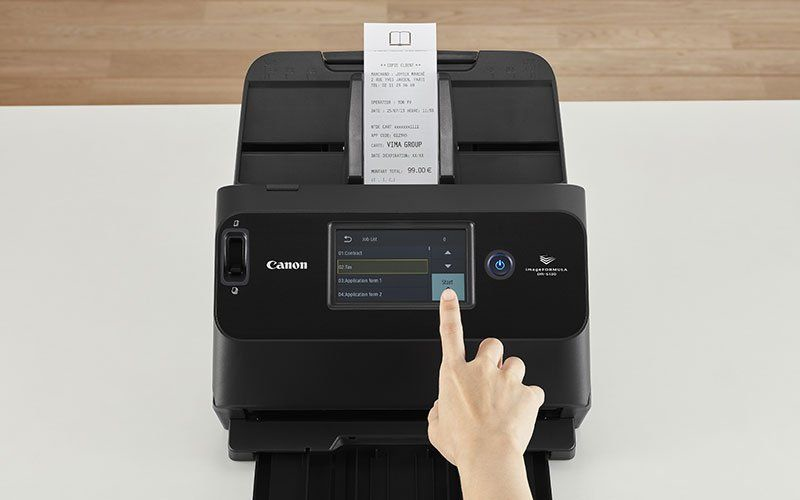

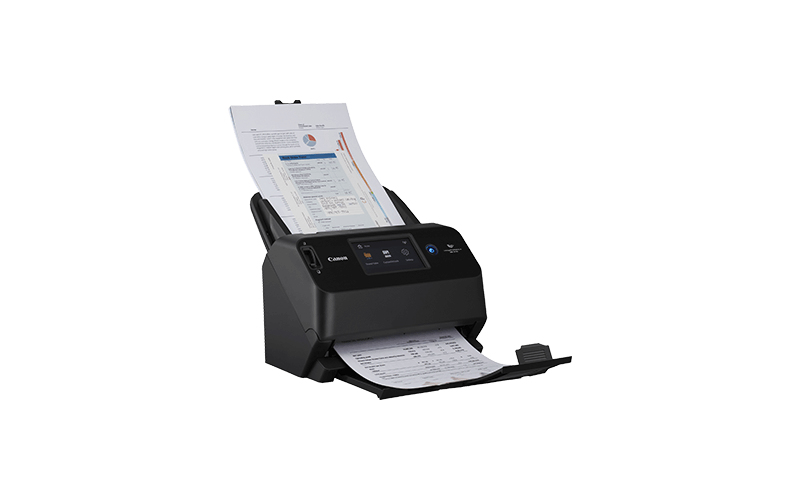

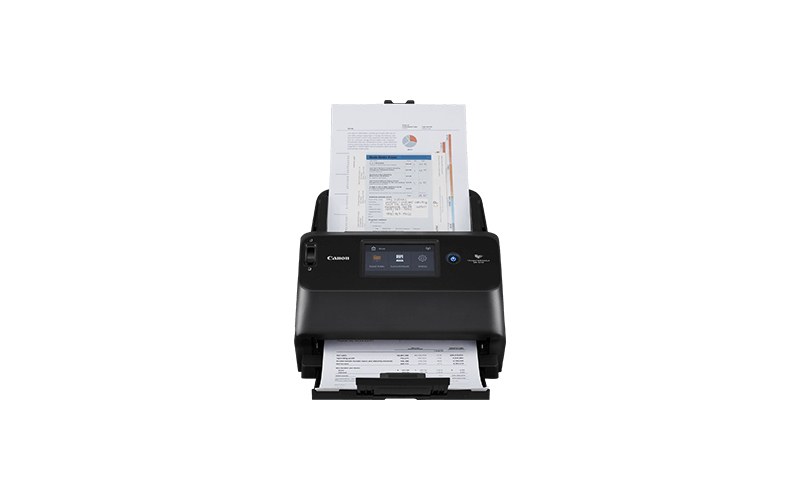

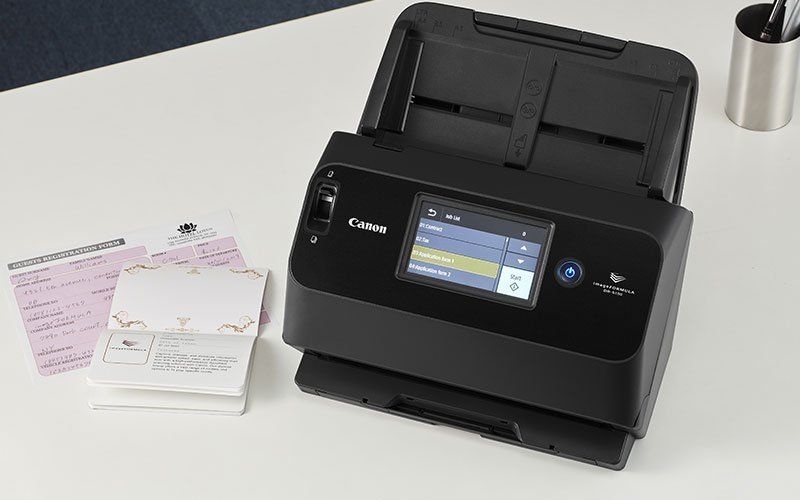

imageFORMULA DR-S130 Sheet-fed scanner
600 x 600 DPI A4 Black
Model DR-S130Part no. 4812C001EAN 4528472109442
58 specifications
- Display10.9 cm (4.3")
- Weight3.3 kg
- ColourBlack
- Maximum scan size216 x 356 mm
- Scanner typeSheet-fed scanner
- Sensor typeCMOS CIS
Overview
- Display
- 10.9 cm (4.3")
- Weight
- 3.3 kg
- Colour
- Black
- Maximum scan size
- 216 x 356 mm
- Scanner type
- Sheet-fed scanner
- Sensor type
- CMOS CIS
- Brand
- Canon
- Category
- Scanner
- Model
- DR-S130
- Part number
- 4812C001
- EAN / UPC
- 4528472109442
- Also known as
- Canon imageFORMULA DR-S130 Sheet-fed scanner 600 x 600 DPI A4 Black
Specifications
58 specifications in 15 groups
Scanning
| Specification | Value |
|---|---|
| Maximum scan size | 216 x 356 mm |
| Optical scanning resolution | 600 x 600 DPI |
| Colour scanning | Yes |
| Duplex scanning | Yes |
| Output colour depth | 24 bit |
| Output greyscale depth | 8 bit |
| ADF scan speed (b/w, A4) | 30 ppm |
| ADF scan speed (colour, A4) | 30 ppm |
| Black/white scanning colour modes | Grayscale, Monochrome |
Design
| Specification | Value |
|---|---|
| Scanner type | Sheet-fed scanner |
| Built-in display | Yes |
| Product colour | Black |
| Display | LCD |
| Display diagonal | 10.9 cm (4.3") |
| Touchscreen | Yes |
| Colour display | Yes |
Performance
| Specification | Value |
|---|---|
| Sensor type | CMOS CIS |
| Light source | RGB LED |
| Daily duty cycle (max) | 3500 pages |
| Built-in OCR | Yes |
| Barcode reader | Yes |
| Scan drivers | ISIS, TWAIN |
| Ultrasonic double sheet detection | Yes |
Input capacity
| Specification | Value |
|---|---|
| Auto document feeder (ADF) input capacity | 60 sheets |
Paper handling
| Specification | Value |
|---|---|
| Maximum ISO A-series paper size | A4 |
| Scanning media types supported | Business Card, Plain paper, Plastic Card |
| Long-paper mode | Yes |
| ID-card slot | Yes |
| Legal | Yes |
| Media thickness (min) | 0.04 mm |
| Card thickness (max) | 1.4 mm |
| Auto Document Feeder (ADF) media weight | 20 - 209 g/m² |
| Maximum scan width | 21.6 cm |
| Maximum scan length | 3 m |
Ports & interfaces
| Specification | Value |
|---|---|
| USB port | Yes |
| USB version | 2.0/3.2 Gen 1 (3.1 Gen 1) |
Network
| Specification | Value |
|---|---|
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 22.5 W |
| Power supply type | AC |
| Power consumption (off) | 0.1 W |
| AC input frequency | 50 - 60 Hz |
| Sleep mode | Yes |
| Input voltage | 100 - 240 V |
| Power consumption (sleep) | 3.4 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 291 mm |
| Depth | 600 mm |
| Height | 378 mm |
| Weight | 3.3 kg |
Packaging data
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
Packaging content
| Specification | Value |
|---|---|
| Bundled software | ISIS /TWAIN Driver (Windows 7 SP1/ 8.1/ 10. Windows Server 2008 R2 SP1 / Server 2012 R2 / Server 2016, Server 2019) CaptureOnTouch Pro CaptureOnTouch JobTool Wireless Connection Setup Tool Mac TWAIN Driver (Mac OS 10.13, 10.14 and 10.15 or later) CaptureOnTouch |
Sustainability
| Specification | Value |
|---|---|
| Sustainability certificates | EPEAT Silver |
System requirements
| Specification | Value |
|---|---|
| Mac operating systems supported | Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina |
| Server operating systems supported | Windows Server 2008 R2, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019 |
| Windows operating systems supported | Windows 10, Windows 7, Windows 8.1 |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 10 - 32.5 °C |
| Operating relative humidity (H-H) | 20 - 80% |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 84716070 |
