Canon imageFORMULA DR-M260 High-Speed Duplex Departmental Document Scanner
Model DR-M260Part no. 2405C001EAN 4528472107691
45 specifications
- Weight3.6 kg
- ColourBlack
- Maximum scan size216 x 5588 mm
- Scanner typeSheet-fed scanner
- Sensor typeCMOS CIS
- Standard input capacity80 sheets
Overview
- Weight
- 3.6 kg
- Colour
- Black
- Maximum scan size
- 216 x 5588 mm
- Scanner type
- Sheet-fed scanner
- Sensor type
- CMOS CIS
- Standard input capacity
- 80 sheets
- Brand
- Canon
- Category
- Scanner
- Model
- DR-M260
- Part numbers
- 2405C001, 2405C003, 2405C002
- EAN / UPC
- 4528472107691, 013803295290, 4058154234846, 4528472107707 +1 more
- Also known as
- Canon imageFORMULA DR-M260 High-Speed Duplex Departmental Document Scanner
Specifications
45 specifications in 12 groups
Scanning
| Specification | Value |
|---|---|
| Maximum scan size | 216 x 5588 mm |
| Optical scanning resolution | 600 x 600 DPI |
| Colour scanning | Yes |
| Duplex scanning | Yes |
| Output colour depth | 24 bit |
| Output greyscale depth | 8 bit |
| Greyscale levels | 256 |
| ADF scan speed (b/w, A4) | 60 ppm |
| ADF scan speed (colour, A4) | 60 ppm |
| Duplex ADF scan speed (b/w, A4) | 120 ipm |
| Duplex ADF scan speed (colour, A4) | 120 ipm |
Design
| Specification | Value |
|---|---|
| Scanner type | Sheet-fed scanner |
| Built-in display | Yes |
| Product colour | Black |
| Display | LCD |
Performance
| Specification | Value |
|---|---|
| Sensor type | CMOS CIS |
| Light source | RGB LED |
| Scan file formats | |
| Daily duty cycle (max) | 7500 pages |
| Scan drivers | ISIS, TWAIN |
Input capacity
| Specification | Value |
|---|---|
| Standard input capacity | 80 sheets |
Paper handling
| Specification | Value |
|---|---|
| Maximum ISO A-series paper size | A4 |
| Scanning media types supported | Business Card, Plastic Card, Post Card(JPN) |
| Media thickness (min) | 0.04 mm |
| Maximum scan width | 21.6 cm |
| Maximum scan length | 5.59 m |
Ports & interfaces
| Specification | Value |
|---|---|
| USB port | Yes |
| USB version | 3.2 Gen 2 (3.1 Gen 2) |
| Standard interfaces | USB 3.2 Gen 1 (3.1 Gen 1) |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 23 W |
| Power supply type | AC |
| Power consumption (standby) | 1.4 W |
| Power consumption (off) | 0.1 W |
| AC input frequency | 50 - 60 Hz |
| Input voltage | 100-240 V |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 180 mm |
| Depth | 178 mm |
| Height | 285 mm |
| Weight | 3.6 kg |
Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
| Cables included | AC, USB |
System requirements
| Specification | Value |
|---|---|
| Server operating systems supported | Windows Server 2008 R2, Windows Server 2012 R2, Windows Server 2016 |
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, |
Other features
| Specification | Value |
|---|---|
| Scan media weight | 27 - 413 g/m² |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 84716070 |
Energy efficiency
ENERGY STAR certified
Imaging equipment · model M111281 · certified Sep 27, 2019 · United States, Canada
| Measurement | Value |
|---|---|
| Sleep-mode power | 1.34 W |
| Standby power | 0.04 W |
What people say
Reviews & ratings
Canon imageFORMULA DR-M260 High-Speed Duplex Departmental Document Scanner
No reviews yet
Be the first to tell others how Canon imageFORMULA DR-M260 High-Speed Duplex Departmental Document Scanner works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare Canon imageFORMULA DR-M260 High-Speed Duplex Departmental Document Scanner
All scanner comparisons- Canon imageFORMULA DR-M260 High-Speed Duplex Departmental Document Scanner vsCanon imageFORMULA DR-C230 Duplex Desktop Document ScannerCompare specs

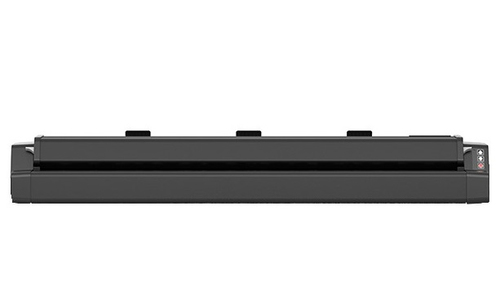

- Canon imageFORMULA DR-M260 High-Speed Duplex Departmental Document Scanner vsCanon T36 1200 x 1200 DPI A0 BlackCompare specs
- Canon imageFORMULA DR-M260 High-Speed Duplex Departmental Document Scanner vsCanon CR-120 UVCompare specs
- Canon imageFORMULA DR-M260 High-Speed Duplex Departmental Document Scanner vsCanon 102 Flatbed & ADF scannerCompare specs

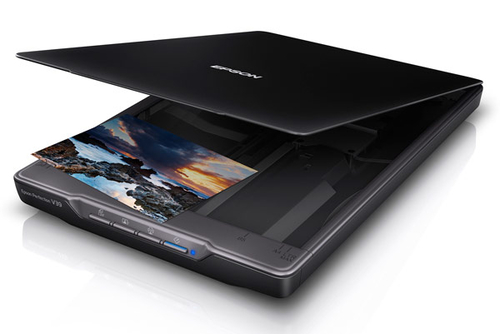

- Canon imageFORMULA DR-M260 High-Speed Duplex Departmental Document Scanner vsEpson Perfection V39Compare specs

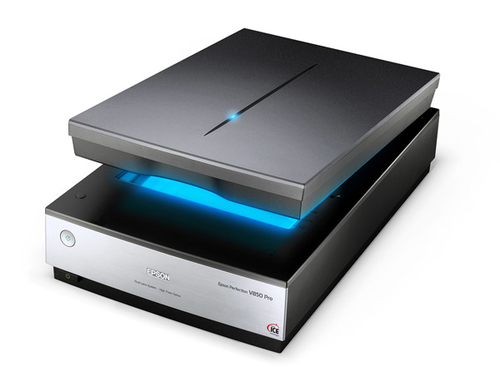

- Canon imageFORMULA DR-M260 High-Speed Duplex Departmental Document Scanner vsEpson Perfection V850 ProCompare specs
