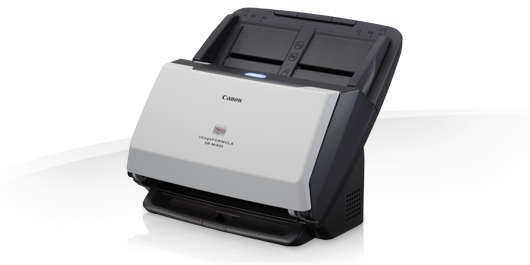

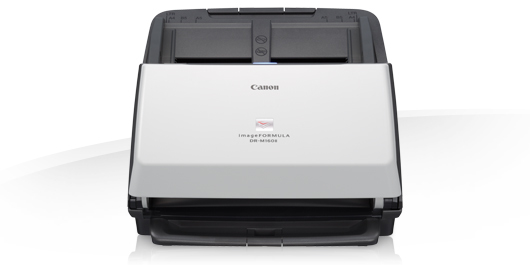

imageFORMULA DR-M160II Compact A4 Document scanner
Model DR-M160IIPart no. 0114T27903EAN 660685130623
42 specifications
- Weight3.2 kg
- ColourBlack
- Maximum scan size216 x 3000 mm
- Scanner typeSheet-fed scanner
- Sensor typeCMOS CIS
- Standard input capacity60 sheets
Overview
- Weight
- 3.2 kg
- Colour
- Black
- Maximum scan size
- 216 x 3000 mm
- Scanner type
- Sheet-fed scanner
- Sensor type
- CMOS CIS
- Standard input capacity
- 60 sheets
- Brand
- Canon
- Category
- Scanner
- Model
- DR-M160II
- Part numbers
- 0114T27903, 9725B003, 9725B002, 9725B003-AE
- EAN / UPC
- 660685130623, 4053162439924, 5054484650720, 5054533650725 +2 more
- Also known as
- Canon imageFORMULA DR-M160II Compact A4 Document scanner
Specifications
42 specifications in 13 groups
Scanning
| Specification | Value |
|---|---|
| Maximum scan size | 216 x 3000 mm |
| Optical scanning resolution | 600 x 600 DPI |
| Colour scanning | Yes |
| Duplex scanning | Yes |
| Output colour depth | 24 bit |
| Output greyscale depth | 8 bit |
| Film scanning | No |
| Greyscale levels | 256 |
| ADF scan speed (b/w, A4) | 60 ppm |
| ADF scan speed (colour, A4) | 60 ppm |
| Duplex ADF scan speed (b/w, A4) | 120 ipm |
| Duplex ADF scan speed (colour, A4) | 120 ipm |
| Black/white scanning colour modes | Grayscale |
Design
| Specification | Value |
|---|---|
| Scanner type | Sheet-fed scanner |
| Built-in display | No |
| Product colour | Black |
Performance
| Specification | Value |
|---|---|
| Sensor type | CMOS CIS |
| Light source | RGB LED |
| Daily duty cycle (max) | 7000 pages |
| Scan drivers | ISIS, TWAIN |
Input capacity
| Specification | Value |
|---|---|
| Standard input capacity | 60 sheets |
Paper handling
| Specification | Value |
|---|---|
| Maximum ISO A-series paper size | A4 |
Ports & interfaces
| Specification | Value |
|---|---|
| USB port | Yes |
| USB version | 2.0 |
| Standard interfaces | USB 2.0 |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 27 W |
| Power supply type | AC |
| Power consumption (standby) | 1.8 W |
| Power consumption (off) | 0.5 W |
| AC input frequency | 50 - 60 Hz |
| Input voltage | 100-240 V |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 280 mm |
| Depth | 606 mm |
| Height | 366.4 mm |
| Weight | 3.2 kg |
Packaging content
| Specification | Value |
|---|---|
| Drivers included | Yes |
| Bundled software | CapturePerfect CaptureOnTouch eCopy PDF Pro Office Kofax VRS (with AIPE) Plug-in: EMC Captiva Cloud Runtime Controls |
Sustainability
| Specification | Value |
|---|---|
| Sustainability certificates | ENERGY STAR |
System requirements
| Specification | Value |
|---|---|
| Mac operating systems supported | Yes |
| Windows operating systems supported | Yes |
Other features
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 84716070 |
Energy efficiency
ENERGY STAR certified
Imaging equipment · model M111092 · certified Sep 30, 2019 · United States, Canada
| Measurement | Value |
|---|---|
| Sleep-mode power | 1.3 W |
| Standby power | 0.05 W |
