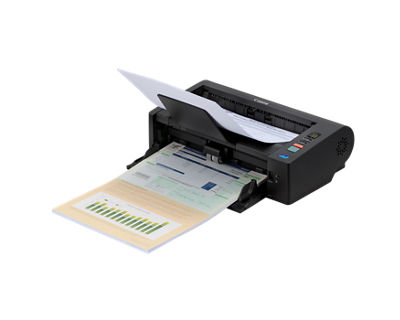

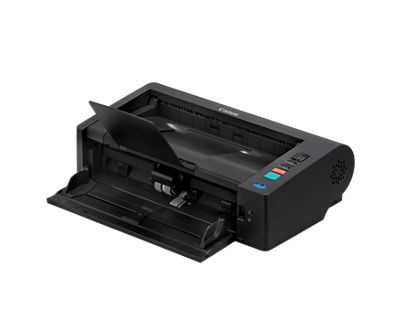

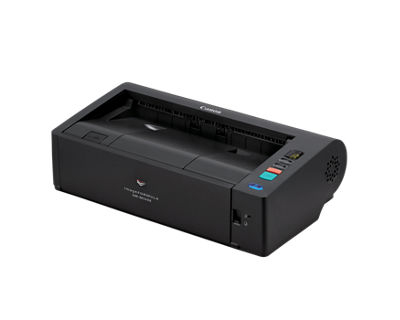

imageFORMULA DR-M140II ADF + Sheet-fed scanner
600 x 600 DPI A4 Black
Model DR-M140IIPart no. 6050C002EAN 013803371758
35 specifications
- Weight2.58 kg
- ColourBlack
- Maximum scan size216 x 5588 mm
- Scanner typeADF + Sheet-fed scanner
- Sensor typeCMOS CIS
- Maximum ISO A-series paper sizeA4
Overview
- Weight
- 2.58 kg
- Colour
- Black
- Maximum scan size
- 216 x 5588 mm
- Scanner type
- ADF + Sheet-fed scanner
- Sensor type
- CMOS CIS
- Maximum ISO A-series paper size
- A4
- Brand
- Canon
- Category
- Scanner
- Model
- DR-M140II
- Part numbers
- 6050C002, 6050C003
- EAN / UPC
- 013803371758, 013803371765, 4528472111452
- Also known as
- Canon imageFORMULA DR-M140II ADF + Sheet-fed scanner 600 x 600 DPI A4 Black
Specifications
35 specifications in 9 groups
Scanning
| Specification | Value |
|---|---|
| Maximum scan size | 216 x 5588 mm |
| Optical scanning resolution | 600 x 600 DPI |
| Colour scanning | Yes |
| Duplex scanning | Yes |
| ADF scan speed (b/w, A4) | 40 ppm |
| ADF scan speed (colour, A4) | 40 ppm |
| Duplex ADF scan speed (b/w, A4) | 80 ipm |
| Duplex ADF scan speed (colour, A4) | 80 ipm |
Design
| Specification | Value |
|---|---|
| Scanner type | ADF + Sheet-fed scanner |
| Built-in display | No |
| Product colour | Black |
Performance
| Specification | Value |
|---|---|
| Sensor type | CMOS CIS |
| Light source | RGB LED |
Paper handling
| Specification | Value |
|---|---|
| Maximum ISO A-series paper size | A4 |
| Scanning media types supported | Business Card |
| Long-paper mode | Yes |
| ISO A-series sizes (A0...A9) | A4 |
| Maximum scan width | 21.6 cm |
| Maximum scan length | 35.6 cm |
Ports & interfaces
| Specification | Value |
|---|---|
| USB port | Yes |
| USB version | 2.0 |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 24.5 W |
| Power supply type | AC |
| Power consumption (off) | 0.1 W |
| AC input frequency | 50/60 Hz |
| Input voltage | 100 - 240 V |
| Power consumption (sleep) | 1.6 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 313 mm |
| Depth | 288 mm |
| Height | 93 mm |
| Weight | 2.58 kg |
| Folded depth | 18.1 cm |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 10 - 32.5 °C |
| Operating relative humidity (H-H) | 20 - 80% |
Other features
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
Energy efficiency
ENERGY STAR certified
Imaging equipment · model 6130240 · certified Nov 21, 2022 · United States, Canada
| Measurement | Value |
|---|---|
| Sleep-mode power | 1.36 W |
| Standby power | 0.04 W |
