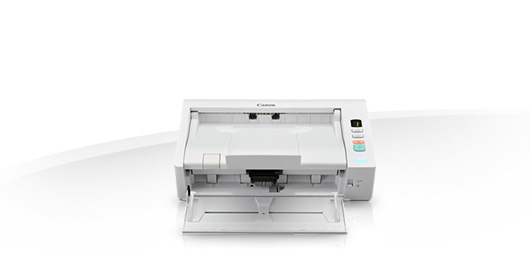

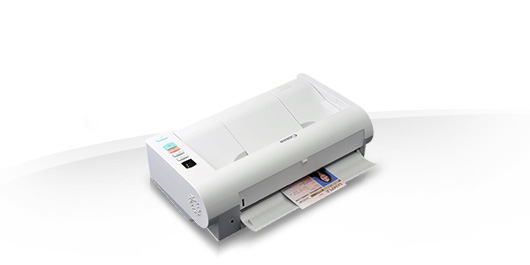

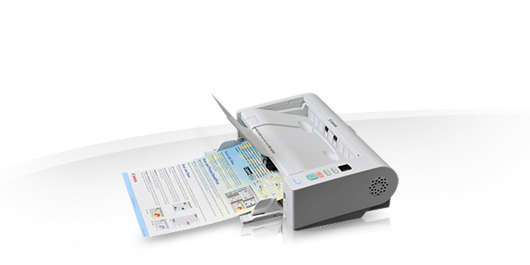

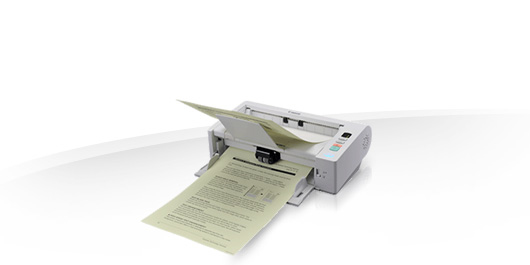

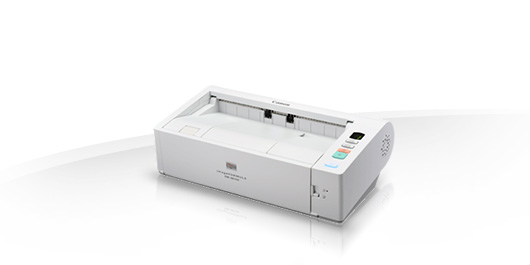

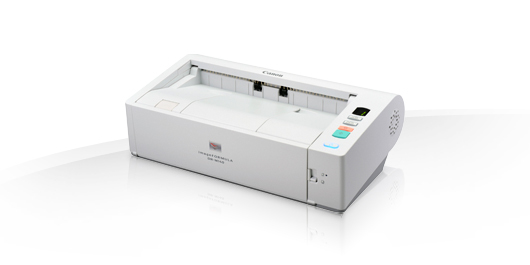

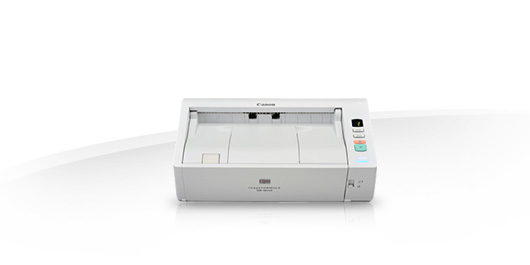

Canon imageFORMULA DR-M140 Sheet-fed scanner
600 x 600 DPI A4 Grey
Model DR-M140Part no. 5482B001EAN 4528472104423
36 specifications
- Weight2.6 kg
- ColourGrey
- Maximum scan size216 x 3000 mm
- Scanner typeSheet-fed scanner
- Sensor typeCMOS CIS
- Auto document feeder (ADF) input capacity50 sheets
Overview
- Weight
- 2.6 kg
- Colour
- Grey
- Maximum scan size
- 216 x 3000 mm
- Scanner type
- Sheet-fed scanner
- Sensor type
- CMOS CIS
- Auto document feeder (ADF) input capacity
- 50 sheets
- Brand
- Canon
- Category
- Scanner
- Model
- DR-M140
- Part numbers
- 5482B001, 5482B003
- EAN / UPC
- 4528472104423, 013803256444, 4053162311473, 4528472104430 +3 more
- Also known as
- Canon imageFORMULA DR-M140 Sheet-fed scanner 600 x 600 DPI A4 Grey
Specifications
36 specifications in 12 groups
Scanning
| Specification | Value |
|---|---|
| Maximum scan size | 216 x 3000 mm |
| Optical scanning resolution | 600 x 600 DPI |
| Colour scanning | Yes |
| Duplex scanning | Yes |
| Input colour depth | 24 bit |
| Output colour depth | 8 bit |
| Greyscale levels | 256 |
Design
| Specification | Value |
|---|---|
| Scanner type | Sheet-fed scanner |
| Built-in display | No |
| Product colour | Grey |
Performance
| Specification | Value |
|---|---|
| Sensor type | CMOS CIS |
| Light source | RGB LED |
| Daily duty cycle (max) | 6000 pages |
Input capacity
| Specification | Value |
|---|---|
| Auto document feeder (ADF) input capacity | 50 sheets |
Paper handling
| Specification | Value |
|---|---|
| Maximum ISO A-series paper size | A4 |
| Scanning media types supported | Card stock |
| ISO A-series sizes (A0...A9) | A4 |
| Auto Document Feeder (ADF) media weight | 80 - 380 g/m² |
Ports & interfaces
| Specification | Value |
|---|---|
| USB port | Yes |
| USB version | 2.0 |
| Standard interfaces | USB 2.0 |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 25 W |
| Power supply type | AC |
| Power consumption (standby) | 1.9 W |
| AC input frequency | 50 - 60 Hz |
| Input voltage | 100-240 V |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 313 mm |
| Depth | 181 mm |
| Height | 93 mm |
| Weight | 2.6 kg |
Sustainability
| Specification | Value |
|---|---|
| Sustainability certificates | ENERGY STAR |
System requirements
| Specification | Value |
|---|---|
| Windows operating systems supported | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 10 - 32.5 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Operating temperature (T-T) | 50 - 90.5 °F |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 84716070 |
