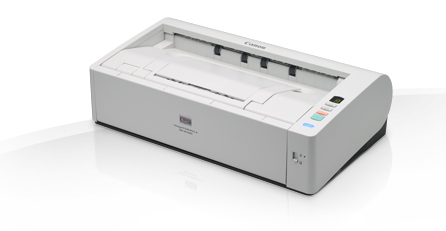

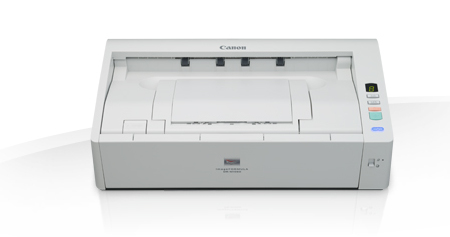

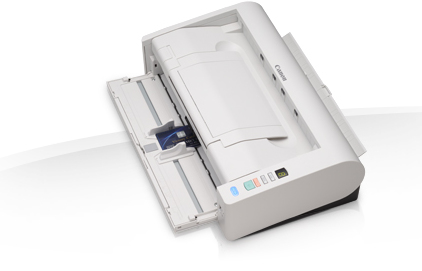

Canon imageFORMULA DR-M1060 Sheet-fed scanner
600 x 600 DPI A3 White
Model DR-M1060Part no. DRM1060EAN 4528472106403
33 specifications
- Weight6.1 kg
- ColourWhite
- Maximum scan size300 x 432 mm
- Scanner typeSheet-fed scanner
- Sensor typeCMOS CIS
- Maximum ISO A-series paper sizeA3
Overview
- Weight
- 6.1 kg
- Colour
- White
- Maximum scan size
- 300 x 432 mm
- Scanner type
- Sheet-fed scanner
- Sensor type
- CMOS CIS
- Maximum ISO A-series paper size
- A3
- Brand
- Canon
- Category
- Scanner
- Model
- DR-M1060
- Part numbers
- DRM1060, 9392B003, 9392B002, 9392B001, 9392B003AF
- EAN / UPC
- 4528472106403, 4053162445727, 4528472106410, 4528472106427 +5 more
- Also known as
- Canon imageFORMULA DR-M1060 Sheet-fed scanner 600 x 600 DPI A3 White
Specifications
33 specifications in 12 groups
Scanning
| Specification | Value |
|---|---|
| Maximum scan size | 300 x 432 mm |
| Optical scanning resolution | 600 x 600 DPI |
| Colour scanning | Yes |
| Duplex scanning | Yes |
| Input colour depth | 24 bit |
| Greyscale levels | 256 |
| ADF scan speed (b/w, A3) | 60 ppm |
| ADF scan speed (colour, A3) | 60 ppm |
| Black/white scanning colour modes | Grayscale |
Design
| Specification | Value |
|---|---|
| Scanner type | Sheet-fed scanner |
| Built-in display | No |
| Product colour | White |
Performance
| Specification | Value |
|---|---|
| Sensor type | CMOS CIS |
| Light source | RGB LED |
| Daily duty cycle (max) | 7500 pages |
| Scan drivers | ISIS, TWAIN |
Paper handling
| Specification | Value |
|---|---|
| Maximum ISO A-series paper size | A3 |
Ports & interfaces
| Specification | Value |
|---|---|
| USB port | Yes |
| USB version | 2.0 |
| Standard interfaces | USB 2.0 |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 32.5 W |
| Power supply type | AC |
| Power consumption (off) | 0.5 W |
| AC input frequency | 50 - 60 Hz |
| Input voltage | 100-240 V |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 6.1 kg |
Sustainability
| Specification | Value |
|---|---|
| Sustainability certificates | ENERGY STAR |
System requirements
| Specification | Value |
|---|---|
| Windows operating systems supported | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 10 - 32.5 °C |
| Operating relative humidity (H-H) | 20 - 85% |
Other features
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 424 x 246 x 120 mm |
| Compliance certificates | RoHS |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 84716070 |
Energy efficiency
ENERGY STAR certified
Imaging equipment · model M111201 · certified Sep 30, 2019 · United States, Canada
| Measurement | Value |
|---|---|
| Sleep-mode power | 2.05 W |
| Standby power | 0.04 W |
