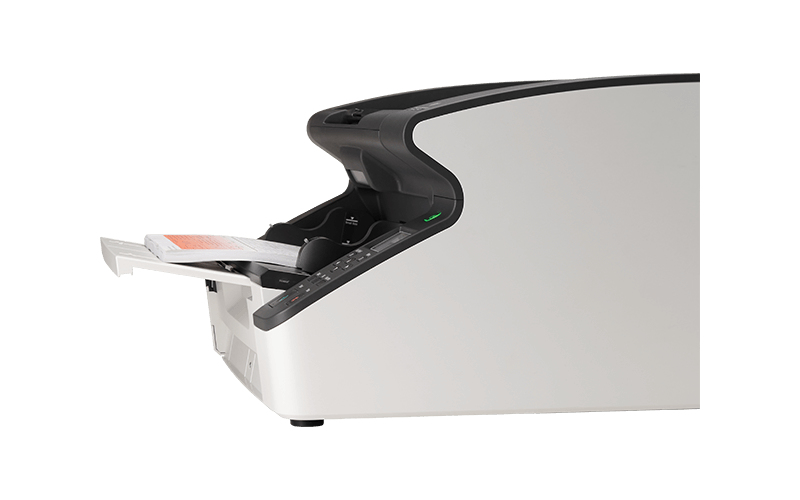

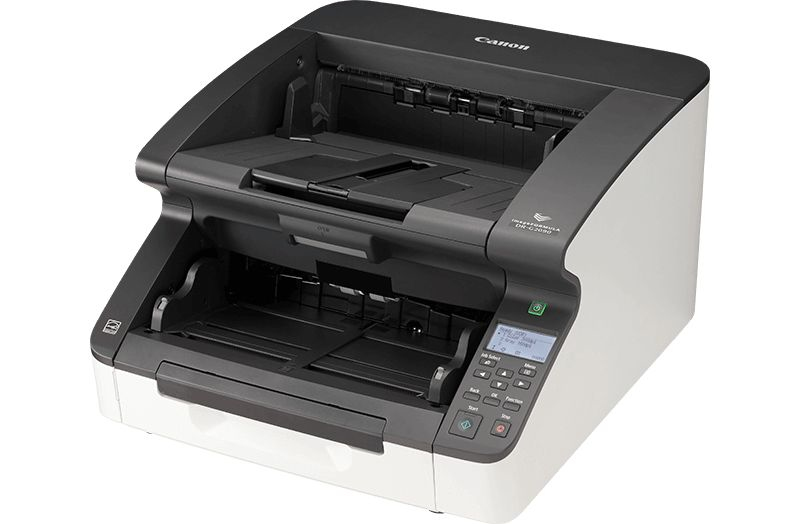

Canon imageFORMULA DR-G2090 A3 Production Document Scanner
Model DR-G2090Part no. 3151C003EAN 013803310146
35 specifications
- Weight25 kg
- ColourBlack, White
- Maximum scan size305 x 432 mm
- Scanner typeSheet-fed scanner
- Sensor typeCIS
- Standard input capacity300 sheets
Overview
- Weight
- 25 kg
- Colour
- Black, White
- Maximum scan size
- 305 x 432 mm
- Scanner type
- Sheet-fed scanner
- Sensor type
- CIS
- Standard input capacity
- 300 sheets
- Brand
- Canon
- Category
- Scanner
- Model
- DR-G2090
- Part numbers
- 3151C003, 3151C002, DRG2090
- EAN / UPC
- 013803310146, 013803310153, 4528472108315
- Also known as
- Canon imageFORMULA DR-G2090 A3 Production Document Scanner
Specifications
35 specifications in 10 groups
Scanning
| Specification | Value |
|---|---|
| Maximum scan size | 305 x 432 mm |
| Optical scanning resolution | 600 x 600 DPI |
| Colour scanning | Yes |
| Duplex scanning | Yes |
| Output colour depth | 24 bit |
| Duplex ADF scan speed (b/w, A4) | 200 ipm |
| Duplex ADF scan speed (colour, A4) | 200 ipm |
Design
| Specification | Value |
|---|---|
| Scanner type | Sheet-fed scanner |
| Built-in display | Yes |
| Product colour | Black, White |
Performance
| Specification | Value |
|---|---|
| Sensor type | CIS |
| Light source | RGB LED |
| Daily duty cycle (max) | 30000 pages |
| Scanner error detection | Yes |
| Scanning noise level | 54 dB |
Input capacity
| Specification | Value |
|---|---|
| Standard input capacity | 300 sheets |
Paper handling
| Specification | Value |
|---|---|
| Maximum ISO A-series paper size | A3 |
| Long-paper mode | Yes |
| Auto Document Feeder (ADF) media weight | 20 - 209 g/m² |
Ports & interfaces
| Specification | Value |
|---|---|
| USB port | Yes |
| USB version | 3.2 Gen 2 (3.1 Gen 2) |
| Standard interfaces | USB 3.2 Gen 1 (3.1 Gen 1) |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 66.5 W |
| Power supply type | AC |
| Power consumption (standby) | 3.5 W |
| AC input frequency | 50 - 60 Hz |
| Input voltage | 220 - 240 V |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 480 mm |
| Depth | 569 mm |
| Height | 315 mm |
| Weight | 25 kg |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 10 - 35 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Operating temperature (T-T) | 50 - 95 °F |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 84716070 |
Energy efficiency
ENERGY STAR certified
Imaging equipment · model 6130040 · certified Oct 3, 2019 · United States, Canada
| Measurement | Value |
|---|---|
| Sleep-mode power | 3.12 W |
| Standby power | 0.16 W |
Compare Canon imageFORMULA DR-G2090 A3 Production Document Scanner
Compare any products- Canon imageFORMULA DR-G2090 A3 Production Document Scanner vsCanon imageFORMULA DR-G2110 A3 High-Speed Production Network ScannerCompare specs
- Canon imageFORMULA DR-G2090 A3 Production Document Scanner vsCanon imageFORMULA DR-G2140 A3 High-Speed Production Network ScannerCompare specs
- Canon imageFORMULA DR-G2090 A3 Production Document Scanner vsCanon T36 MFPCompare specs
- Canon imageFORMULA DR-G2090 A3 Production Document Scanner vsCanon LiDE 400Compare specs

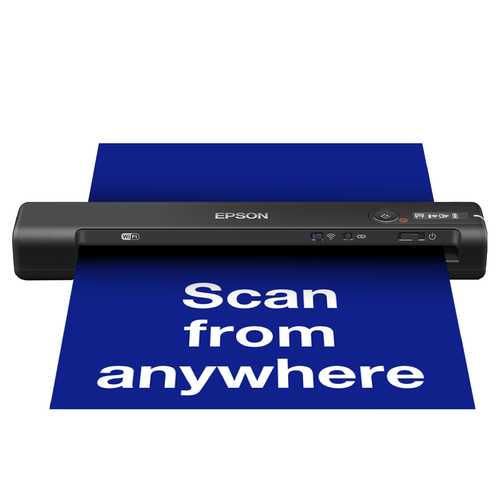

- Canon imageFORMULA DR-G2090 A3 Production Document Scanner vsEpson WorkForce ES-60WCompare specs
- Canon imageFORMULA DR-G2090 A3 Production Document Scanner vsEpson WorkForce DS-80WCompare specs
- Canon imageFORMULA DR-G2090 A3 Production Document Scanner vsEpson WorkForce DS-70Compare specs

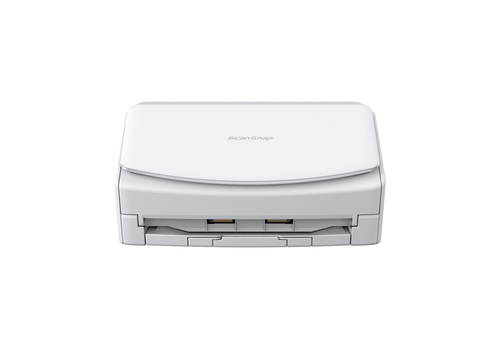

- Canon imageFORMULA DR-G2090 A3 Production Document Scanner vsRicoh ScanSnap iX1500Compare specs
