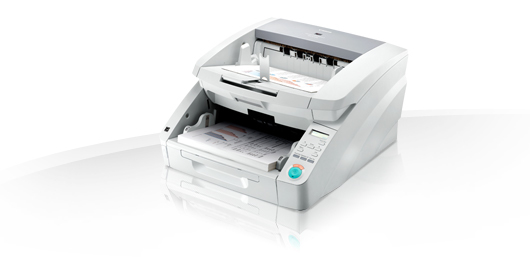

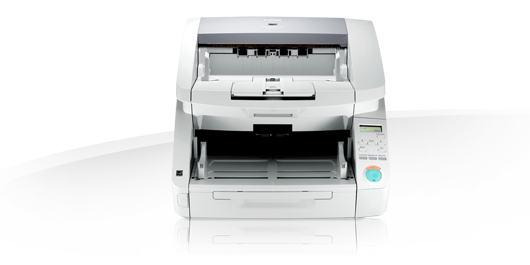

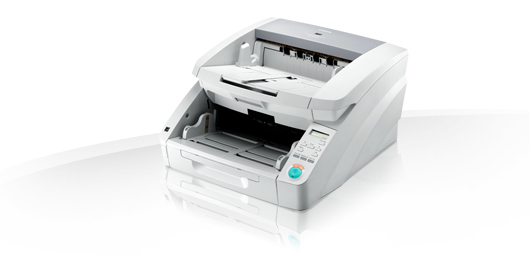

Canon imageFORMULA DR-G1100 ADF scanner
600 x 600 DPI A3 White
Model DR-G1100Part no. 8074B001EAN 4528472105284
39 specifications
- Weight22.8 kg
- ColourWhite
- Maximum scan size305 x 3000 mm
- Scanner typeADF scanner
- Sensor typeCMOS CIS
- Auto document feeder (ADF) input capacity500 sheets
Overview
- Weight
- 22.8 kg
- Colour
- White
- Maximum scan size
- 305 x 3000 mm
- Scanner type
- ADF scanner
- Sensor type
- CMOS CIS
- Auto document feeder (ADF) input capacity
- 500 sheets
- Brand
- Canon
- Category
- Scanner
- Model
- DR-G1100
- Part numbers
- 8074B001, 8074B003, 8074B024
- EAN / UPC
- 4528472105284, 4053162431119, 4528472105291, 5054484244165 +4 more
- Also known as
- Canon imageFORMULA DR-G1100 ADF scanner 600 x 600 DPI A3 White
Specifications
39 specifications in 12 groups
Scanning
| Specification | Value |
|---|---|
| Maximum scan size | 305 x 3000 mm |
| Optical scanning resolution | 600 x 600 DPI |
| Colour scanning | Yes |
| Duplex scanning | Yes |
| Output colour depth | 24 bit |
| Film scanning | No |
| Greyscale levels | 256 |
| ADF scan speed (b/w, A4) | 100 ppm |
| ADF scan speed (colour, A4) | 100 ppm |
| Duplex ADF scan speed (b/w, A4) | 200 ipm |
| Duplex ADF scan speed (colour, A4) | 200 ipm |
Design
| Specification | Value |
|---|---|
| Scanner type | ADF scanner |
| Built-in display | Yes |
| Product colour | White |
| Display | LCD |
Performance
| Specification | Value |
|---|---|
| Sensor type | CMOS CIS |
| Light source | RGB LED |
| Daily duty cycle (max) | 25000 pages |
| Scan drivers | ISIS, TWAIN |
Input capacity
| Specification | Value |
|---|---|
| Auto document feeder (ADF) input capacity | 500 sheets |
Paper handling
| Specification | Value |
|---|---|
| Maximum ISO A-series paper size | A3 |
Ports & interfaces
| Specification | Value |
|---|---|
| USB port | Yes |
| USB version | 2.0 |
| Standard interfaces | USB 2.0 |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 94.3 W |
| Power supply type | AC |
| Power consumption (standby) | 1.7 W |
| Power consumption (off) | 0.3 W |
| AC input frequency | 50 - 60 Hz |
| Input voltage | 220-240 V |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 480 mm |
| Depth | 723 mm |
| Height | 390 mm |
| Weight | 22.8 kg |
Packaging content
| Specification | Value |
|---|---|
| Drivers included | Yes |
| Bundled software | CapturePerfect Kofax VRS |
Sustainability
| Specification | Value |
|---|---|
| Sustainability certificates | ENERGY STAR |
System requirements
| Specification | Value |
|---|---|
| Windows operating systems supported | Yes |
Other features
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
