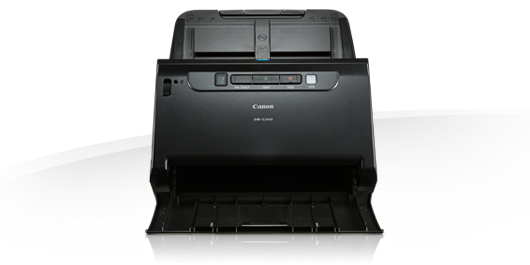

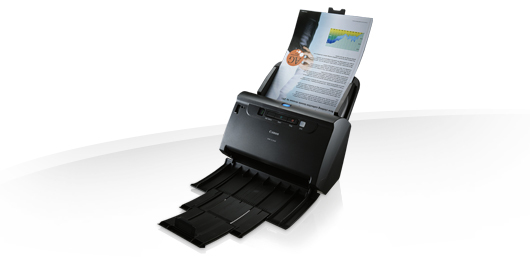

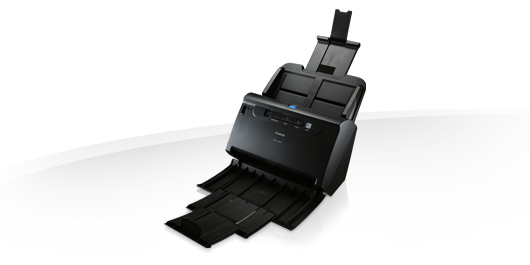

imageFORMULA DR-C240 Duplex Desktop Document Scanner
Model DR-C240Part no. 0651C001EAN 4528472106854
42 specifications
- Weight2.8 kg
- ColourBlack
- Maximum scan size216 x 3000 mm
- Scanner typeSheet-fed scanner
- Sensor typeCMOS CIS
- Maximum ISO A-series paper sizeA4
Overview
- Weight
- 2.8 kg
- Colour
- Black
- Maximum scan size
- 216 x 3000 mm
- Scanner type
- Sheet-fed scanner
- Sensor type
- CMOS CIS
- Maximum ISO A-series paper size
- A4
- Brand
- Canon
- Category
- Scanner
- Model
- DR-C240
- Part numbers
- 0651C001, 0651C003, 0651C002
- EAN / UPC
- 4528472106854, 4528472106861, 4528472106878, 013803258172
- Also known as
- Canon imageFORMULA DR-C240 Duplex Desktop Document Scanner
Specifications
42 specifications in 12 groups
Scanning
| Specification | Value |
|---|---|
| Maximum scan size | 216 x 3000 mm |
| Optical scanning resolution | 600 x 600 DPI |
| Colour scanning | Yes |
| Duplex scanning | Yes |
| Input colour depth | 24 bit |
| Output colour depth | 24 bit |
| Film scanning | No |
| Greyscale levels | 256 |
| ADF scan speed (b/w, A4) | 45 ppm |
| ADF scan speed (colour, A4) | 30 ppm |
| Duplex ADF scan speed (b/w, A4) | 90 ipm |
| Duplex ADF scan speed (colour, A4) | 60 ipm |
| Black/white scanning colour modes | Grayscale |
Design
| Specification | Value |
|---|---|
| Scanner type | Sheet-fed scanner |
| Built-in display | No |
| Product colour | Black |
Performance
| Specification | Value |
|---|---|
| Sensor type | CMOS CIS |
| Light source | RGB LED |
| Daily duty cycle (max) | 4000 pages |
| Scan drivers | ISIS, TWAIN |
Paper handling
| Specification | Value |
|---|---|
| Maximum ISO A-series paper size | A4 |
| Scanning media types supported | Business Card, Plastic Card |
Ports & interfaces
| Specification | Value |
|---|---|
| USB port | Yes |
| USB version | 2.0 |
| Standard interfaces | USB 2.0 |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 19 W |
| Power supply type | AC |
| Power consumption (standby) | 1.4 W |
| Power consumption (off) | 0.1 W |
| AC input frequency | 50 - 60 Hz |
| Input voltage | 100-240 V |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 291 mm |
| Depth | 253 mm |
| Height | 231 mm |
| Weight | 2.8 kg |
Sustainability
| Specification | Value |
|---|---|
| Sustainability certificates | ENERGY STAR |
System requirements
| Specification | Value |
|---|---|
| Server operating systems supported | Windows Server 2008 R2, Windows Server 2008 R2 x64, Windows Server 2012 R2, Windows Server 2012 R2 x64 |
| Windows operating systems supported | Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterp |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 10 - 32.5 °C |
| Operating relative humidity (H-H) | 20 - 80% |
Other features
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 84716070 |
Energy efficiency
ENERGY STAR certified
Imaging equipment · model M111251 · certified Sep 30, 2019 · United States, Canada
| Measurement | Value |
|---|---|
| Sleep-mode power | 1.24 W |
| Standby power | 0.04 W |
