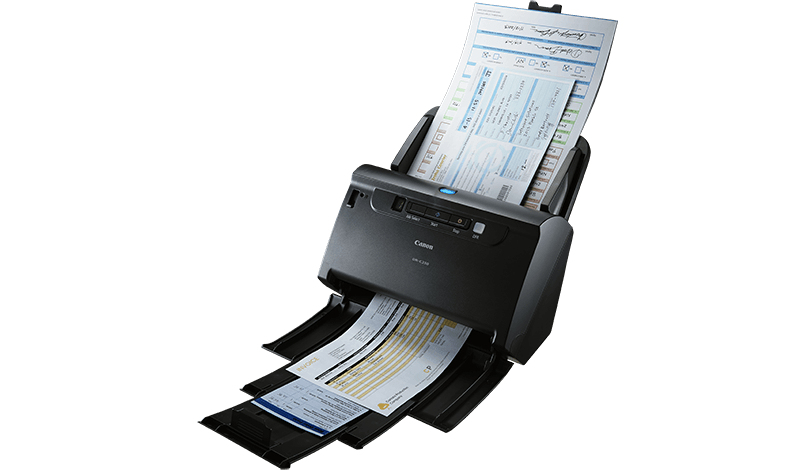

Canon imageFORMULA DR-C230 Duplex Desktop Document Scanner
Model DR-C230Part no. 2646C003EAN 4058154223550
49 specifications
- Weight2.8 kg
- ColourBlack
- Maximum scan size216 x 3000 mm
- Scanner typeSheet-fed scanner
- Sensor typeCMOS CIS
- Standard input capacity60 sheets
Overview
- Weight
- 2.8 kg
- Colour
- Black
- Maximum scan size
- 216 x 3000 mm
- Scanner type
- Sheet-fed scanner
- Sensor type
- CMOS CIS
- Standard input capacity
- 60 sheets
- Brand
- Canon
- Category
- Scanner
- Model
- DR-C230
- Part numbers
- 2646C003, 2646C002
- EAN / UPC
- 4058154223550, 4528472107882, 013803300710
- Also known as
- Canon imageFORMULA DR-C230 Duplex Desktop Document Scanner
Specifications
49 specifications in 14 groups
Scanning
| Specification | Value |
|---|---|
| Maximum scan size | 216 x 3000 mm |
| Optical scanning resolution | 600 x 600 DPI |
| Colour scanning | Yes |
| Duplex scanning | Yes |
| Output colour depth | 24 bit |
| Output greyscale depth | 8 bit |
| Greyscale levels | 256 |
| ADF scan speed (b/w, A4) | 30 ppm |
| ADF scan speed (colour, A4) | 30 ppm |
| Duplex ADF scan speed (b/w, A4) | 60 ipm |
| Duplex ADF scan speed (colour, A4) | 60 ipm |
Design
| Specification | Value |
|---|---|
| Scanner type | Sheet-fed scanner |
| Built-in display | No |
| Product colour | Black |
Performance
| Specification | Value |
|---|---|
| Sensor type | CMOS CIS |
| Light source | RGB LED |
| Daily duty cycle (max) | 3500 pages |
| Scan drivers | ISIS, TWAIN |
Input capacity
| Specification | Value |
|---|---|
| Standard input capacity | 60 sheets |
Paper handling
| Specification | Value |
|---|---|
| Maximum ISO A-series paper size | A4 |
| Scanning media types supported | Business Card, Plastic Card |
| Multi feed detection | Yes |
| Media thickness (min) | 0.06 mm |
| Maximum scan width | 21.6 cm |
| Maximum scan length | 3 m |
Ports & interfaces
| Specification | Value |
|---|---|
| USB port | Yes |
| USB version | 2.0 |
| Standard interfaces | USB 2.0 |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 19 W |
| Power supply type | AC |
| Power consumption (standby) | 1.4 W |
| Power consumption (off) | 0.1 W |
| AC input frequency | 50 - 60 Hz |
| Input voltage | 100-240 V |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 291 mm |
| Depth | 253 mm |
| Height | 231 mm |
| Weight | 2.8 kg |
Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
| Cables included | AC, USB |
Sustainability
| Specification | Value |
|---|---|
| Sustainability certificates | ENERGY STAR |
System requirements
| Specification | Value |
|---|---|
| Mac operating systems supported | Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra |
| Server operating systems supported | Windows Server 2008 R2, Windows Server 2012 R2, Windows Server 2016 |
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 10 - 32.5 °C |
| Operating relative humidity (H-H) | 20 - 80% |
Other features
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
| Scan media weight | 27 - 209 g/m² |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 84716070 |
Energy efficiency
ENERGY STAR certified
Imaging equipment · model 6130010 · certified Sep 30, 2019 · United States, Canada
| Measurement | Value |
|---|---|
| Sleep-mode power | 1.24 W |
| Standby power | 0.04 W |
What people say
Reviews & ratings
Canon imageFORMULA DR-C230 Duplex Desktop Document Scanner
No reviews yet
Be the first to tell others how Canon imageFORMULA DR-C230 Duplex Desktop Document Scanner works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare Canon imageFORMULA DR-C230 Duplex Desktop Document Scanner
All scanner comparisons- Canon imageFORMULA DR-C230 Duplex Desktop Document Scanner vsCanon T36 1200 x 1200 DPI A0 BlackCompare specs

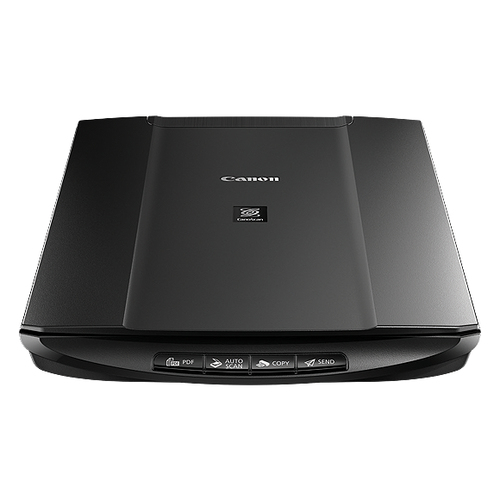

- Canon imageFORMULA DR-C230 Duplex Desktop Document Scanner vsCanon CanoScan LiDE120 Flatbed scannerCompare specs
