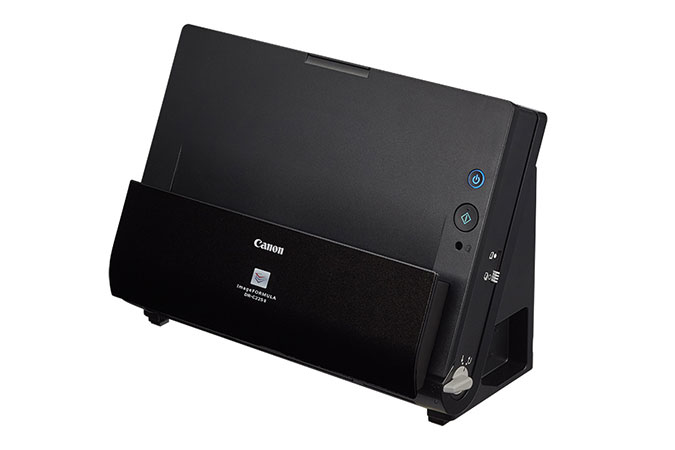

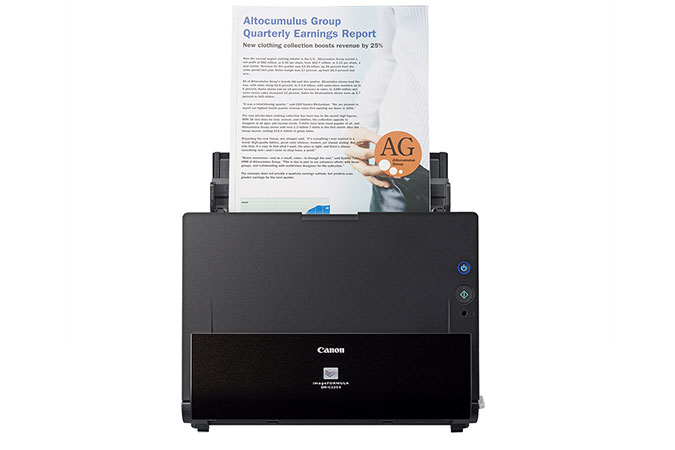

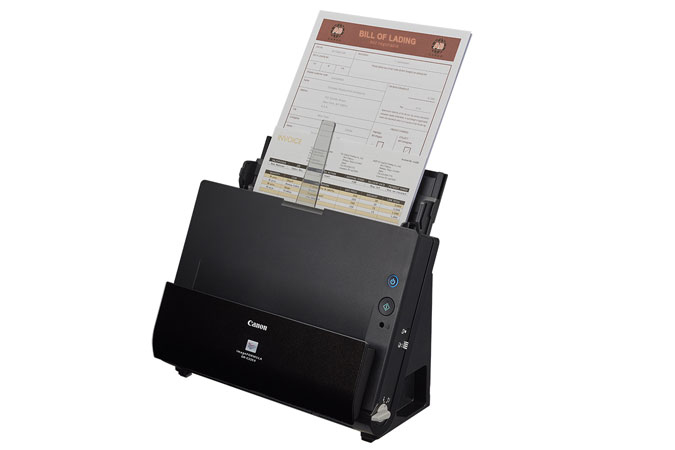

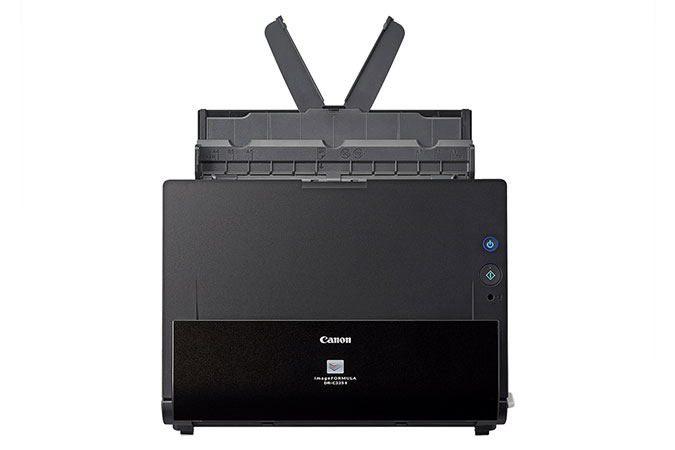

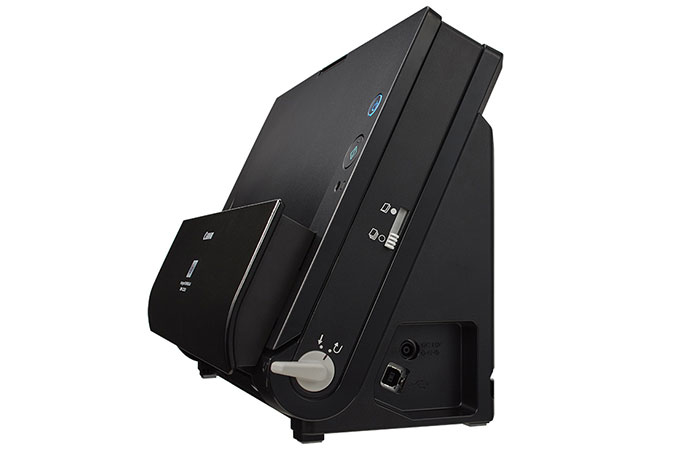

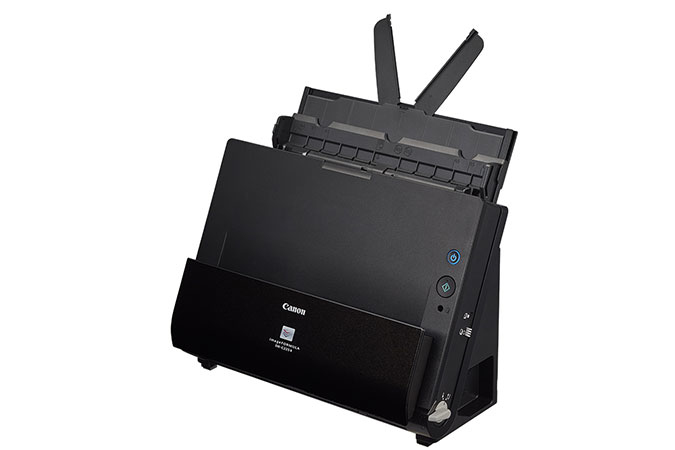

DR-C225 II
Model DR-C225 IIPart no. 3258C003EAN 5715328390539
42 specifications
- Weight2.7 kg
- ColourBlack
- Maximum scan size216 x 356 mm
- Scanner typeADF + Manual feed scanner
- Sensor typeCMOS
- Standard input capacity30 sheets
Overview
- Weight
- 2.7 kg
- Colour
- Black
- Maximum scan size
- 216 x 356 mm
- Scanner type
- ADF + Manual feed scanner
- Sensor type
- CMOS
- Standard input capacity
- 30 sheets
- Brand
- Canon
- Category
- Scanner
- Model
- DR-C225 II
- Part numbers
- 3258C003, 3258C002
- EAN / UPC
- 5715328390539, 013803248753, 013803310214, 4528472108384 +1 more
- Also known as
- Canon imageFORMULA DR-C225 II ADF + Manual feed scanner 600 x 600 DPI A3 Black
Specifications
42 specifications in 10 groups
Scanning
| Specification | Value |
|---|---|
| Maximum scan size | 216 x 356 mm |
| Optical scanning resolution | 600 x 600 DPI |
| Colour scanning | Yes |
| Duplex scanning | Yes |
| Output colour depth | 24 bit |
| Output greyscale depth | 8 bit |
| ADF scan speed (b/w, A4) | 25 ppm |
| ADF scan speed (greyscale, A4) | 25 ppm |
| ADF scan speed (colour, A4) | 25 ppm |
| Duplex ADF scan speed (b/w, A4) | 50 ipm |
| Duplex ADF scan speed (colour, A4) | 50 ipm |
| Black/white scanning colour modes | Grayscale |
Design
| Specification | Value |
|---|---|
| Scanner type | ADF + Manual feed scanner |
| Built-in display | No |
| Product colour | Black |
Performance
| Specification | Value |
|---|---|
| Sensor type | CMOS |
| Light source | RGB LED |
| Daily duty cycle (max) | 1500 pages |
| Scan drivers | ISIS, TWAIN |
| Ultrasonic double sheet detection | Yes |
Input capacity
| Specification | Value |
|---|---|
| Standard input capacity | 30 sheets |
Paper handling
| Specification | Value |
|---|---|
| Maximum ISO A-series paper size | A3 |
| Long-paper mode | Yes |
| Legal | Yes |
| Auto Document Feeder (ADF) media weight | 41 - 218 g/m² |
| Maximum scan width | 21.6 cm |
| Maximum scan length | 35.6 cm |
Ports & interfaces
| Specification | Value |
|---|---|
| USB port | Yes |
| USB version | 2.0 |
| Standard interfaces | USB 2.0 |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 12.7 W |
| Power supply type | AC |
| Power consumption (PowerSave) | 1.7 W |
| Input voltage | 120 V |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 300 mm |
| Depth | 156 mm |
| Height | 220 mm |
| Weight | 2.7 kg |
Packaging content
| Specification | Value |
|---|---|
| Bundled software | Canon CaptureOnTouch |
System requirements
| Specification | Value |
|---|---|
| Mac operating systems supported | Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra |
| Server operating systems supported | Windows Server 2008, Windows Server 2012 R2 |
| Windows operating systems supported | Windows 10, Windows 7, Windows 8, Windows 8.1 |
Energy efficiency
ENERGY STAR certified
Imaging equipment · model 6130050 · certified Sep 30, 2019 · United States, Canada
| Measurement | Value |
|---|---|
| Sleep-mode power | 1.55 W |
| Standby power | 0.03 W |
