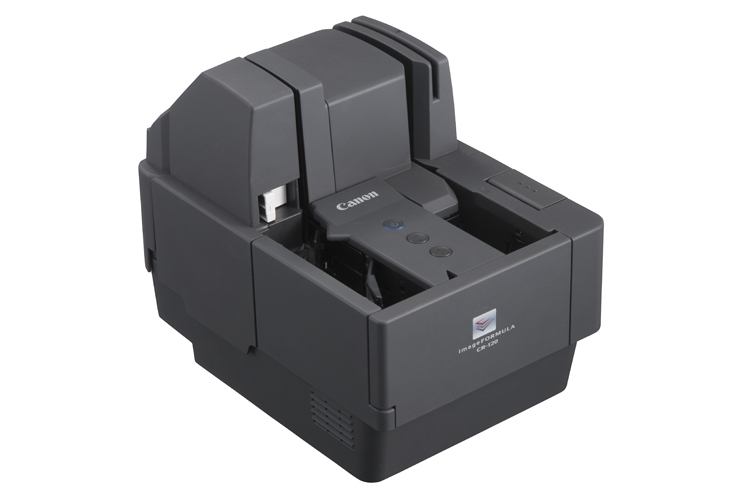

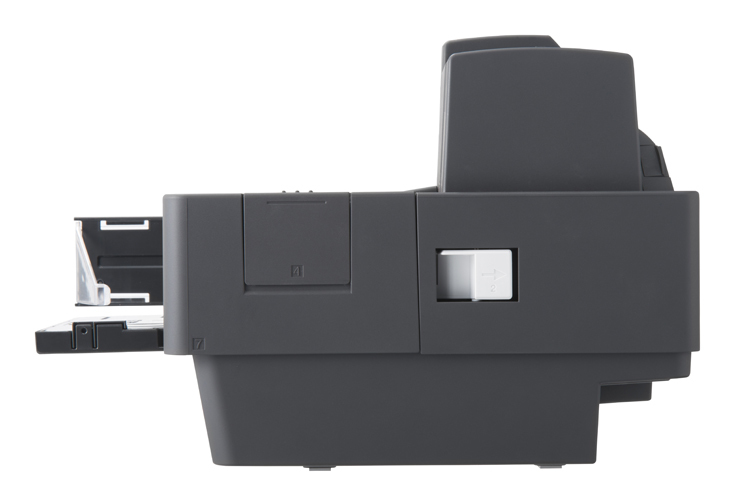

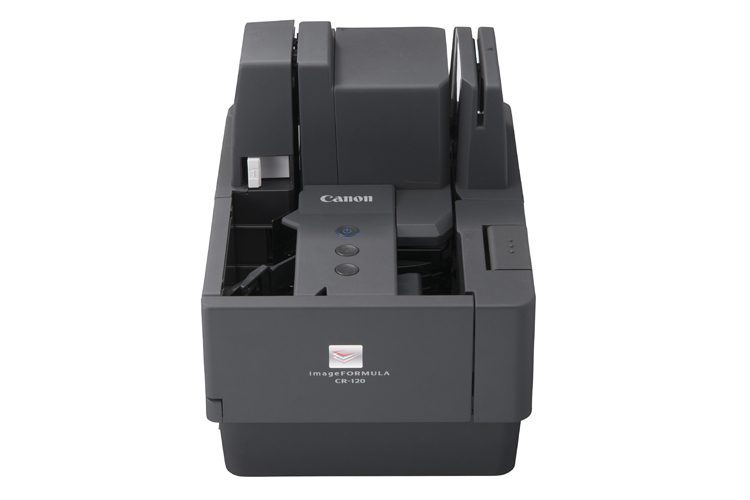

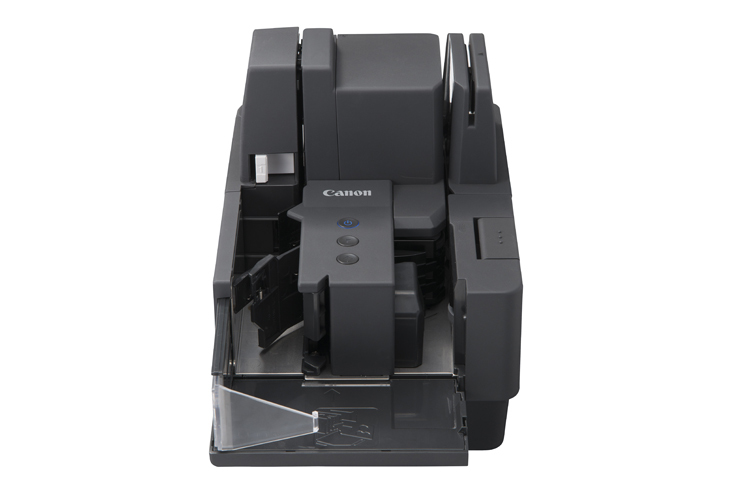

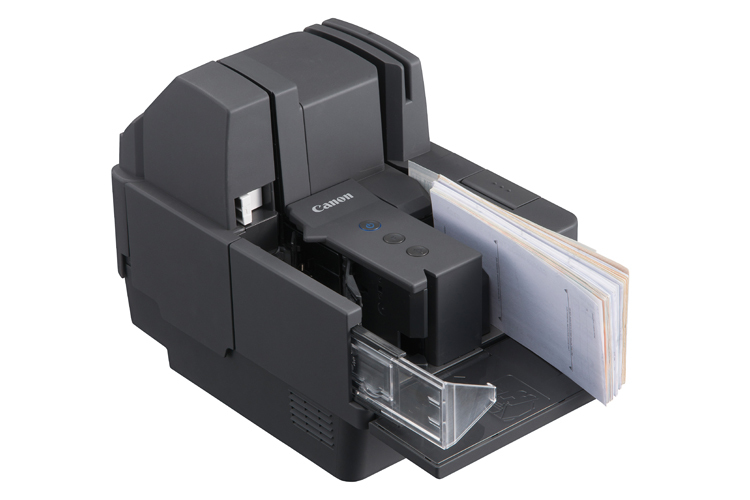

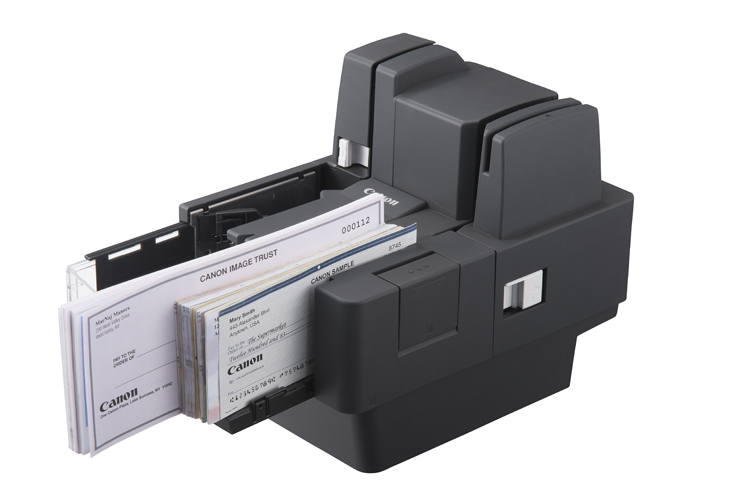

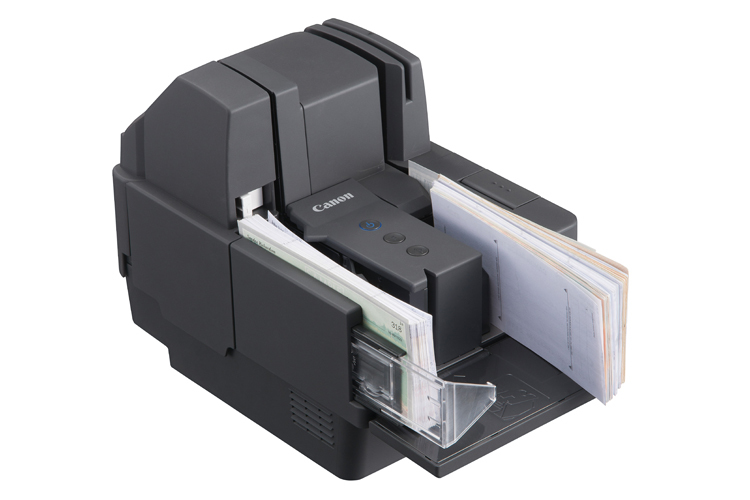

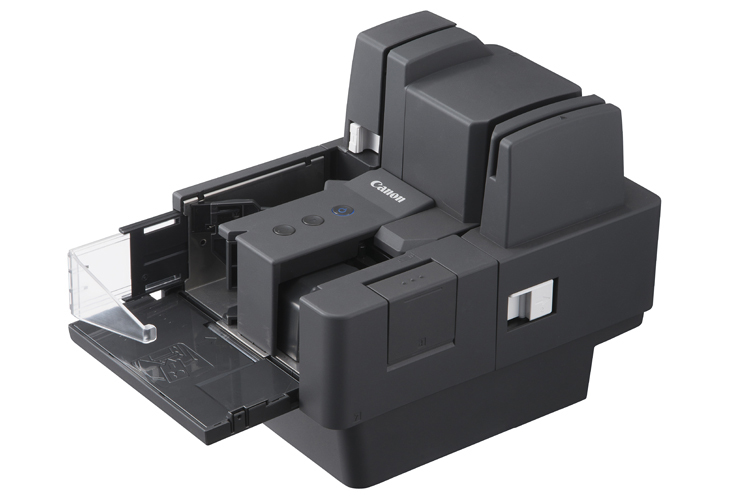

Canon imageFORMULA CR-120 Specs

Overview

Weight: 3.5 kg
Colour: Black
Maximum scan size: 108 x 245 mm
Built-in display: No
Sensor type: CMOS CIS
Auto document feeder (ADF) input capacity: 150 sheets

Brand: Canon
Category: Scanner
Model: CR-120
Part numbers: 1722C002, 1722C001
EAN / UPC: 4528472107455, 4528472110356, 013803290691
Also known as: Canon imageFORMULA CR-120 600 x 600 DPI Black

Specifications

43 specifications in 13 groups

Scanning

Specification	Value
Maximum scan size	108 x 245 mm
Optical scanning resolution	600 x 600 DPI
Colour scanning	Yes
Duplex scanning	Yes
Input colour depth	24 bit
Input greyscale depth	16 bit
Output greyscale depth	16 bit
Greyscale levels	256
ADF scan speed (b/w, A4)	120 ppm

Design

Specification	Value
Built-in display	No
Product colour	Black

Performance

Specification	Value
Sensor type	CMOS CIS
Light source	RGB LED
Daily duty cycle (max)	12000 pages

Input capacity

Specification	Value
Auto document feeder (ADF) input capacity	150 sheets

Paper handling

Specification	Value
ID-card slot	Yes
Card thickness (max)	0.2 mm
Auto Document Feeder (ADF) media weight	64 - 167 g/m²

Ports & interfaces

Specification	Value
USB port	Yes
USB version	2.0
USB connector type	USB Type-A

Power

Specification	Value
Power consumption (typical)	23 W
Power supply type	AC
AC input frequency	50 - 60 Hz
Sleep mode	Yes
Input voltage	220 - 240 V
Power consumption (sleep)	2.1 W

Weight & dimensions

Specification	Value
Width	170 mm
Depth	239 mm
Height	204 mm
Weight	3.5 kg

Packaging data

Specification	Value
Quantity per pack	1 pc(s)

Packaging content

Specification	Value
Manual	Yes
Software CD	Yes
AC adapter included	Yes
Cables included	USB
Packaging content	CR-120 series cheque scanner USB cable AC adapter Power cable Card guard Setup disc Setup guide

System requirements

Specification	Value
Server operating systems supported	Windows Server 2008, Windows Server 2008 R2, Windows Server 2008 R2 x64, Windows Server 2008 x64, Windows Server 2012, Windows Server 2012 R2, Windows Server 2012 R2 x64, Windows Server 2012 x64
USB required	Yes
Windows operating systems supported	Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterpris

Operational conditions

Specification	Value
Operating temperature (T-T)	10 - 32.5 °C
Operating relative humidity (H-H)	20 - 80%

Logistics data

Specification	Value
Harmonized System (HS) code	84716070

Energy efficiency

ENERGY STAR certified

Imaging equipment · model M112060 · certified Sep 25, 2019 · United States, Canada

Measurement	Value
Sleep-mode power	2.3 W
Standby power	0.07 W
