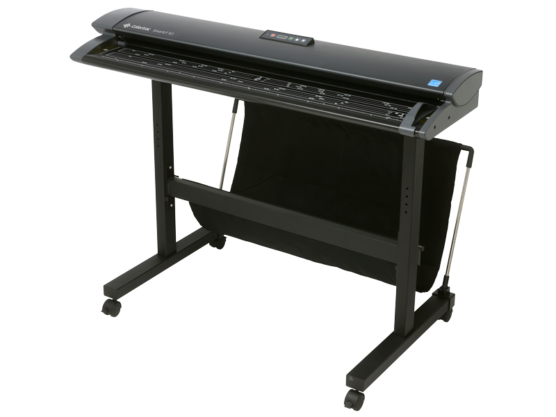

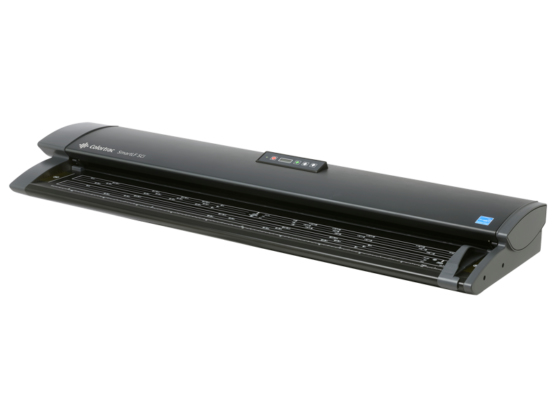

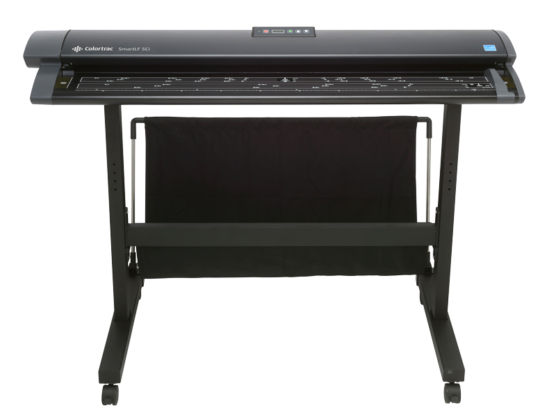

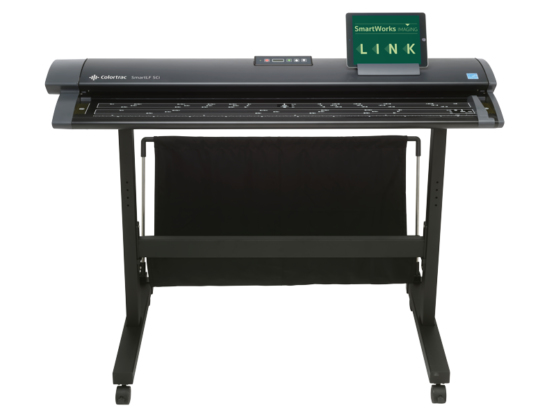

Colortrac SmartLF SCi 42m
Model Colortrac SmartLF SCi 42mPart no. 3858V724EAN 8714574667751
39 specifications
- Weight26.5 kg
- ColourBlack, Grey
- Enhanced scan resolution9600 x 9600 DPI
- Scanner typeSheet-fed scanner
- Sensor typeSingleSensor
- Maximum ISO A-series paper sizeA0
Overview
- Weight
- 26.5 kg
- Colour
- Black, Grey
- Enhanced scan resolution
- 9600 x 9600 DPI
- Scanner type
- Sheet-fed scanner
- Sensor type
- SingleSensor
- Maximum ISO A-series paper size
- A0
- Brand
- Canon
- Category
- Scanner
- Model
- Colortrac SmartLF SCi 42m
- Part number
- 3858V724
- EAN / UPC
- 8714574667751
- Also known as
- Canon Colortrac SmartLF SCi 42m Sheet-fed scanner 1200 x 1200 DPI A0 Black, Grey
Specifications
39 specifications in 13 groups
Scanning
| Specification | Value |
|---|---|
| Enhanced scan resolution | 9600 x 9600 DPI |
| Optical scanning resolution | 1200 x 1200 DPI |
| Colour scanning | No |
| Duplex scanning | Yes |
| Input colour depth | 48 bit |
| Input greyscale depth | 16 bit |
| Film scanning | No |
Design
| Specification | Value |
|---|---|
| Scanner type | Sheet-fed scanner |
| Built-in display | No |
| Product colour | Black, Grey |
Performance
| Specification | Value |
|---|---|
| Sensor type | SingleSensor |
| Scan file formats | BMP, JPEG, JPG, PDF, PNG |
Paper handling
| Specification | Value |
|---|---|
| Maximum ISO A-series paper size | A0 |
| ISO A-series sizes (A0...A9) | A0, A1, A2, A3, A4 |
| Media thickness (min) | 2 mm |
| Maximum scan width | 106.7 cm |
Ports & interfaces
| Specification | Value |
|---|---|
| USB port | Yes |
| USB version | 2.0/3.2 Gen 1 (3.1 Gen 1) |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 53 W |
| Power supply type | AC |
| Power consumption (off) | 1.35 W |
| AC input frequency | 50 - 60 Hz |
| Input voltage | 100 - 240 V |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 1300 mm |
| Depth | 152 mm |
| Height | 381 mm |
| Weight | 26.5 kg |
Packaging data
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
| Package width | 1440 mm |
| Package depth | 240 mm |
| Package height | 520 mm |
| Package weight | 31 kg |
Packaging content
| Specification | Value |
|---|---|
| Bundled software | SmartWorks Touch, SmartConnect (drivers, TWAIN, maintenance) |
System requirements
| Specification | Value |
|---|---|
| Server operating systems supported | Windows Server 2019 |
| Windows operating systems supported | Windows 10, Windows 8.1 |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 10 - 35 °C |
| Operating relative humidity (H-H) | 35 - 80% |
Other features
| Specification | Value |
|---|---|
| Certification | CE, cUL/UL, CCC, EAC, BIS, FCC Class A, ICES, EMC, VCCI, KC, EuP, WEEE, RoHS, REACH |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 84716070 |
