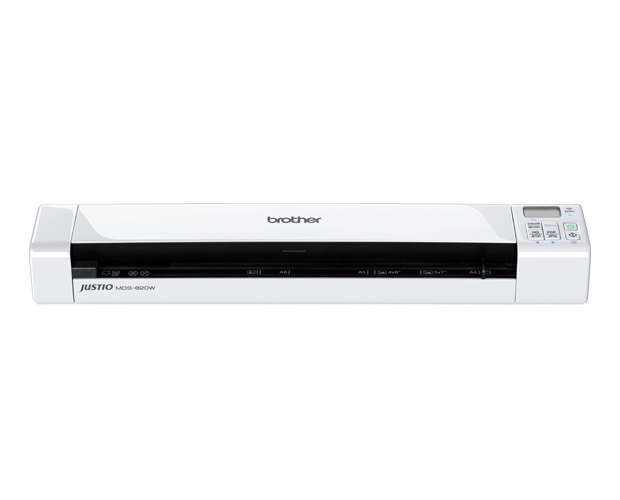

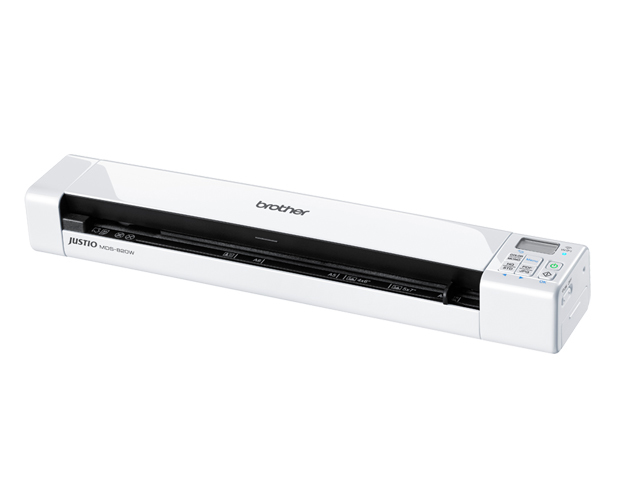

Brother MDS-820W scanner Handheld scanner
600 x 600 DPI A4 White
Model MDS-820WEAN 4977766739733
45 specifications
- Display3.05 cm (1.2")
- Weight480 g
- ColourWhite
- Maximum scan size215.9 x 812.8 mm
- Scanner typeHandheld scanner
- Sensor typeCIS
Overview
- Display
- 3.05 cm (1.2")
- Weight
- 480 g
- Colour
- White
- Maximum scan size
- 215.9 x 812.8 mm
- Scanner type
- Handheld scanner
- Sensor type
- CIS
- Brand
- Brother
- Category
- Scanner
- Model
- MDS-820W
- Part number
- MDS-820W
- EAN / UPC
- 4977766739733
- Also known as
- Brother MDS-820W scanner Handheld scanner 600 x 600 DPI A4 White
Specifications
45 specifications in 12 groups
Scanning
| Specification | Value |
|---|---|
| Maximum scan size | 215.9 x 812.8 mm |
| Enhanced scan resolution | 1200 x 1200 DPI |
| Optical scanning resolution | 600 x 600 DPI |
| Colour scanning | Yes |
| Duplex scanning | No |
| Input colour depth | 48 bit |
| Output colour depth | 24 bit |
| Film scanning | No |
| Greyscale levels | 256 |
| Black/white scanning colour modes | Grayscale, Monochrome |
Design
| Specification | Value |
|---|---|
| Scanner type | Handheld scanner |
| Built-in display | Yes |
| Product colour | White |
| Display | LCD |
| Display diagonal | 3.05 cm (1.2") |
Performance
| Specification | Value |
|---|---|
| Sensor type | CIS |
| Scan drivers | TWAIN |
| Compatible memory cards | SD |
Paper handling
| Specification | Value |
|---|---|
| Maximum ISO A-series paper size | A4 |
| Scanning media types supported | Business Card, Plain paper, Plastic Card, Post Card(JPN), Recycled paper |
| Maximum scan width | 21.6 cm |
| Maximum scan length | 81.3 cm |
Ports & interfaces
| Specification | Value |
|---|---|
| USB port | Yes |
| USB version | 2.0 |
| Standard interfaces | USB 2.0, Wireless LAN |
Network
| Specification | Value |
|---|---|
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
Power
| Specification | Value |
|---|---|
| Power supply type | Battery |
| Battery voltage | 5 V |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 308 mm |
| Depth | 52.5 mm |
| Height | 40.7 mm |
| Weight | 480 g |
Packaging content
| Specification | Value |
|---|---|
| Cables included | Micro-USB |
| Calibration sheet included | Yes |
| Cleaning cloth | Yes |
| Memory card included | SD |
| Quick start guide | Yes |
| Storage pouch | Yes |
| Drivers included | Yes |
Battery
| Specification | Value |
|---|---|
| Battery technology | Lithium-Ion (Li-Ion) |
System requirements
| Specification | Value |
|---|---|
| Mac operating systems supported | Yes |
| Windows operating systems supported | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 5 - 35 °C |
| Operating relative humidity (H-H) | 15 - 85% |
