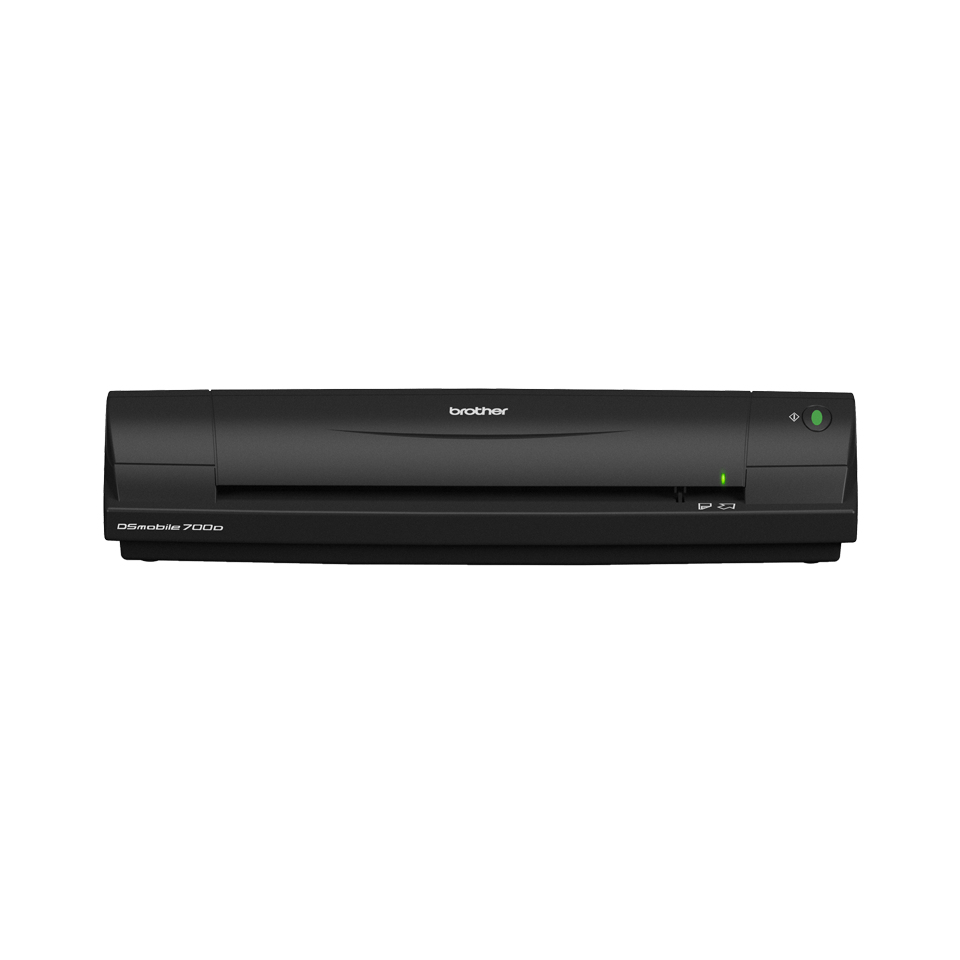

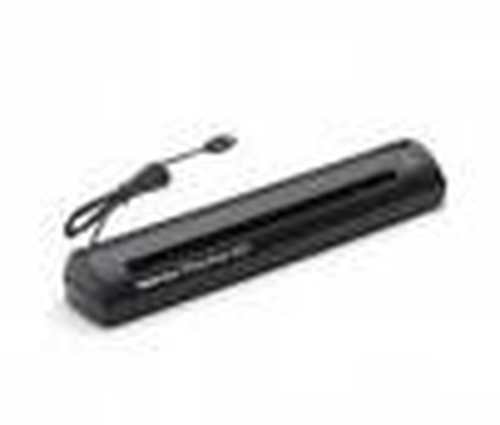

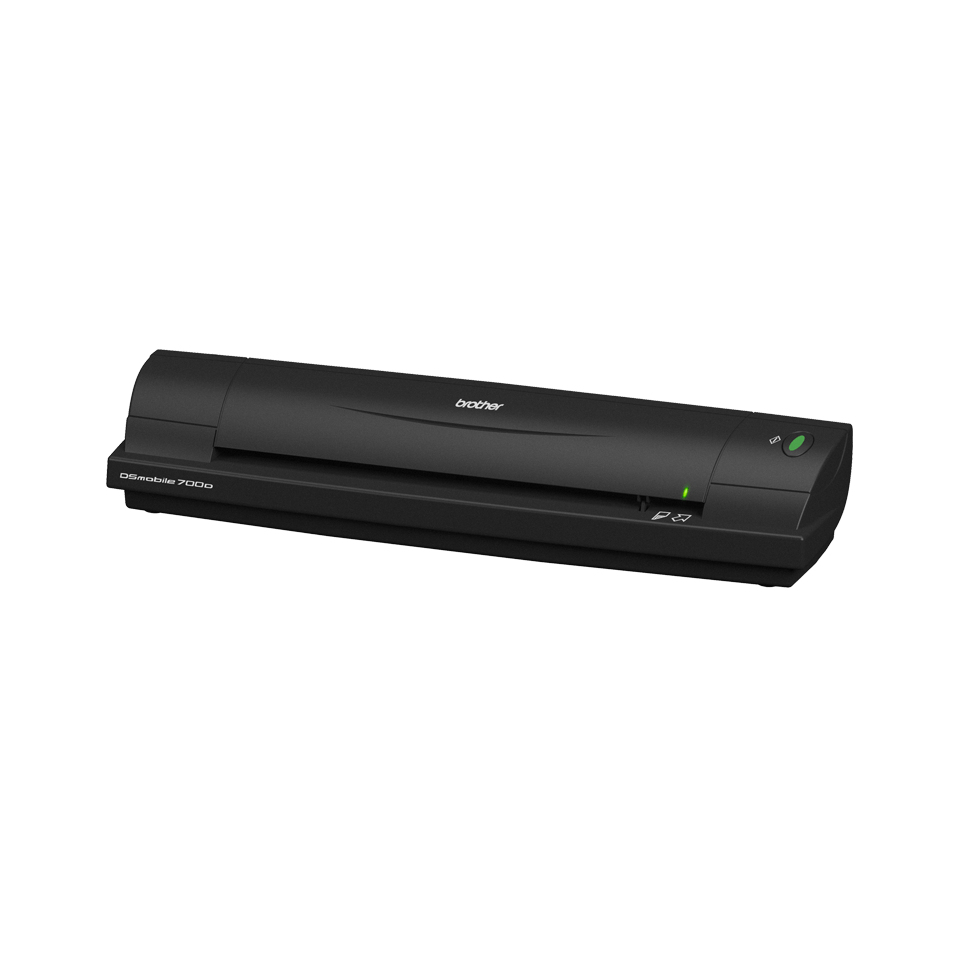

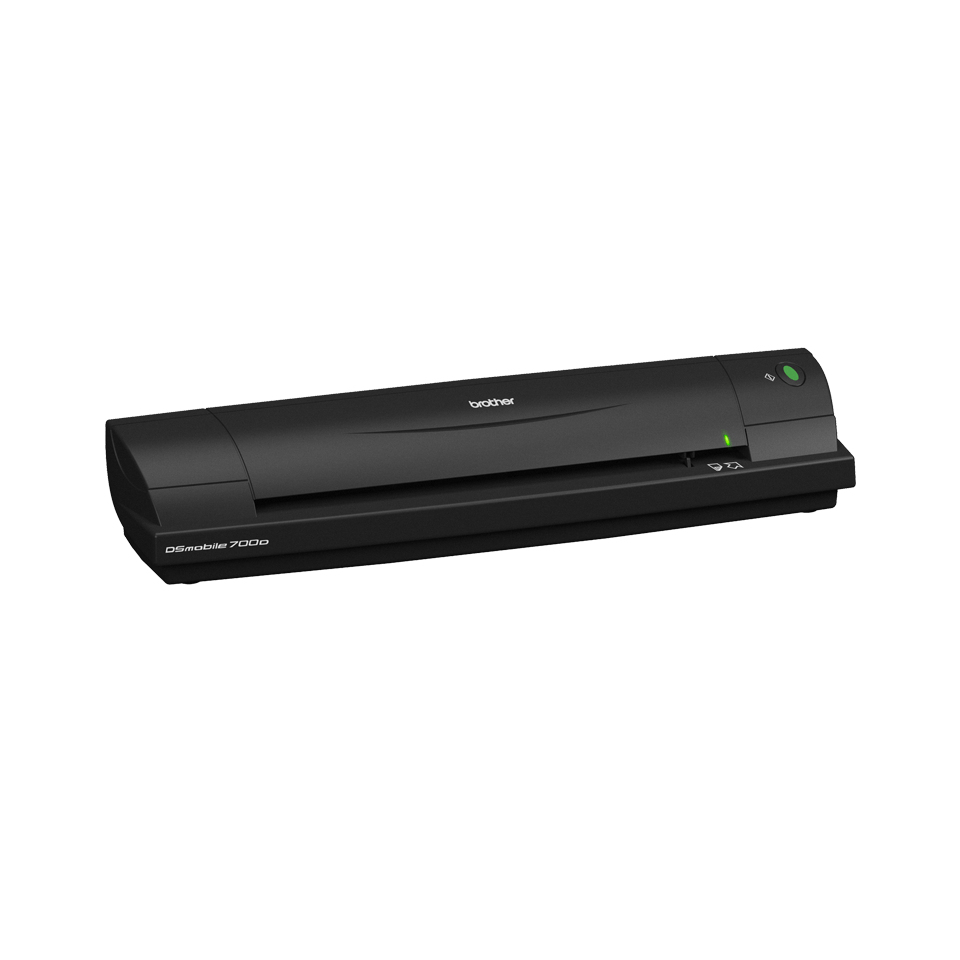

Brother DSmobile 700D
Model DSmobile 700DPart no. DS-700DEAN 9052015032256
53 specifications
- Weight603 g
- ColourBlack
- Maximum scan size216 x 356 mm
- Scanner typeSheet-fed scanner
- Sensor typeCMOS CIS
- Standard input capacity1 sheets
Overview
- Weight
- 603 g
- Colour
- Black
- Maximum scan size
- 216 x 356 mm
- Scanner type
- Sheet-fed scanner
- Sensor type
- CMOS CIS
- Standard input capacity
- 1 sheets
- Brand
- Brother
- Category
- Scanner
- Model
- DSmobile 700D
- Part number
- DS-700D
- EAN / UPC
- 9052015032256, 012502630999, 080050391501, 100177320960 +6 more
- Also known as
- Brother DSmobile 700D Sheet-fed scanner 600 x 600 DPI A4 Black
Specifications
53 specifications in 13 groups
Scanning
| Specification | Value |
|---|---|
| Maximum scan size | 216 x 356 mm |
| Optical scanning resolution | 600 x 600 DPI |
| Colour scanning | Yes |
| Duplex scanning | Yes |
| Input colour depth | 24 bit |
| Output colour depth | 24 bit |
| Film scanning | No |
| Greyscale levels | 256 |
| ADF scan speed (b/w, A4) | 10 ppm |
| ADF scan speed (colour, A4) | 3 ppm |
| Duplex ADF scan speed (b/w, A4) | 5 ipm |
| Duplex ADF scan speed (colour, A4) | 1.5 ipm |
Design
| Specification | Value |
|---|---|
| Scanner type | Sheet-fed scanner |
| Product colour | Black |
Performance
| Specification | Value |
|---|---|
| Sensor type | CMOS CIS |
| Scan file formats | JPG, PDF, TIFF |
| Scan drivers | ICA, TWAIN, WIA |
| Scanning noise level | 71 dB |
Input capacity
| Specification | Value |
|---|---|
| Standard input capacity | 1 sheets |
Paper handling
| Specification | Value |
|---|---|
| Maximum ISO A-series paper size | A4 |
| Scanning media types supported | Plain paper |
| ISO A-series sizes (A0...A9) | A4, A5, A6 |
| Legal | Yes |
| Letter | Yes |
| Auto Document Feeder (ADF) media weight | 65 - 120 g/m² |
Ports & interfaces
| Specification | Value |
|---|---|
| USB port | Yes |
| USB version | 2.0 |
| Standard interfaces | USB 2.0 |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 2.3 W |
| Power supply type | USB |
| Power consumption (standby) | 0.65 W |
| Power consumption (off) | 0.01 W |
| Input voltage | 5 V |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 319 mm |
| Depth | 76 mm |
| Height | 54 mm |
| Weight | 603 g |
Packaging data
| Specification | Value |
|---|---|
| Package dimensions (WxDxH) | 374 x 233 x 119 mm |
| Package width | 374 mm |
| Package depth | 233 mm |
| Package height | 119 mm |
| Package weight | 1.66 kg |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 5 - 40 °C |
| Operating relative humidity (H-H) | 20 - 85% |
Other features
| Specification | Value |
|---|---|
| Network ready | No |
| Dimensions (WxDxH) | 319 x 76 x 54 mm |
Technical details
| Specification | Value |
|---|---|
| Pallet type | 800 x 1200 mm |
Logistics data
| Specification | Value |
|---|---|
| Products per pallet | 3 pc(s) |
| Layers per pallet | 1 pc(s) |
| Master (outer) cases per pallet | 1 pc(s) |
| Master (outer) cases per pallet layer | 1 pc(s) |
| Pallet gross height | 1.5 cm |
| Pallet gross weight | 23.4 kg |
