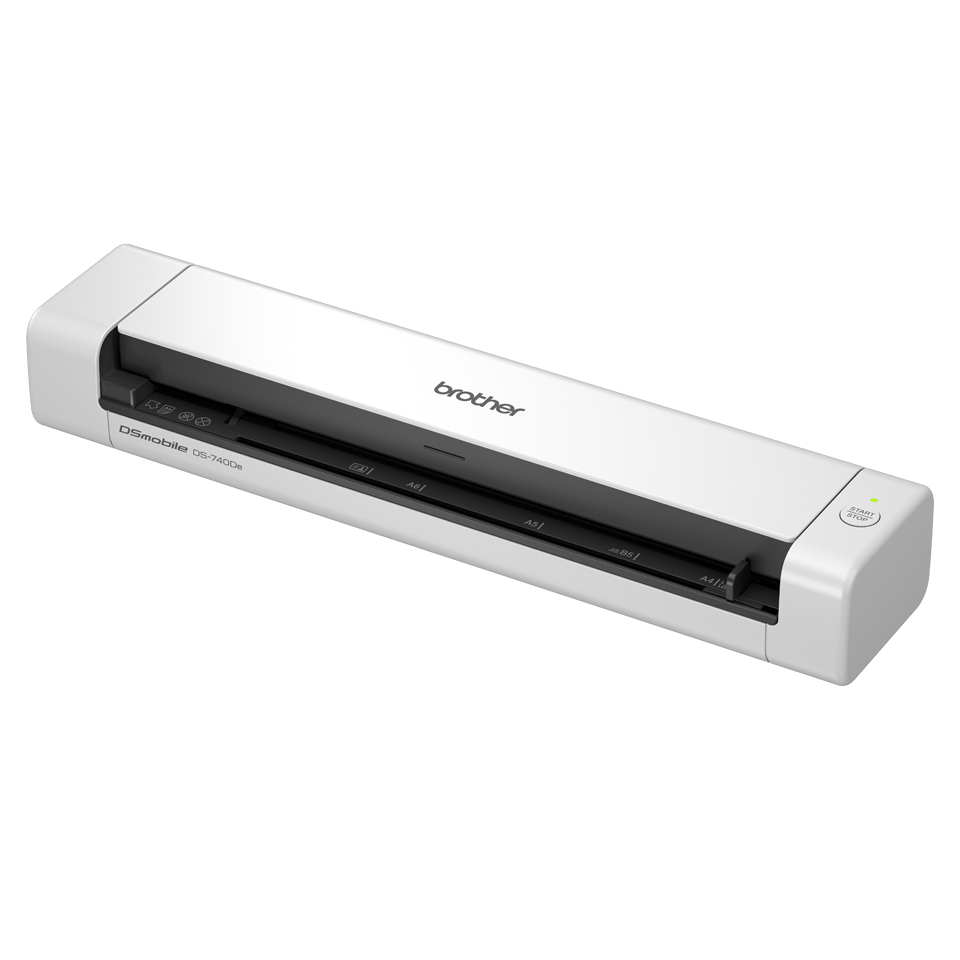

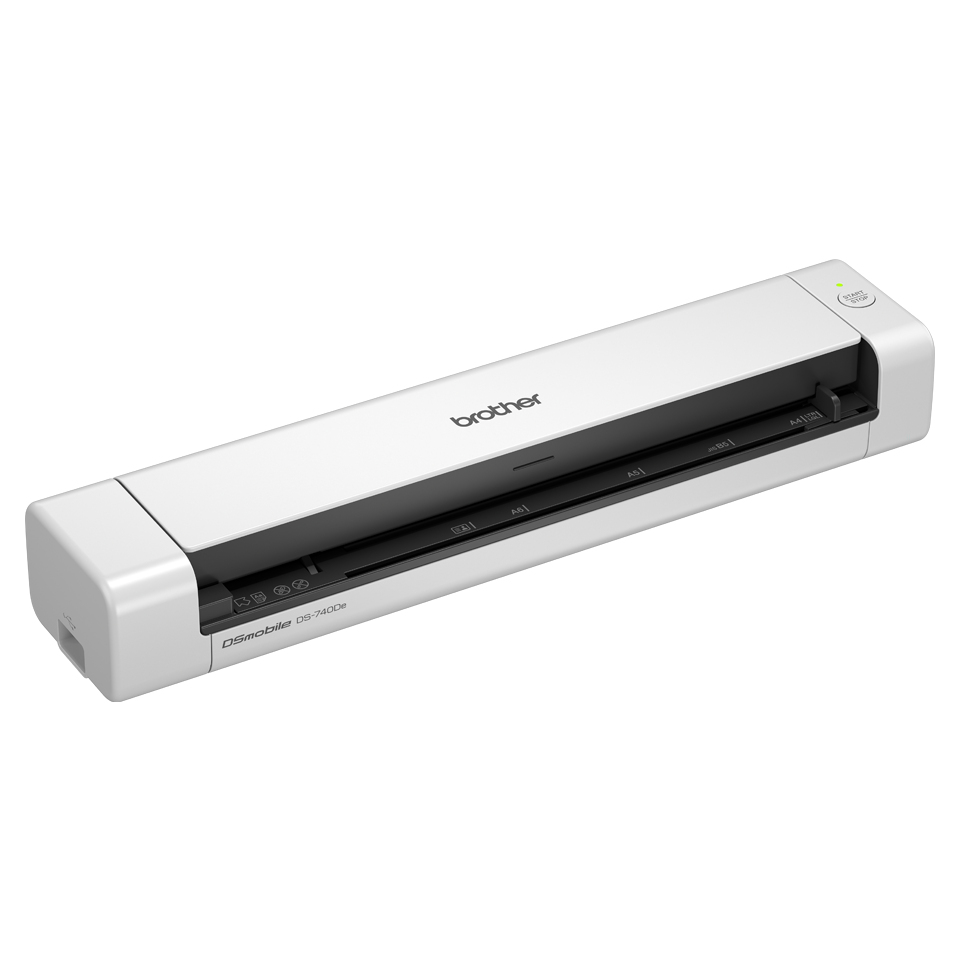

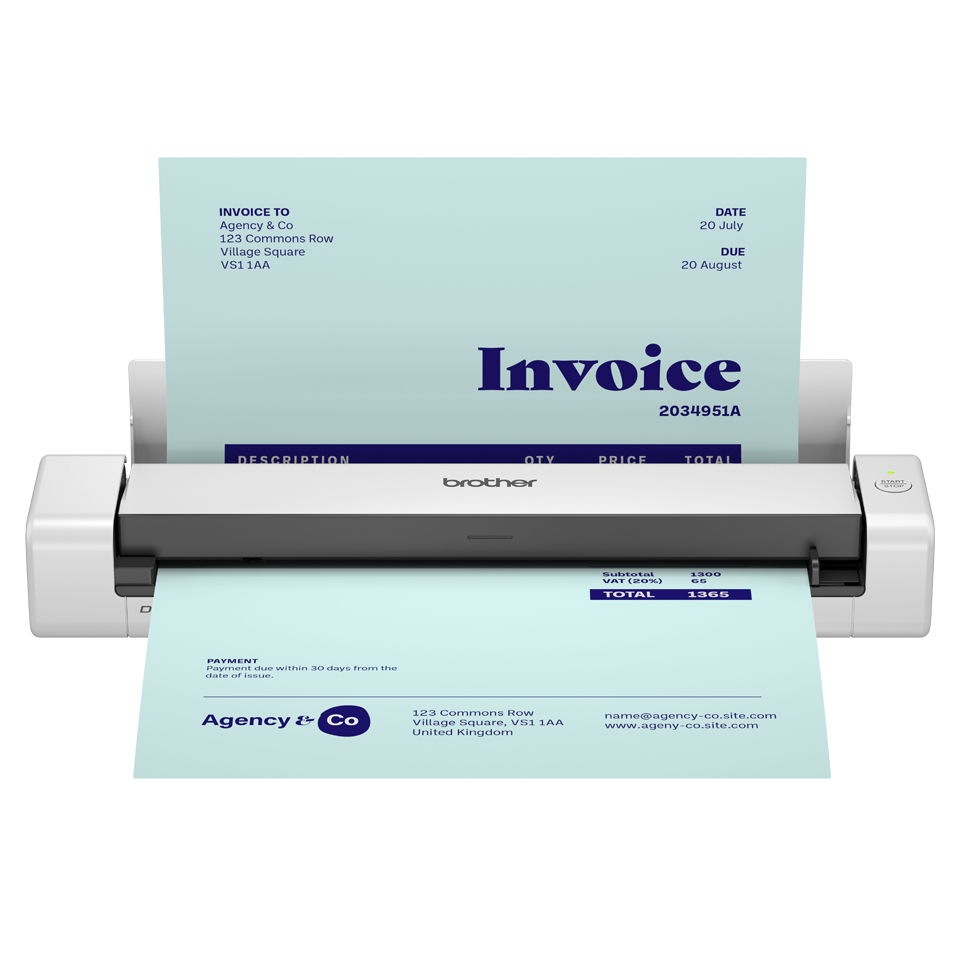

DS-740DE scanner Sheet-fed scanner
600 x 600 DPI A4 Black, White
Model DS-740DEEAN 4977766849784
59 specifications
- Memory256 MB
- Weight637 g
- ColourBlack, White
- Maximum scan size215.9 x 1828.8 mm
- Scanner typeSheet-fed scanner
- Scan file formatsPDF, TIFF, JPG
Overview
- Memory
- 256 MB
- Weight
- 637 g
- Colour
- Black, White
- Maximum scan size
- 215.9 x 1828.8 mm
- Scanner type
- Sheet-fed scanner
- Scan file formats
- PDF, TIFF, JPG
- Brand
- Brother
- Category
- Scanner
- Model
- DS-740DE
- Part numbers
- DS-740DE, DS740DETJ1
- EAN / UPC
- 4977766849784
- Also known as
- Brother DS-740DE scanner Sheet-fed scanner 600 x 600 DPI A4 Black, White
Specifications
59 specifications in 14 groups
Scanning
| Specification | Value |
|---|---|
| Maximum scan size | 215.9 x 1828.8 mm |
| Enhanced scan resolution | 1200 x 1200 DPI |
| Optical scanning resolution | 600 x 600 DPI |
| Colour scanning | Yes |
| Duplex scanning | Yes |
| Input colour depth | 48 bit |
| Output colour depth | 24 bit |
| Greyscale levels | 256 |
| Black/white scanning colour modes | Grayscale, Monochrome |
Design
| Specification | Value |
|---|---|
| Scanner type | Sheet-fed scanner |
| Built-in display | No |
| Product colour | Black, White |
Performance
| Specification | Value |
|---|---|
| Scan file formats | PDF, TIFF, JPG |
| Scan to | E-mail, File |
| Scan drivers | ICA, SANE, TWAIN, WIA |
| Scanning noise level | 53 dB |
| Internal memory | 256 MB |
Input capacity
| Specification | Value |
|---|---|
| Standard input capacity | 1 sheets |
Paper handling
| Specification | Value |
|---|---|
| Maximum ISO A-series paper size | A4 |
| Scanning media types supported | Business Card, Plain paper, Plastic Card, Photo paper |
| Card thickness (max) | 1.24 mm |
| Maximum scan width | 21.6 cm |
| Maximum scan length | 182.9 cm |
Ports & interfaces
| Specification | Value |
|---|---|
| USB port | Yes |
| USB version | 3.2 Gen 1 (3.1 Gen 1) |
| USB connector type | USB Type-C |
| Standard interfaces | USB 3.2 Gen 1 (3.1 Gen 1) |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 3.3 W |
| Power supply type | USB |
| Power consumption (standby) | 1.4 W |
| Power consumption (off) | 0.01 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 301 mm |
| Depth | 45.3 mm |
| Height | 63 mm |
| Weight | 637 g |
Packaging data
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
| Package width | 377 mm |
| Package depth | 162 mm |
| Package height | 76 mm |
| Package weight | 1.03 kg |
Packaging content
| Specification | Value |
|---|---|
| Warranty card | Yes |
| Cables included | Micro-USB |
| Quick start guide | Yes |
System requirements
| Specification | Value |
|---|---|
| Linux operating systems supported | Yes |
| Mac operating systems supported | Yes |
| Windows operating systems supported | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 5 - 35 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage relative humidity (H-H) | 10 - 90% |
Technical details
| Specification | Value |
|---|---|
| Pallet type | 800 x 1200 mm |
Logistics data
| Specification | Value |
|---|---|
| Products per pallet | 240 pc(s) |
| Country of origin | China |
| Harmonized System (HS) code | 84716070 |
| Layers per pallet | 8 pc(s) |
| Master (outer) cases per pallet | 80 pc(s) |
| Master (outer) cases per pallet layer | 10 pc(s) |
| Pallet gross height | 16.7 cm |
| Pallet gross weight | 286 kg |
